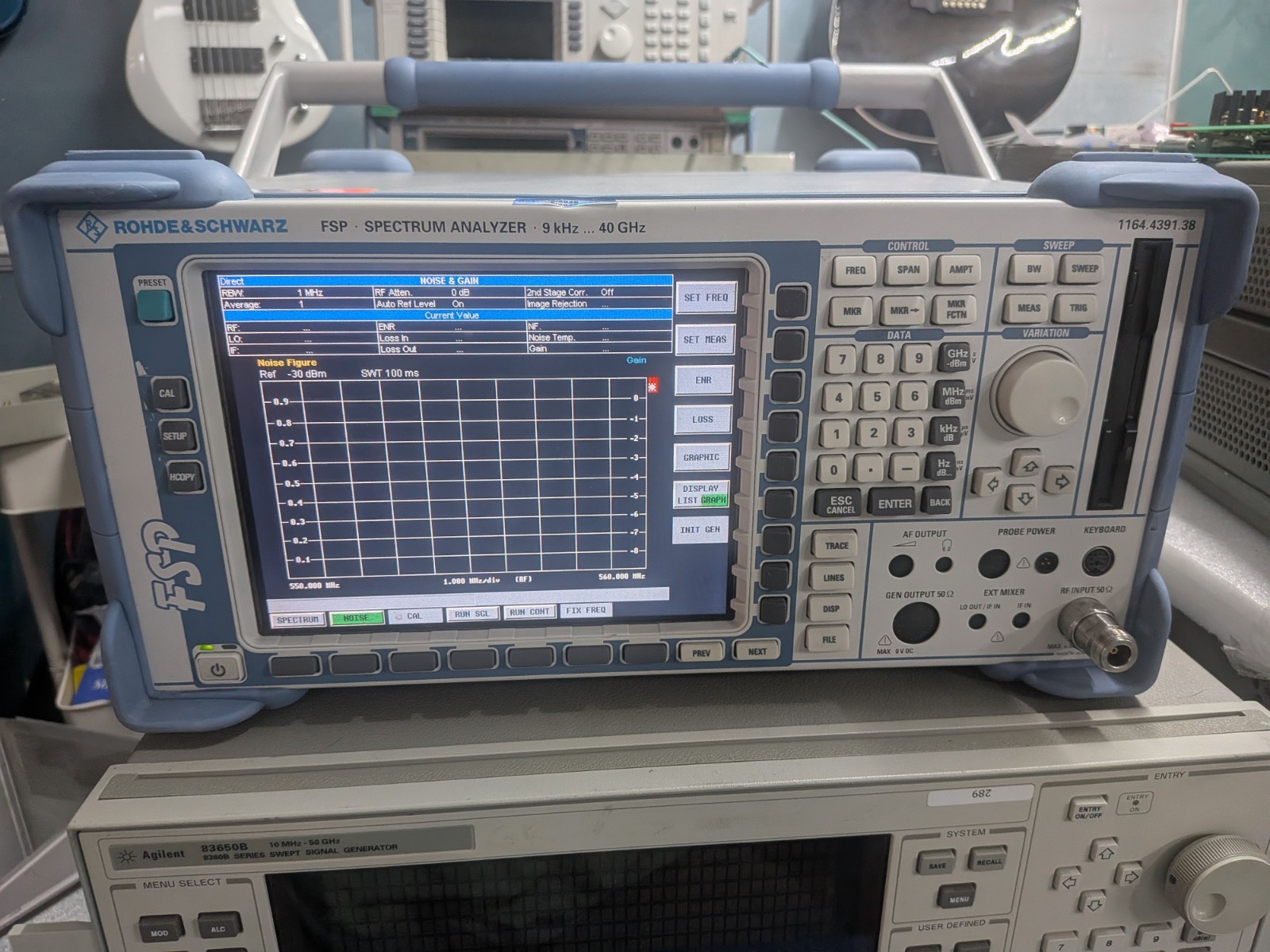

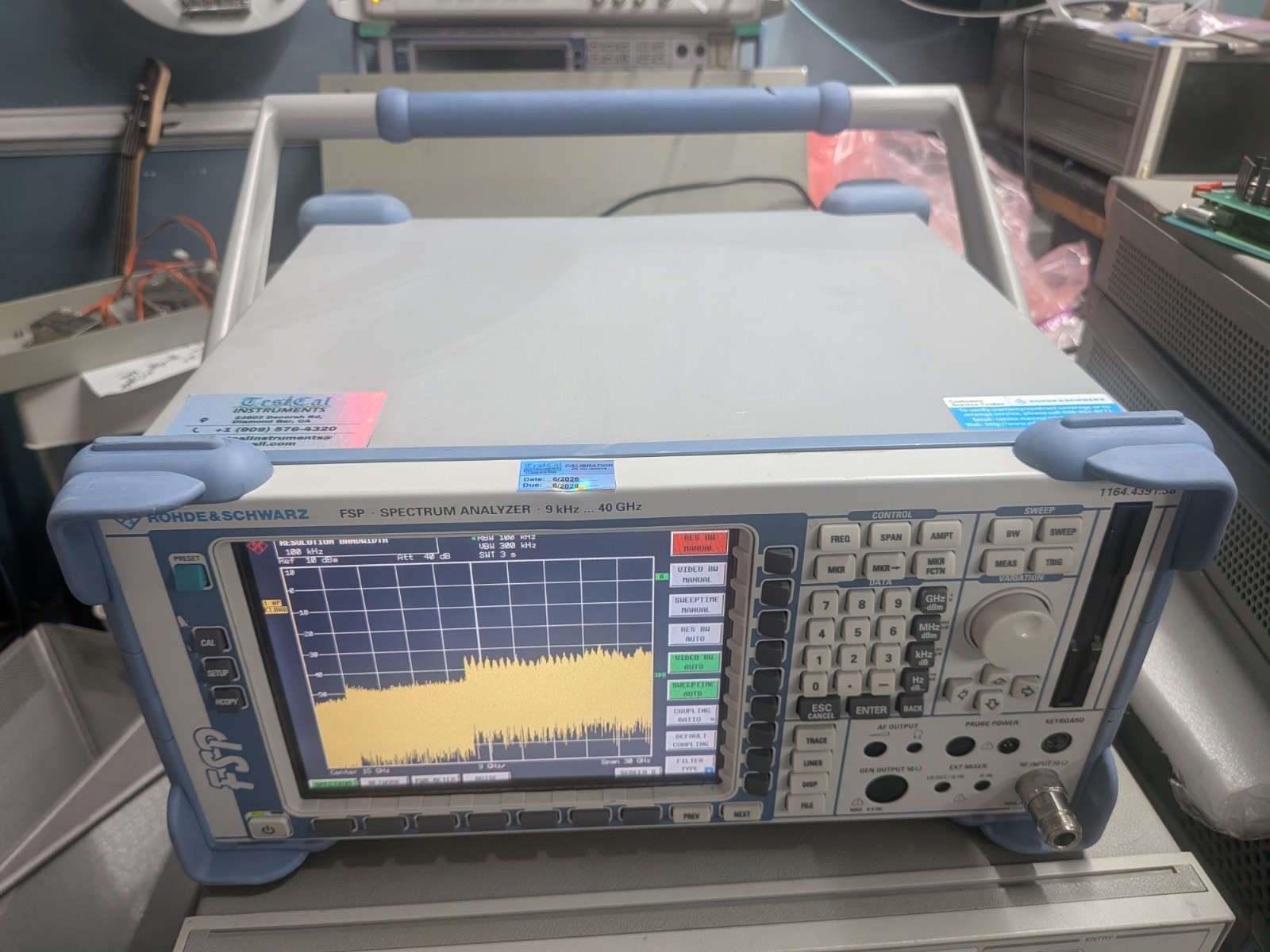

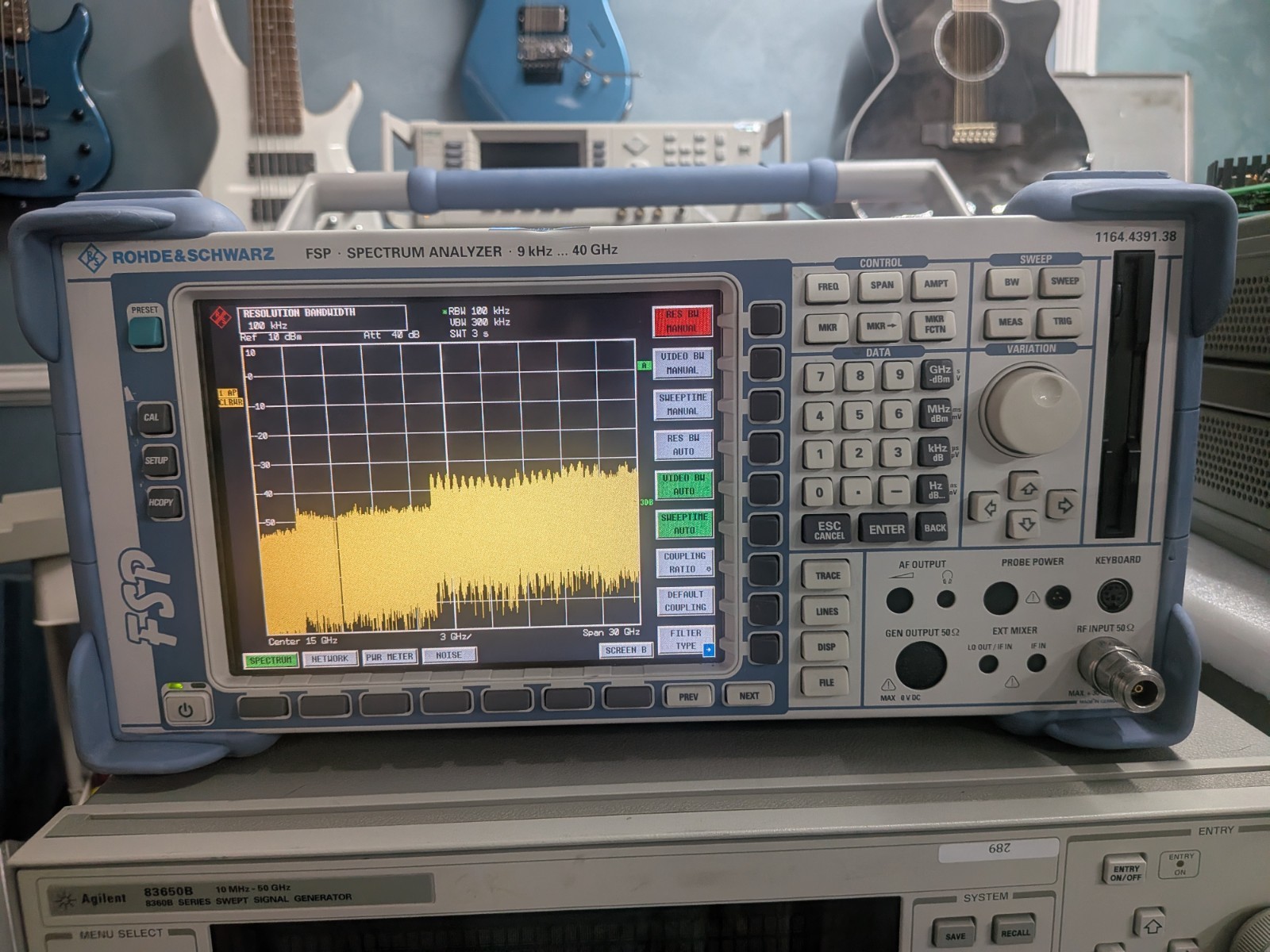

Rohde & Schwarz FSP38

9 kHz – 40 GHz · RBW 10 Hz – 10 MHz (FFT 1 Hz) · DANL typ. −143 dBm · Calibrated

Used, calibrated
9 kHz – 40 GHz
8 options installed
30-day warranty

$9,500

● In stock · ships from Diamond Bar, California

Frequency9 kHz – 40 GHz

CalibrationNIST-traceable

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships
ⓘ Photos may not show this exact unit yet. Ask us for current photos.
✓ Packed with care, insured and tracked

Overview

Rohde & Schwarz FSP38 spectrum analyzer covering 9 kHz to 40 GHz, fitted with audio demodulator, noise figure, phase noise, analog demodulation and other options. Sold calibrated with a 30-day warranty.

Installed options

B3 Audio Demodulator: Lets you listen to AM and FM demodulated signals through the built-in speaker or headphones.
B10 External Generator Control: Controls an external generator so you can make scalar network measurements.
K9 Power Sensor Support: Lets you connect an R&S power sensor and use the FSP as a power meter.

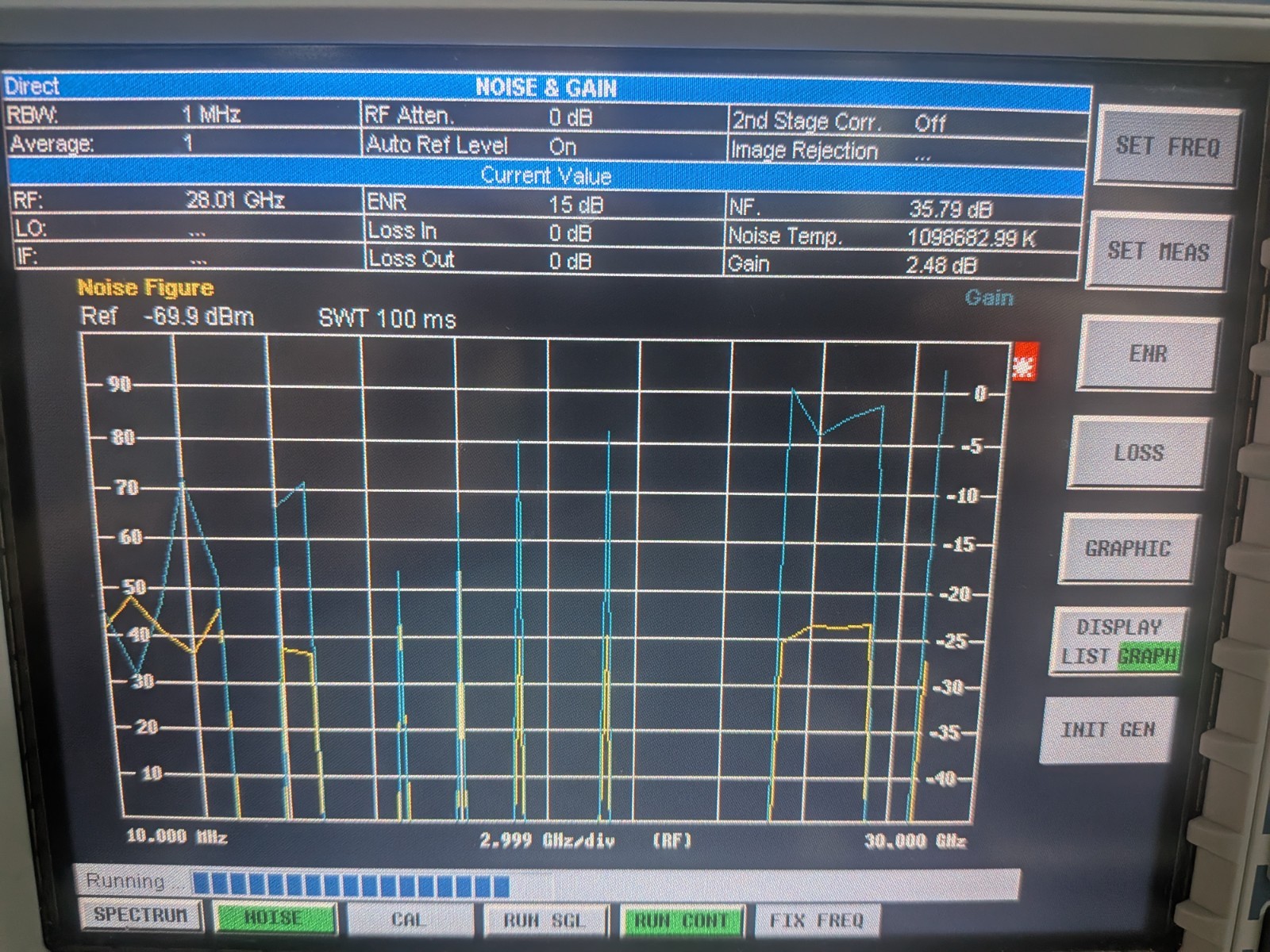

K30 Noise Figure Measurement: Measures noise figure and gain of a device using a noise source.
K40 Phase Noise Measurement: Runs automatic phase noise measurements on a signal.
K7 Analog Demodulation: Measures and displays AM, FM and phase modulated signals.
K5 GSM/EDGE Measurements: Adds a measurement personality for testing GSM/EDGE signals.
K8 Bluetooth Measurements: Adds a measurement personality for testing Bluetooth signals.

Key specifications

Manufacturer	Rohde & Schwarz
Model	FSP38
Frequency range	9 kHz to 40 GHz

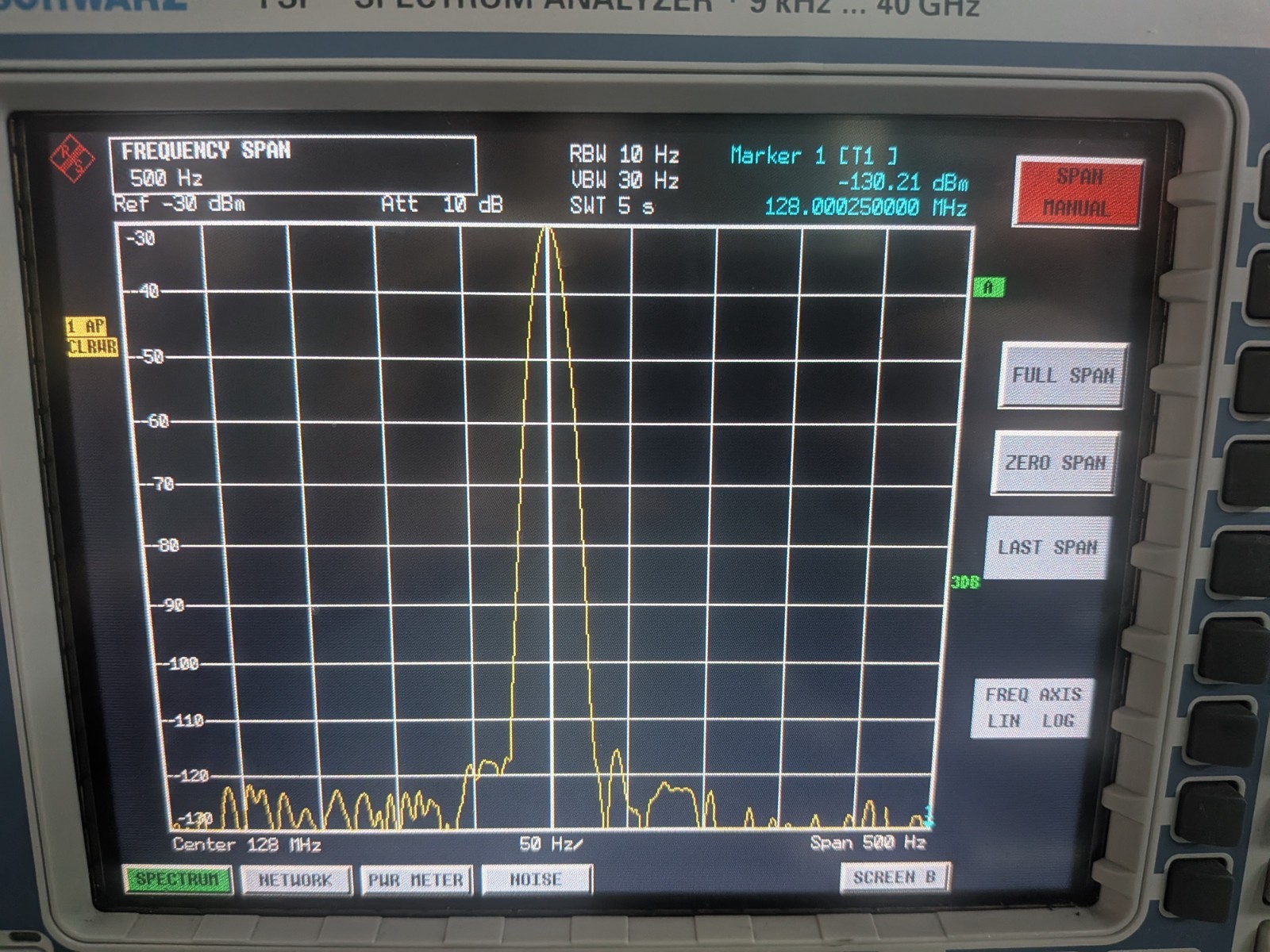

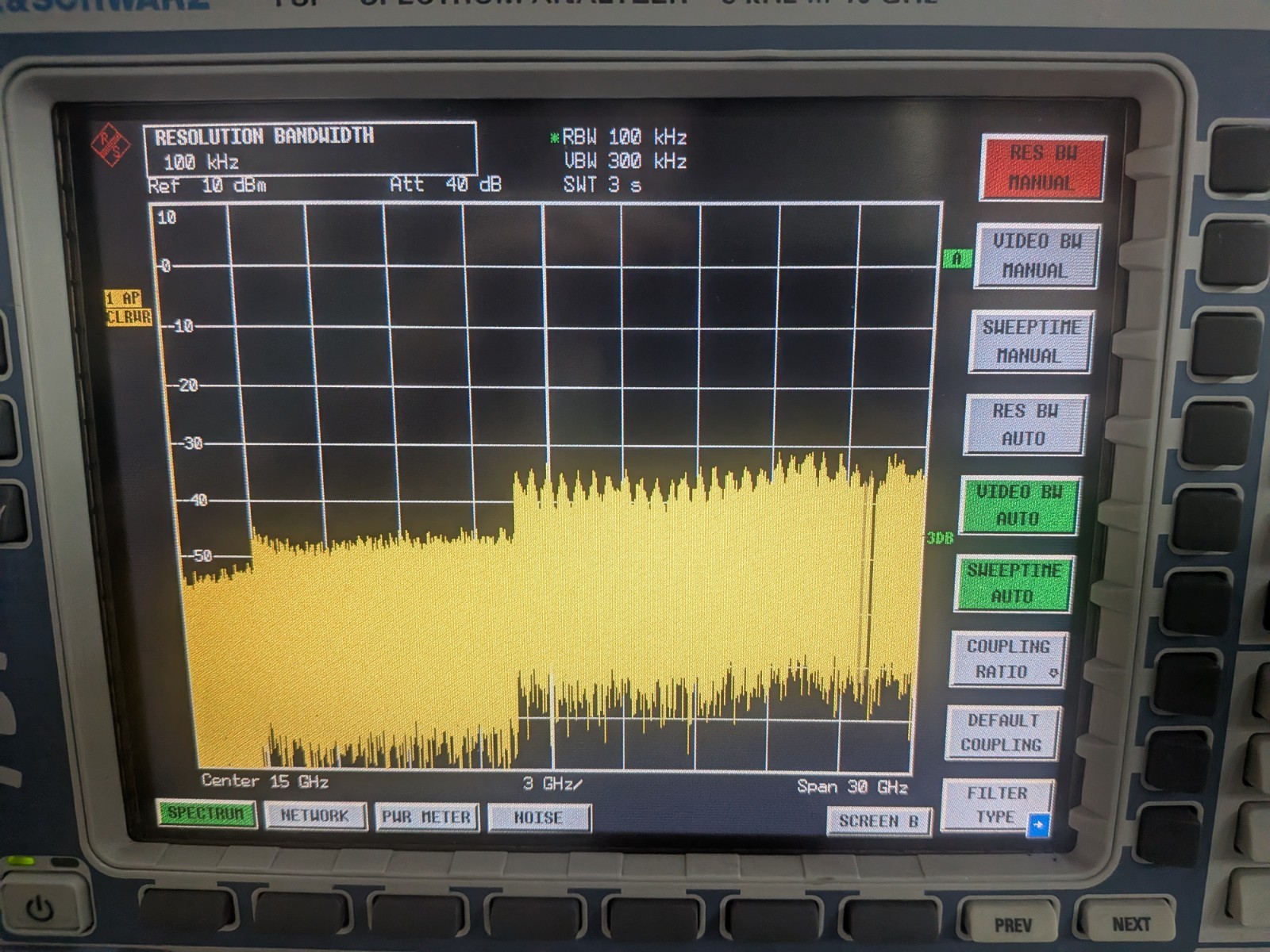

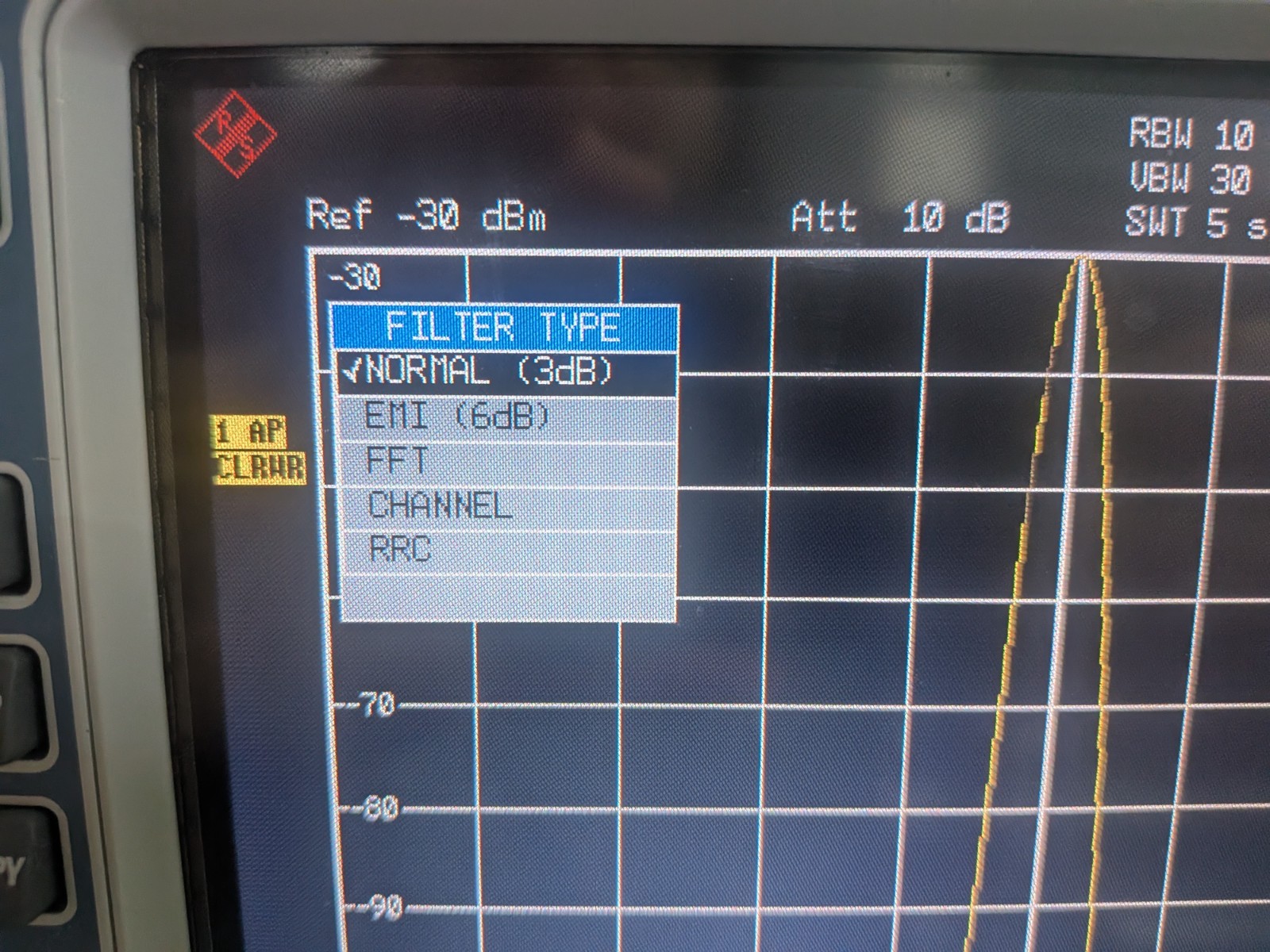

Resolution bandwidth	10 Hz to 10 MHz (−3 dB), 1-3 steps; FFT filters 1 Hz to 30 kHz
Displayed average noise level	Typ. −143 dBm (10 MHz to 7 GHz); typ. −100 dBm (26.5 to 40 GHz); 0 dB attenuation, RBW 100 Hz, VBW 1 Hz
SSB phase noise (f ≤ 500 MHz)	<−106 dBc (1 Hz) at 10 kHz offset; <−120 dBc (1 Hz) at 1 MHz offset
Input attenuator	0 to 70 dB in 10 dB steps
Display	8.4 in TFT color, 640 × 480 pixels

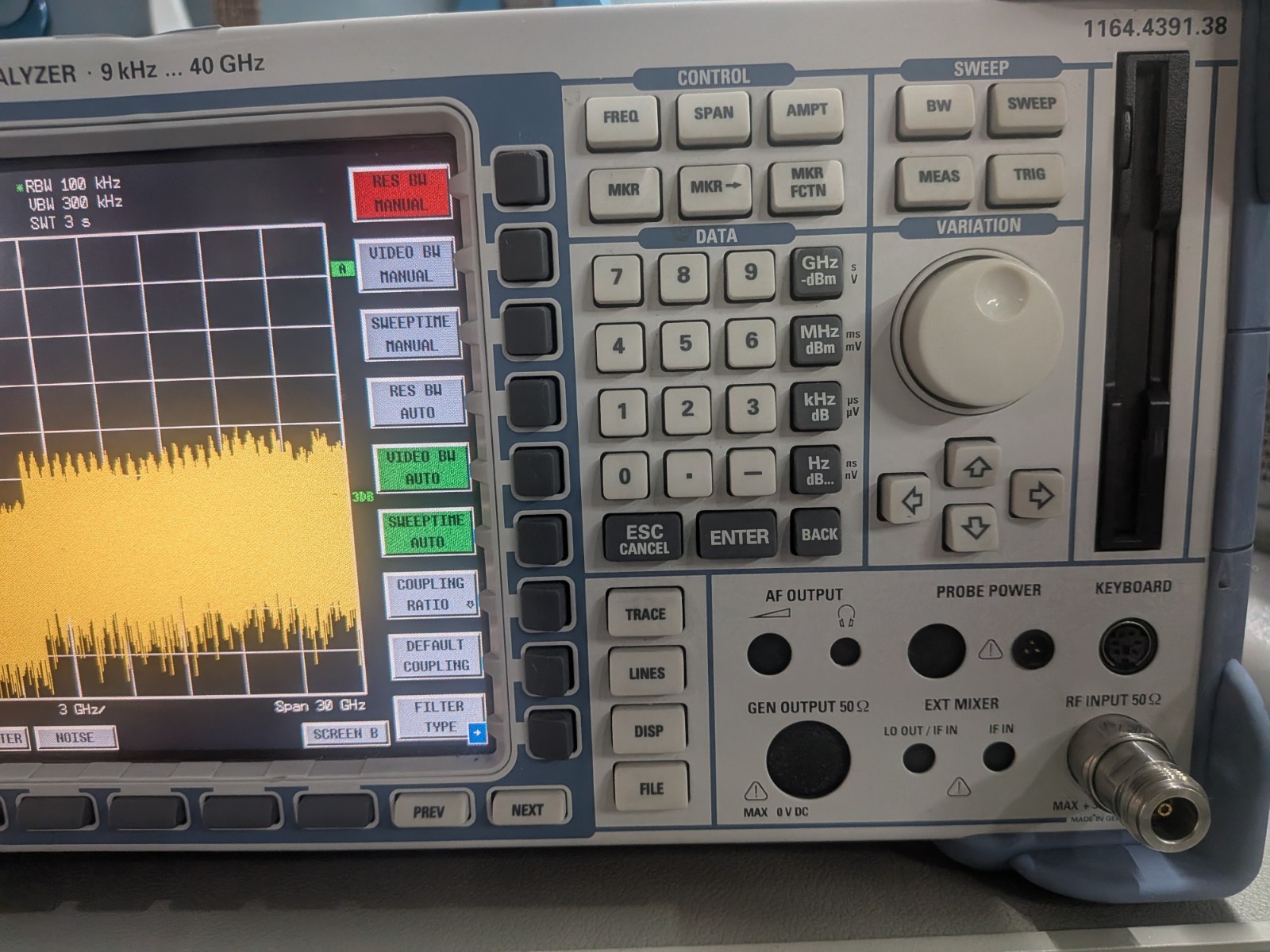

Remote control and interfaces	IEEE 488.2 (SCPI 1997.0), RS-232-C, parallel printer, VGA monitor output
Dimensions (W × H × D)	412 × 197 × 417 mm
Weight (without options)	14 kg
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-98773
