Agilent N9010A EXA

10 Hz – 26.5 GHz · Full preamp · 2-yr NIST calibration · 500 GB SSD

NIST calibrated, 2-yr cert
10 Hz – 26.5 GHz
Full preamp
30-day warranty

$10,999

● In stock · ships from Diamond Bar, California

Frequency10 Hz – 26.5 GHz

CalibrationFresh NIST calibration

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships

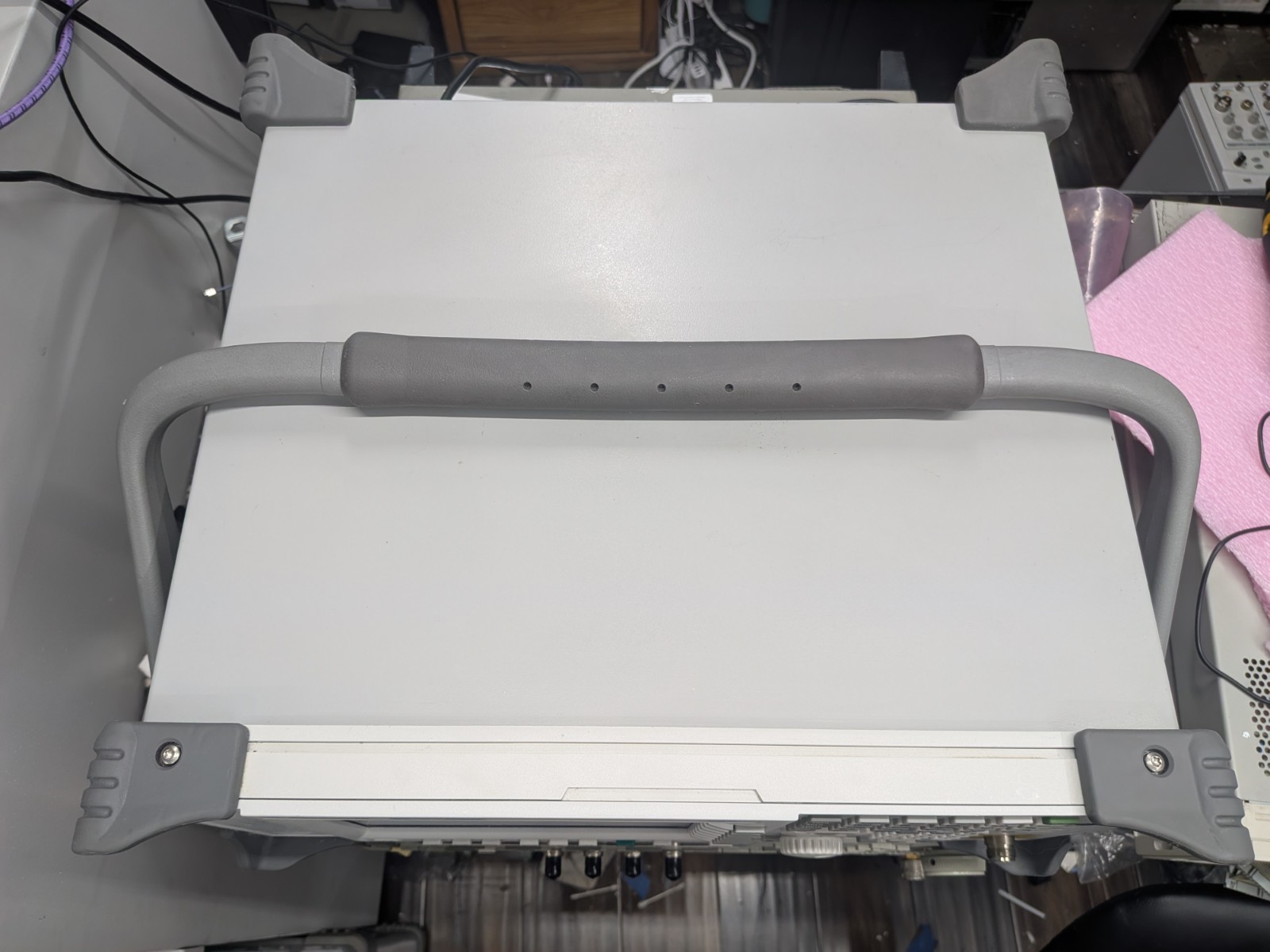

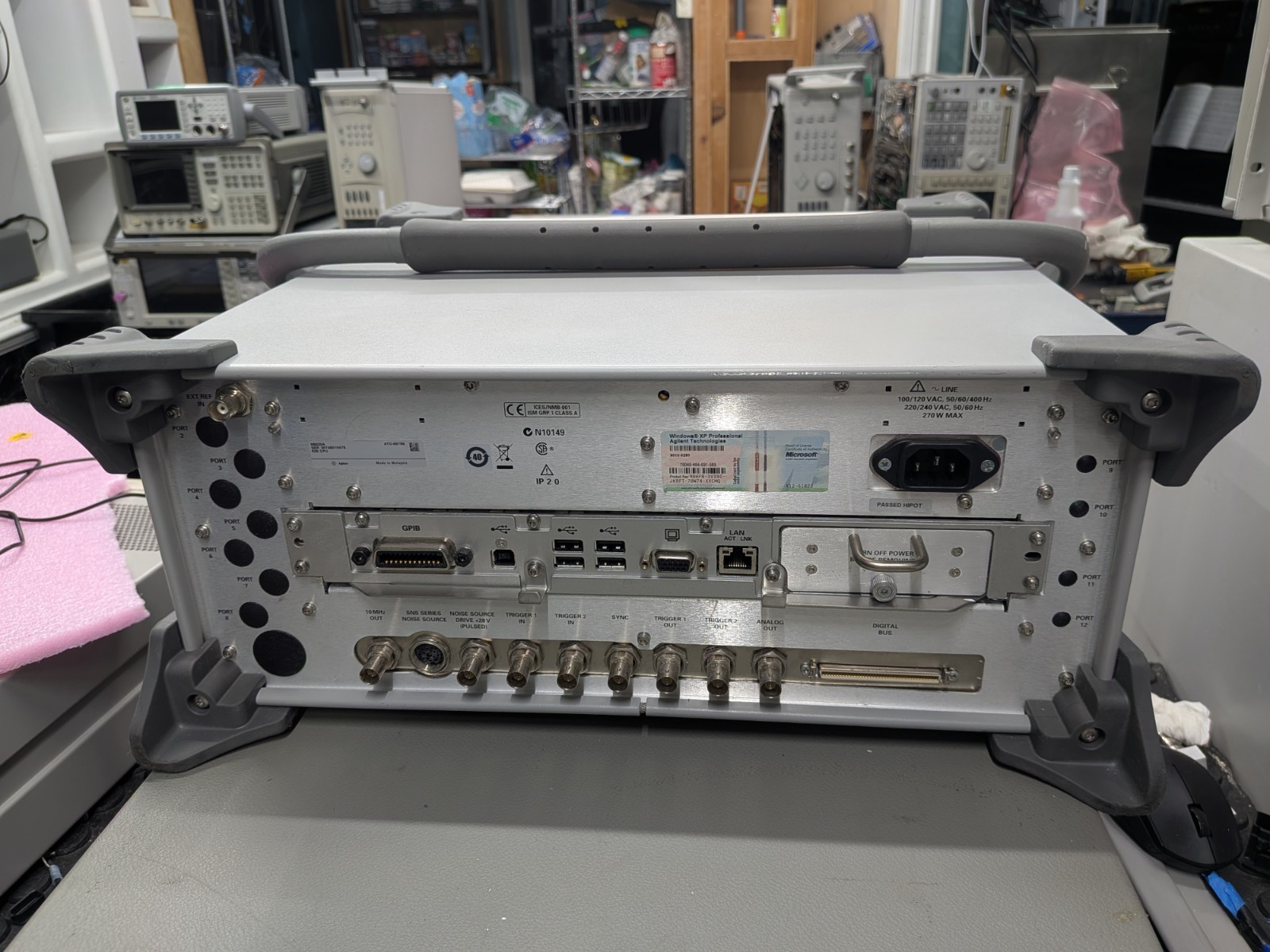

✓ Photos are of this exact unit
✓ Packed with care, insured and tracked

Overview

Agilent N9010A EXA X-Series signal analyzer covering 10 Hz to 26.5 GHz with Option P26 preamplifier, listed as used and calibrated. This unit comes with a 2-year NIST calibration and a 500 GB SSD.

Installed options

526 Frequency range 10 Hz to 26.5 GHz: Extends the analyzer's frequency coverage up to 26.5 GHz.
P26 Preamplifier, 100 kHz to 26.5 GHz: Lowers the displayed noise floor so small signals are easier to see across the band.
EA3 Electronic attenuator, 10 Hz to 3.6 GHz: Adjusts input attenuation electronically in 1 dB steps, with no mechanical switch wear at low frequencies (stated by seller).
PFR Precision frequency reference: Provides a more stable timebase for better frequency accuracy.
N9068A Phase noise measurement application: Measures the phase noise of a signal source directly on the analyzer (stated by seller).
N9069A Noise figure measurement application: Measures noise figure and gain of amplifiers and other devices (stated by seller).
89601 89601 vector signal analysis software: Adds vector signal analysis and flexible digital demodulation of many signal formats (stated by seller).

Key specifications

Manufacturer	Agilent
Model	N9010A EXA
Frequency range	10 Hz – 26.5 GHz
Frequency range (Option 526)	10 Hz to 26.5 GHz (DC coupled); 10 MHz to 26.5 GHz (AC coupled)
Preamplifier (Option P26)	100 kHz to 26.5 GHz
Resolution bandwidth	1 Hz to 3 MHz (10 % steps), 4, 5, 6, 8 MHz
Analysis bandwidth	10 MHz standard; 25 MHz with Option B25 (standard)
Displayed average noise level, preamp on	–161 dBm (10 MHz to 2.1 GHz); –150 dBm (20 to 26.5 GHz)
Input attenuator	0 to 60 dB in 10 dB steps
Electronic attenuator (Option EA3)	10 Hz to 3.6 GHz, 0 to 24 dB in 1 dB steps
Display	1024 x 768, XGA
Operating temperature	0 to 55 °C
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-97934
