Agilent E7405A EMC Analyzer

9 kHz – 26.5 GHz · CISPR EMC bandwidths · Quasi-peak · GPIB

Calibrated, 2-yr cert
Quasi-peak EMC
Preamp installed
30-day warranty

$5,250

● In stock · ships from Diamond Bar, California

Frequency9 kHz – 26.5 GHz

CalibrationFresh NIST-traceable calibration

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships

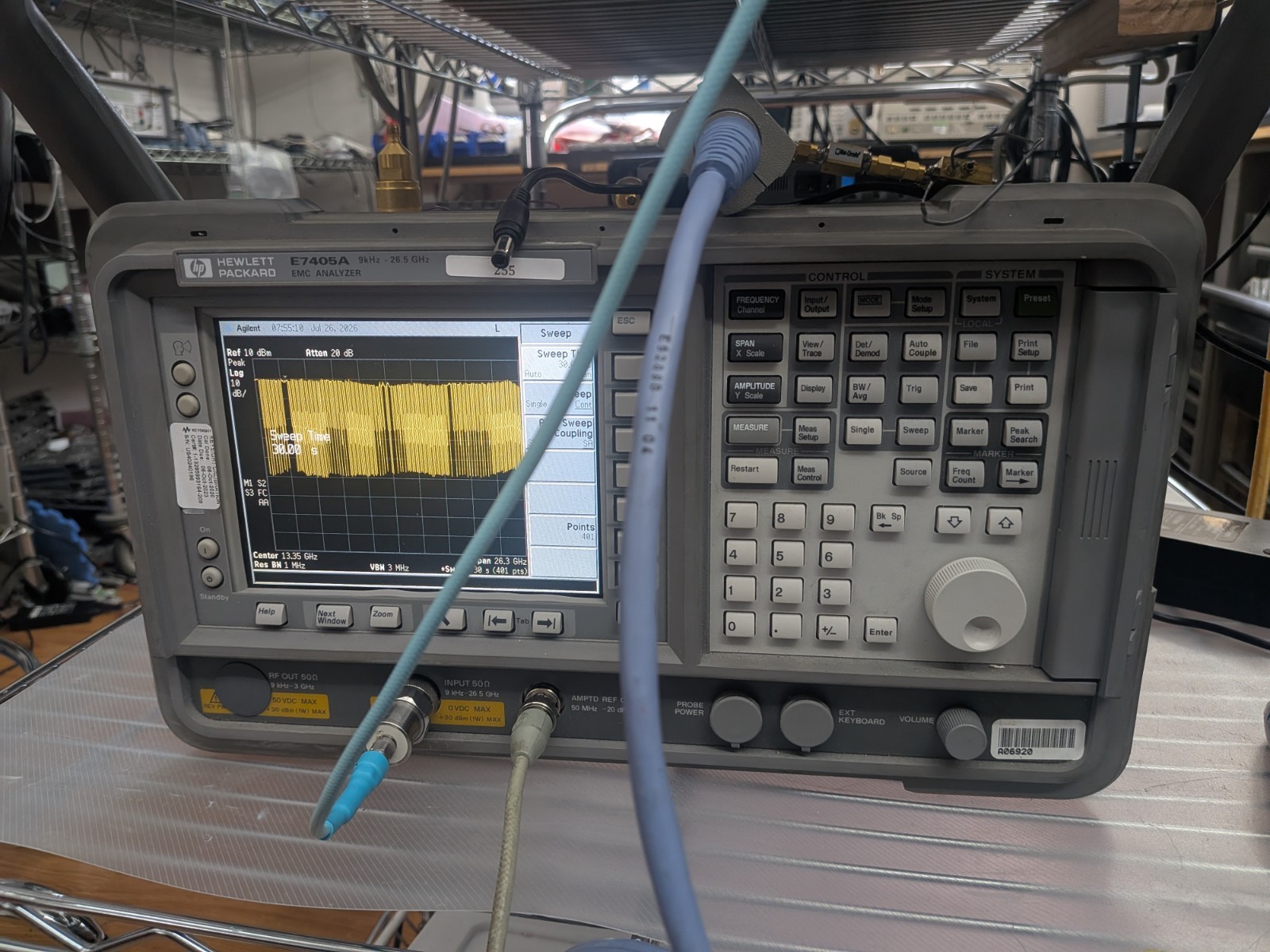

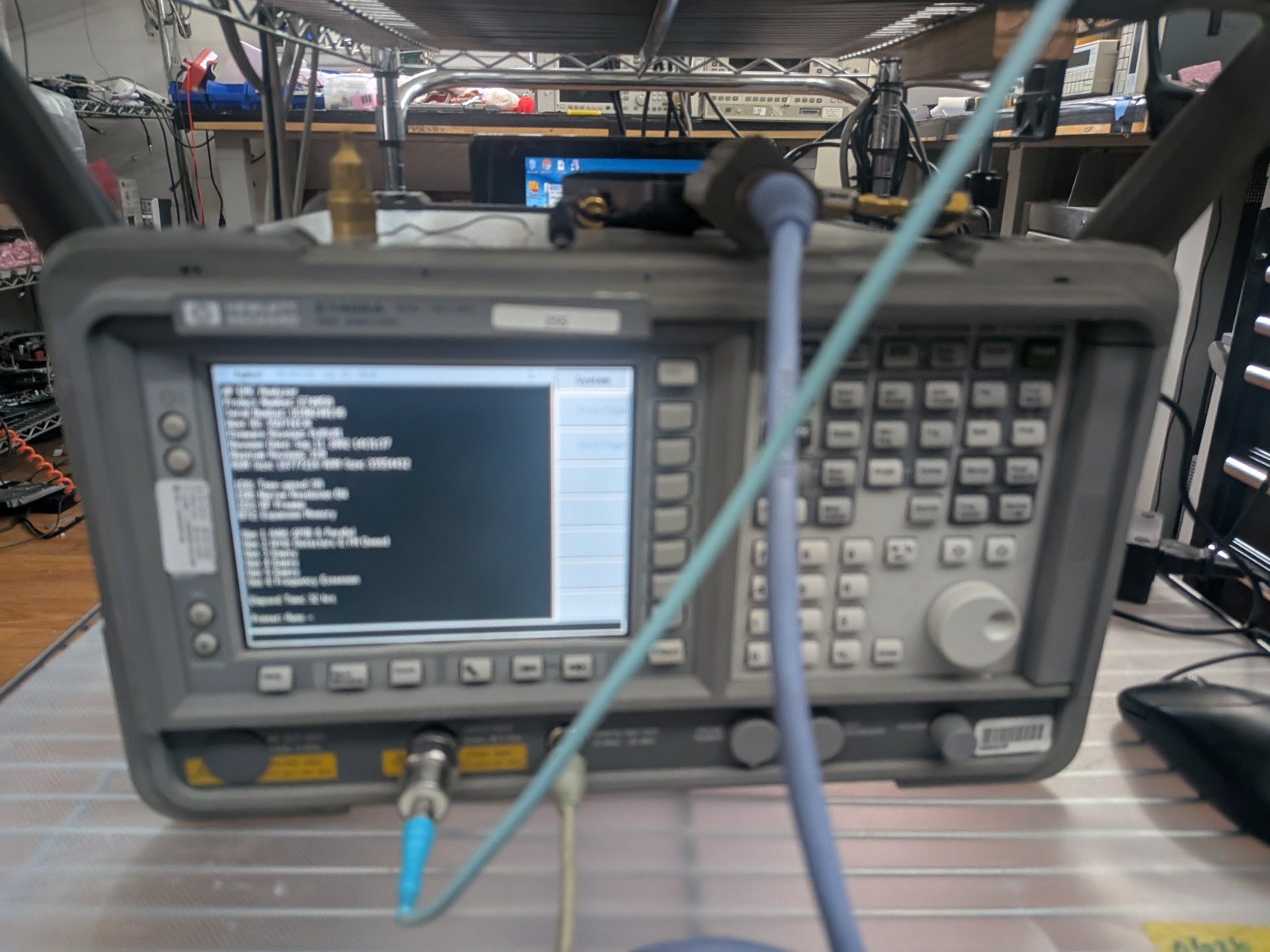

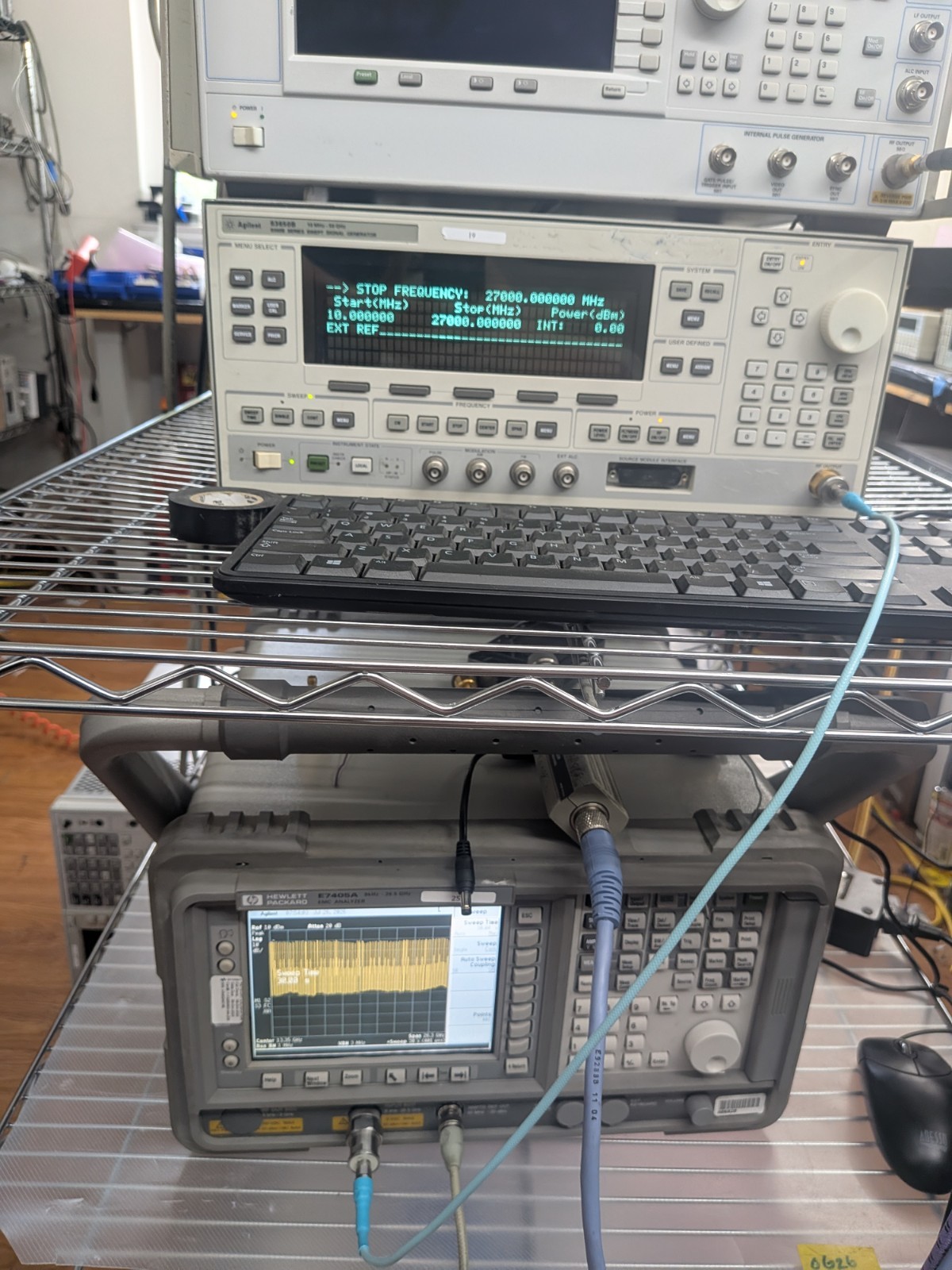

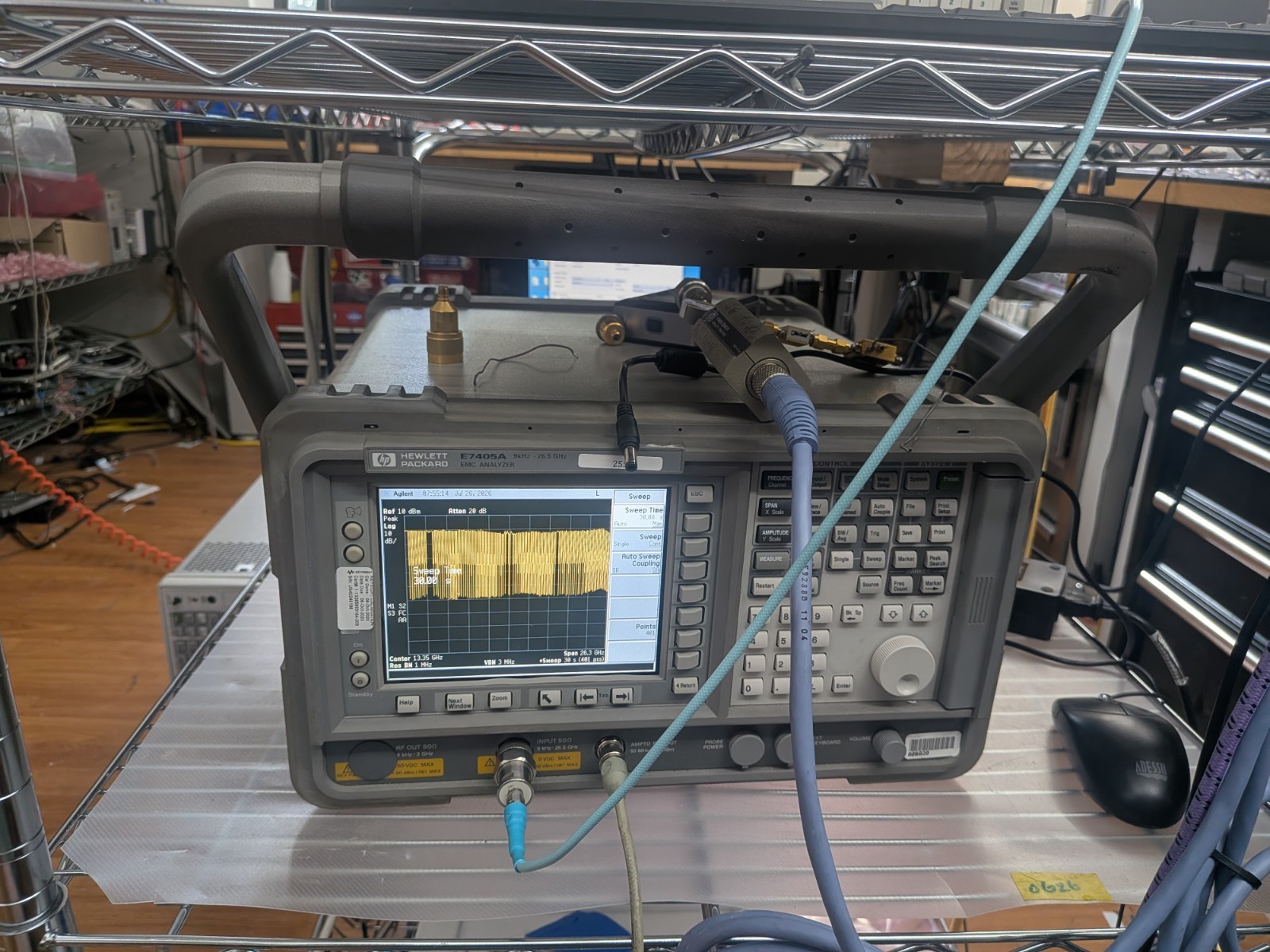

✓ Photos are of this exact unit
✓ Packed with care, insured and tracked

Overview

Agilent E7405A EMC analyzer: a 26.5 GHz ESA spectrum analyzer with EMC bandwidths and quasi-peak detection for pre-compliance testing. This unit is calibrated and has the preamplifier, high-stability reference, GPIB interface and fast time-domain sweep options installed.

Installed options

1D5 High Stability Frequency Reference: Oven-controlled 10 MHz timebase for better frequency accuracy and close-in phase noise.
1DS Preamplifier: Built-in preamplifier that lowers the noise floor so weak signals are easier to see.
A4H GPIB and Parallel Interface: Lets you control the analyzer remotely over GPIB and adds a parallel printer port.
AYX Fast Time-domain Sweep: Gives very fast zero-span sweeps for looking at pulsed and burst signals.
UKB Low Frequency Extension: Extends the bottom of the frequency range for low-frequency measurements.

Key specifications

Manufacturer	Agilent
Model	E7405A EMC Analyzer
Frequency range	9 kHz to 26.5 GHz
EMI bandwidths (–6 dB)	200 Hz, 9 kHz, 120 kHz, 1 MHz
Impulse EMI bandwidth	1 MHz
Resolution bandwidth (–3 dB)	10 Hz to 3 MHz in 1-3-10 sequence, plus 5 MHz; 1 Hz and 3 Hz added with opt 1D5
Fast time-domain sweep (opt AYX)	50 ns to 4000 s (zero span, RBW 1 kHz or more)
Sweep points	101 to 8192 (span > 0 Hz)
Display resolution	640 × 480
Operating temperature	0 to 55 °C
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-27171
