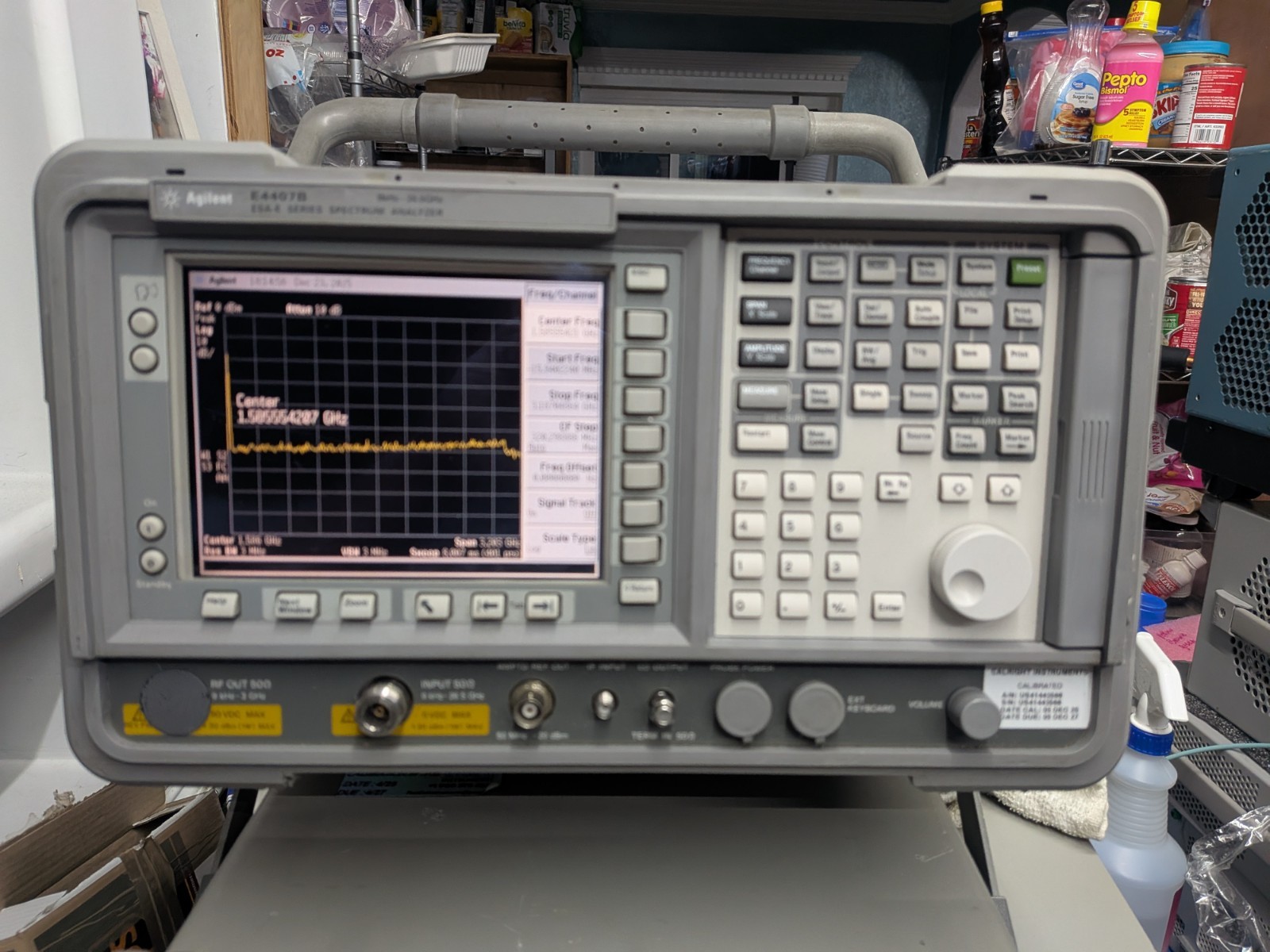

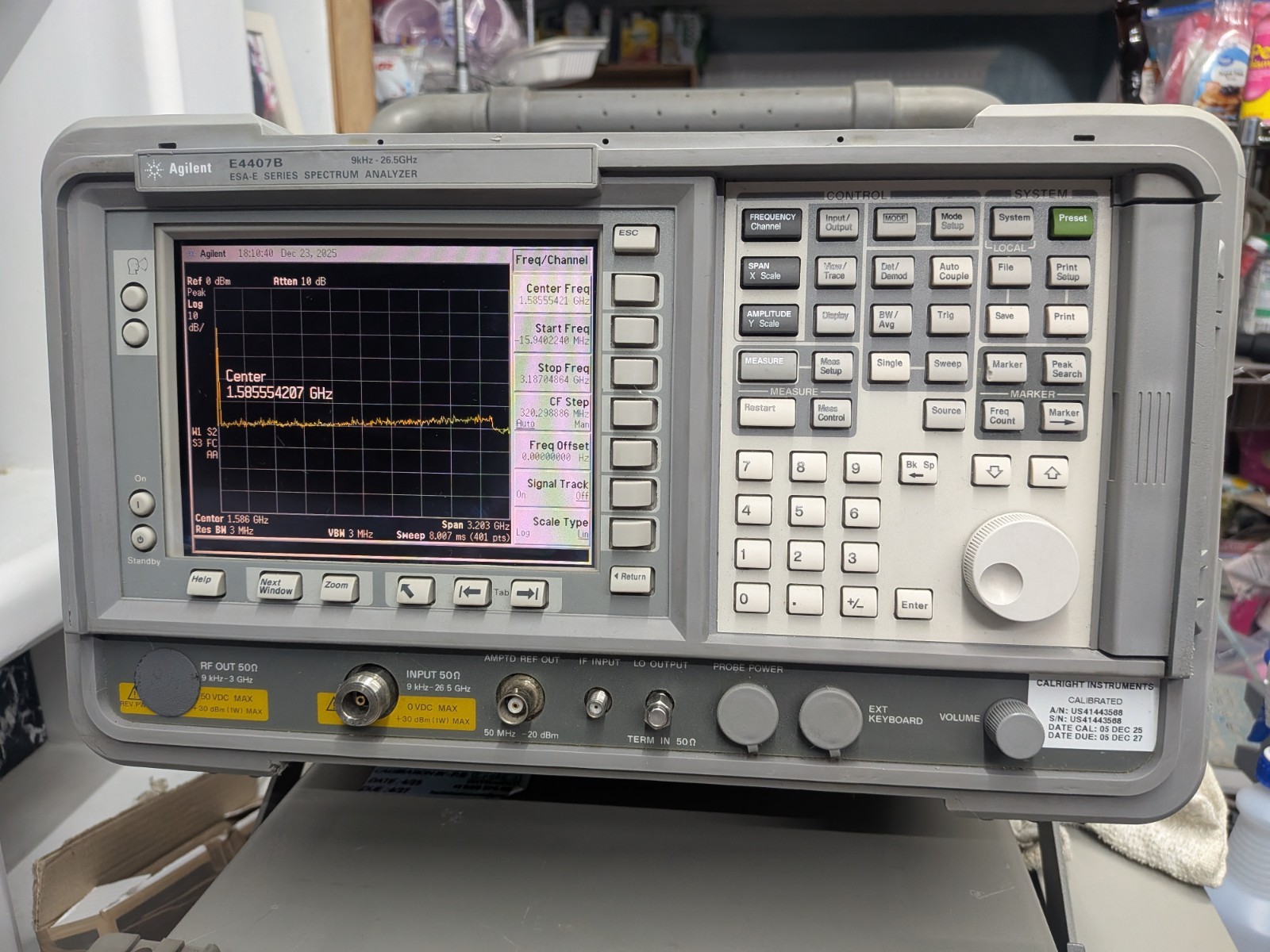

Agilent E4407B ESA-E

9 kHz – 26.5 GHz spectrum analyzer · tracking generator · phase noise

Used, calibrated
9 kHz – 26.5 GHz
Tracking generator
Phase noise

$4,950

● In stock · ships from Diamond Bar, California

Frequency9 kHz – 26.5 GHz

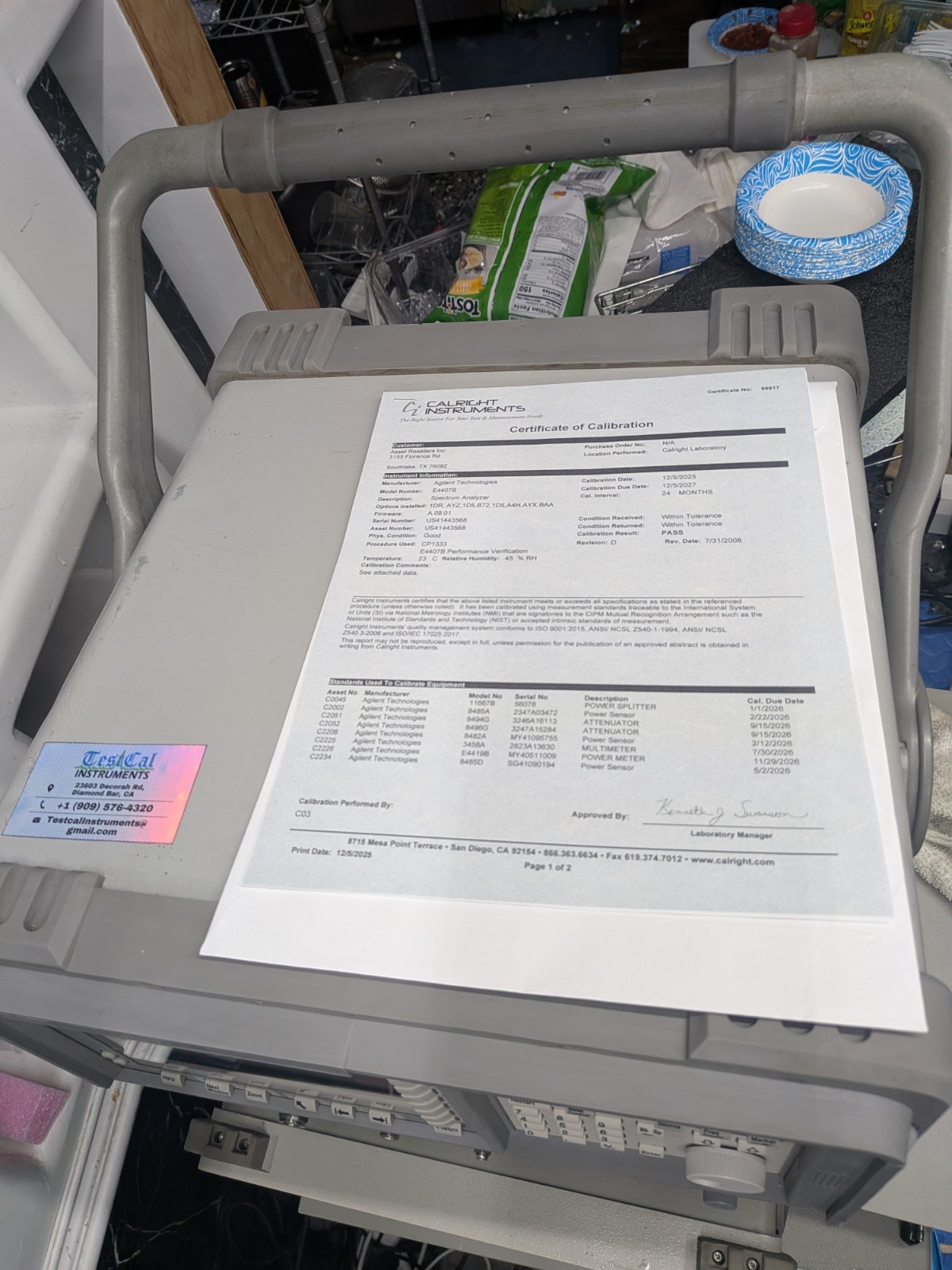

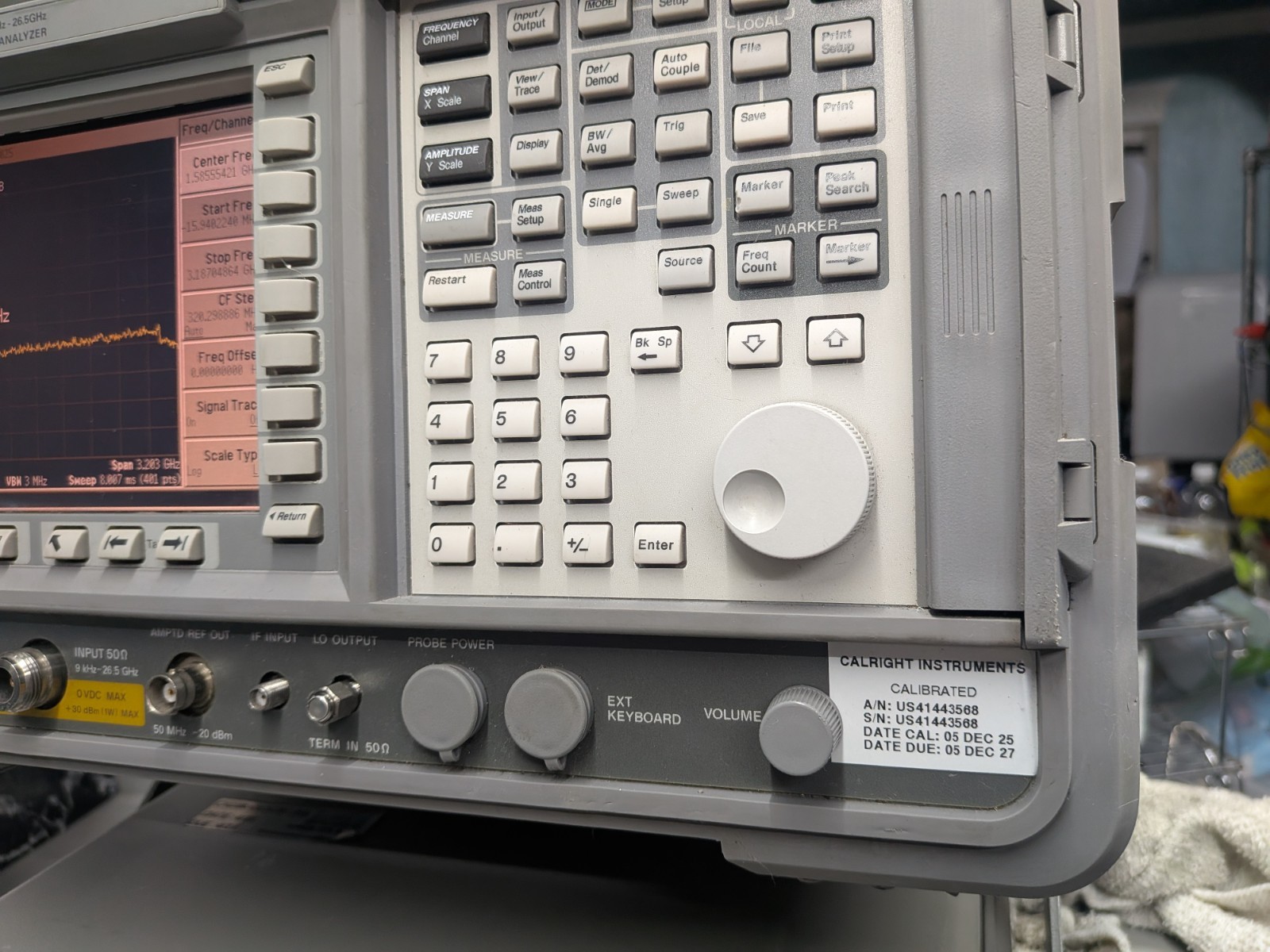

CalibrationFresh NIST-traceable calibration by a third-party lab

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships
ⓘ Photos may show a sister unit from the same batch. Ask us for photos of this exact unit.
✓ Packed with care, insured and tracked

Overview

Agilent E4407B ESA-E spectrum analyzer covering 9 kHz to 26.5 GHz, fitted with the tracking generator and phase noise application. Sold used and calibrated.

Installed options

1DN Tracking Generator: Built-in source for swept scalar network measurements.
1DS Preamplifier: Low-band preamplifier for a lower noise floor when measuring weak signals.
1D5 High Stability Frequency Reference: Improves frequency accuracy and stability over the standard internal reference.
A4H GPIB and Parallel Interface: Remote control over GPIB, plus a parallel printer port.
226 Phase Noise: Phase noise measurement application.
1DR Narrow Resolution Bandwidths: Adds narrow resolution bandwidths for separating closely spaced signals.
AYX Fast Time-domain Sweep: Faster zero-span sweeps for time-domain measurements.
BAA FM Demodulation: Demodulates and measures FM signals.

Key specifications

Manufacturer	Agilent
Model	E4407B ESA-E
Frequency range	9 kHz – 26.5 GHz
Family	Agilent ESA-E series spectrum analyzer
Tracking generator	Option 1DN installed
Phase noise	Option 226 installed
Preamplifier	Option 1DS installed
Frequency reference	High stability, option 1D5
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-59392
