Keysight N9000A CXA

9 kHz – 7.5 GHz · Preamp to 7.5 GHz · 6 GHz tracking generator · Calibrated

Used, calibrated
Preamp to 7.5 GHz
6 GHz tracking generator
Option 507

$6,995

● In stock · ships from Diamond Bar, California

Frequency9 kHz – 7.5 GHz

CalibrationFull NIST calibration

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships
✓ Photos are of this exact unit
✓ Packed with care, insured and tracked

Overview

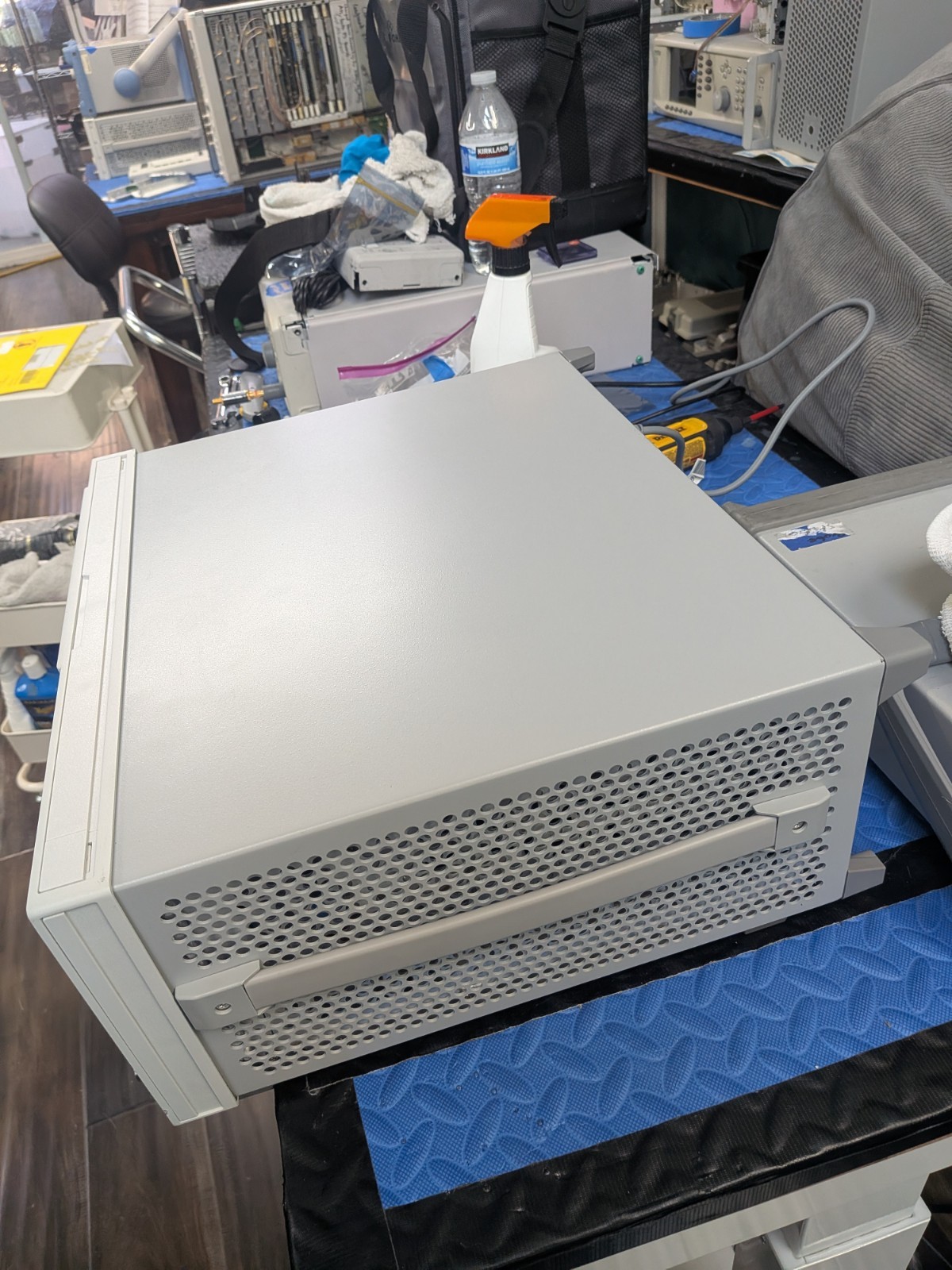

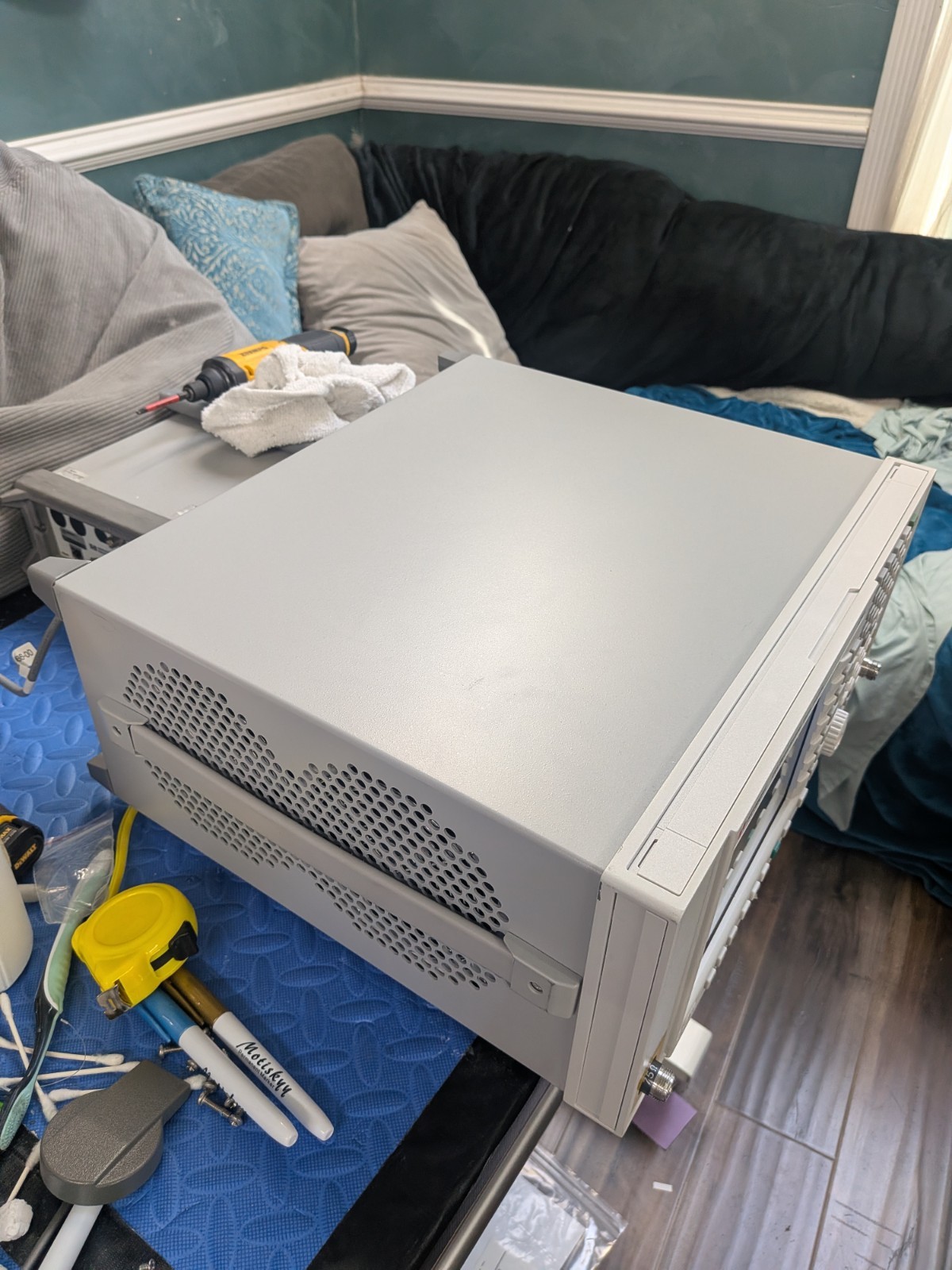

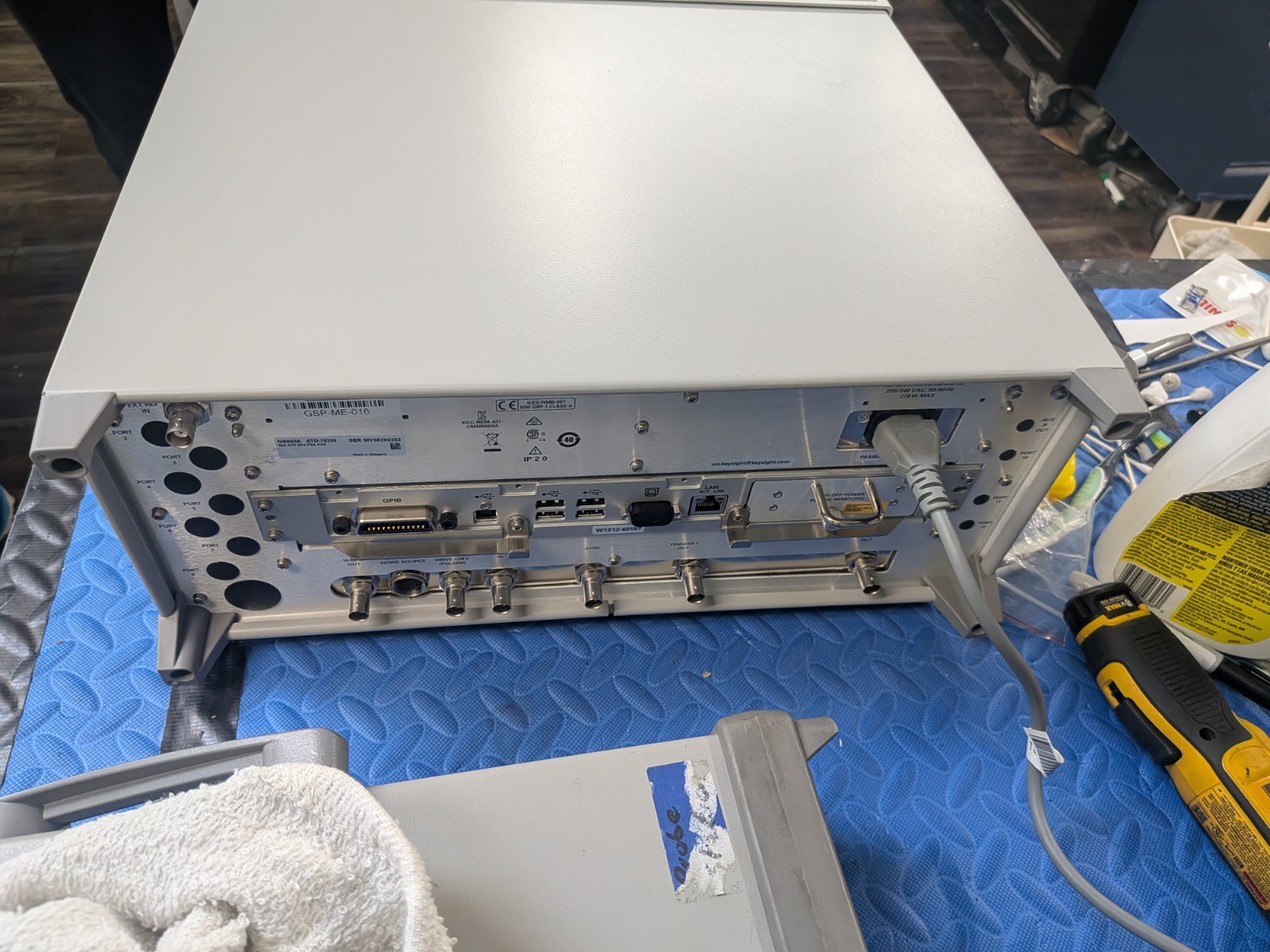

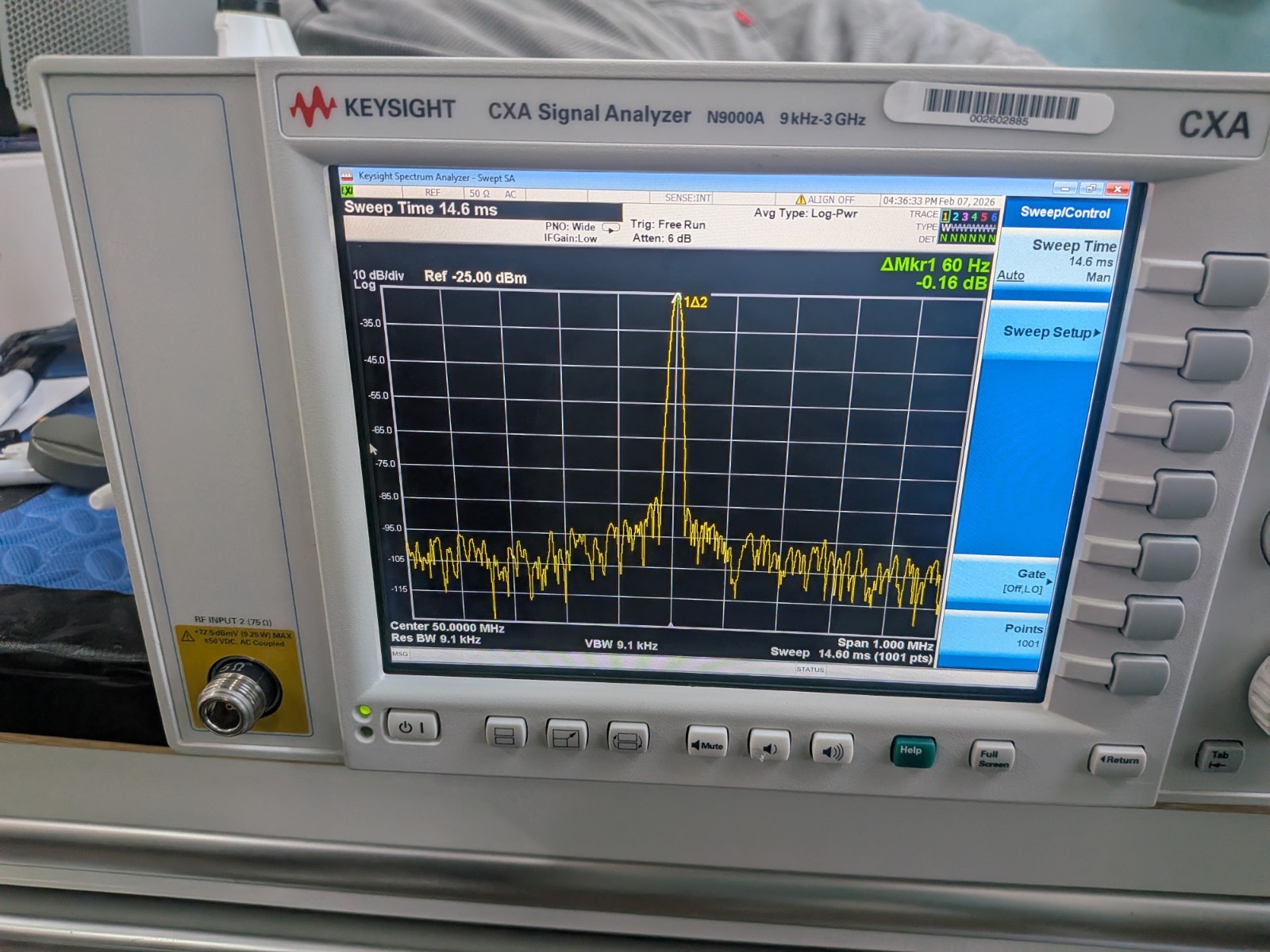

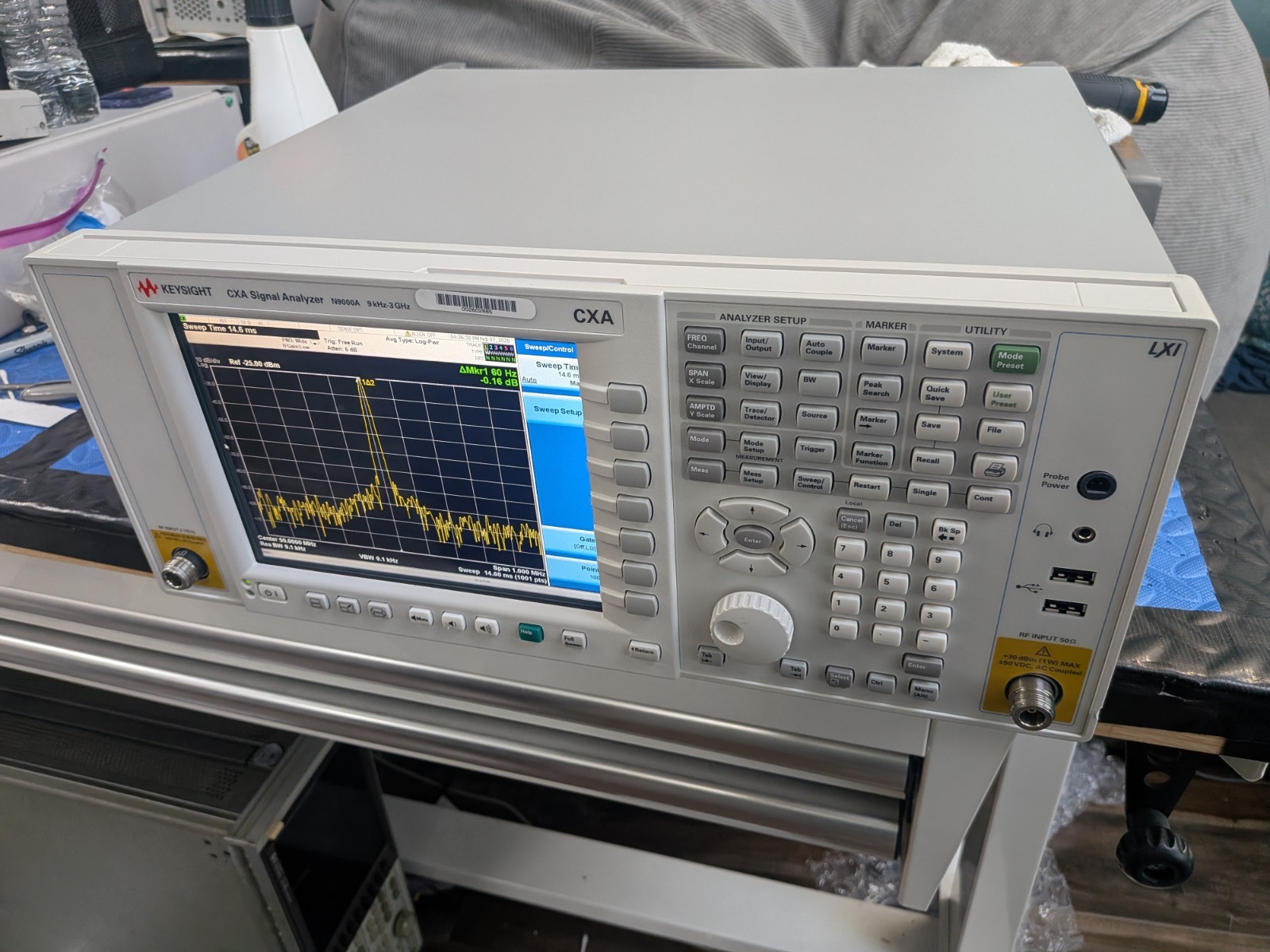

Keysight N9000A CXA signal analyzer covering 9 kHz to 7.5 GHz, fitted with the preamplifier and the 6 GHz tracking generator. This unit is used and calibrated.

Installed options

507 Frequency range, 9 kHz to 7.5 GHz: Sets the analyzer's measurement range from 9 kHz up to 7.5 GHz.
P07 Preamplifier, 9 kHz to 7.5 GHz: Lowers the displayed noise floor so smaller signals can be seen across the whole range.
T06 Tracking generator, 6 GHz: Adds a built-in source that follows the analyzer sweep for scalar network measurements such as filter and cable response.
PC5 Processor / Windows 7 upgrade: Gives the instrument computer a faster processor running Windows 7.
SSD Solid-state drive: Replaces the hard disk for faster boot and response.

Key specifications

Manufacturer	Keysight
Model	N9000A CXA
Frequency range	9 kHz – 7.5 GHz (Option 507)
Family	Keysight X-Series CXA signal analyzer
Preamplifier	Option P07, 9 kHz – 7.5 GHz
Tracking generator	Option T06, up to 6 GHz
Power suite measurements	Channel power, occupied bandwidth, ACP, power statistics CCDF, burst power
Other measurement applications	Phase noise and noise figure measurement applications are listed
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-64236
