Anritsu 69177A

10 MHz – 50 GHz · Synthesized CW, step and analog sweep · 0.1 Hz resolution · Low phase noise

Used, calibrated
10 MHz – 50 GHz
0.1 Hz resolution
Low phase noise

$11,750

● In stock · ships from Diamond Bar, California

Frequency10 MHz – 50 GHz

CalibrationFully calibrated

ConditionGrade B · normal wear

Warranty30-day warranty

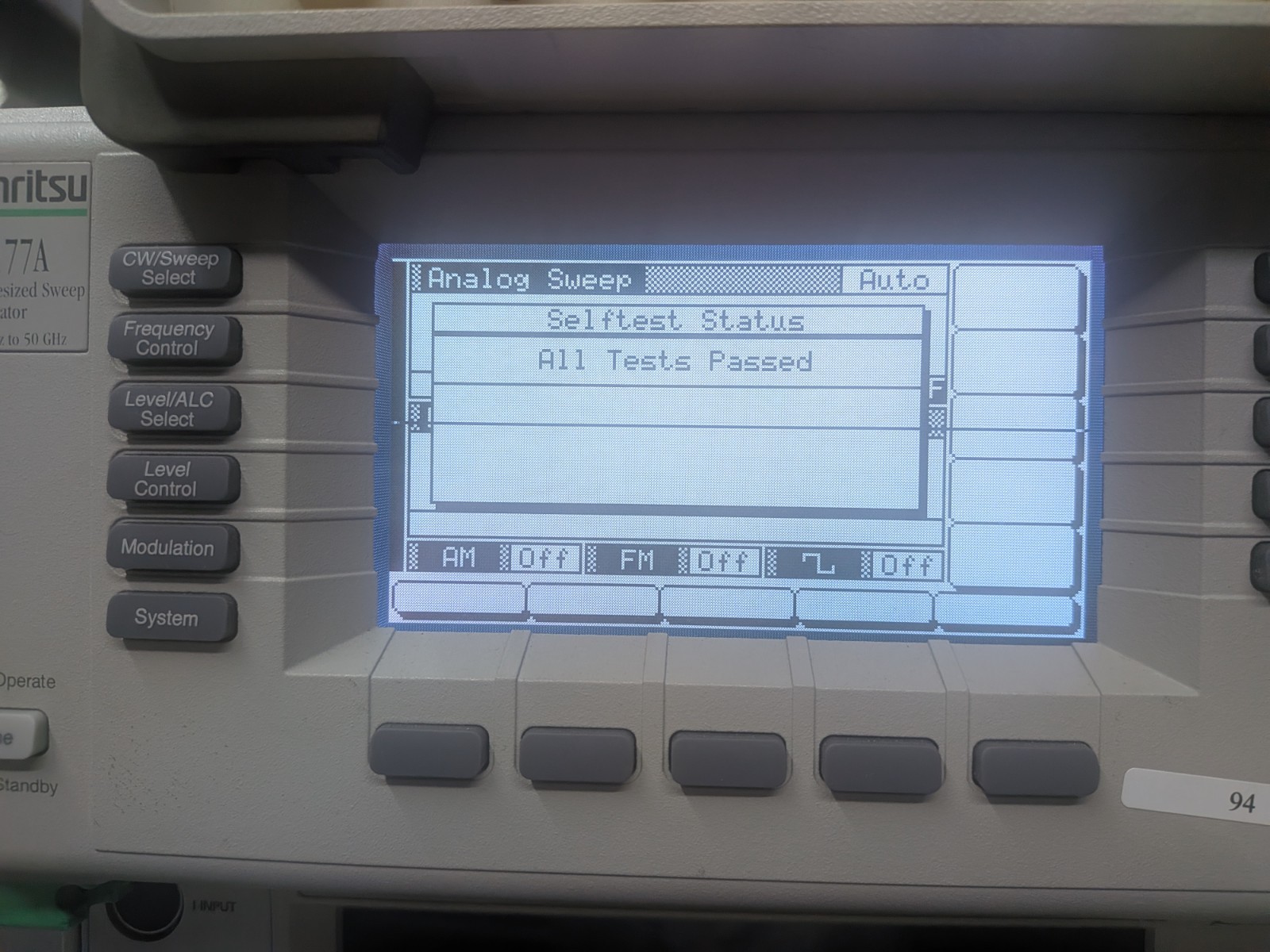

✓ Inspected and function-tested before it ships
✓ Photos are of this exact unit
✓ Packed with care, insured and tracked

Overview

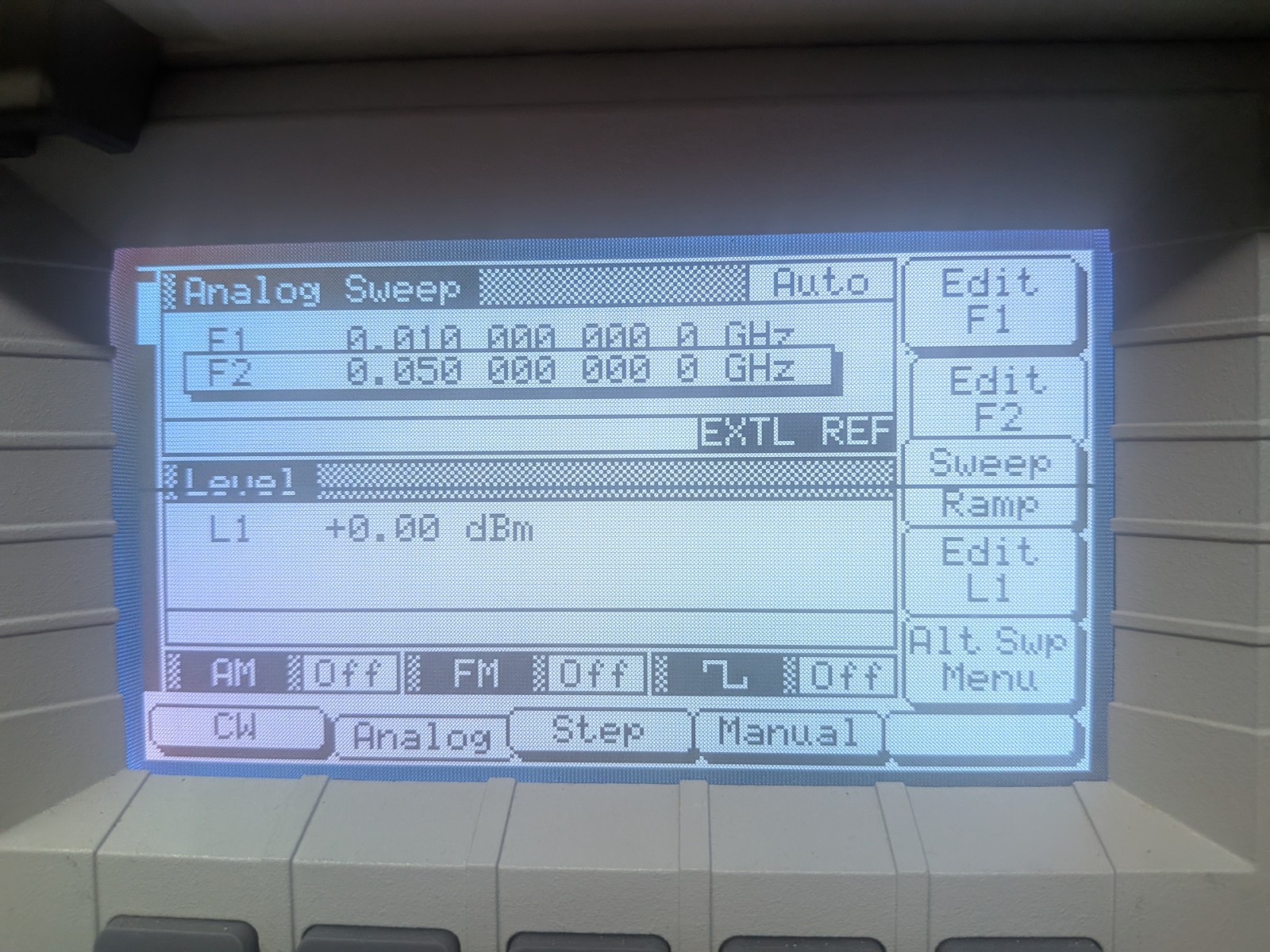

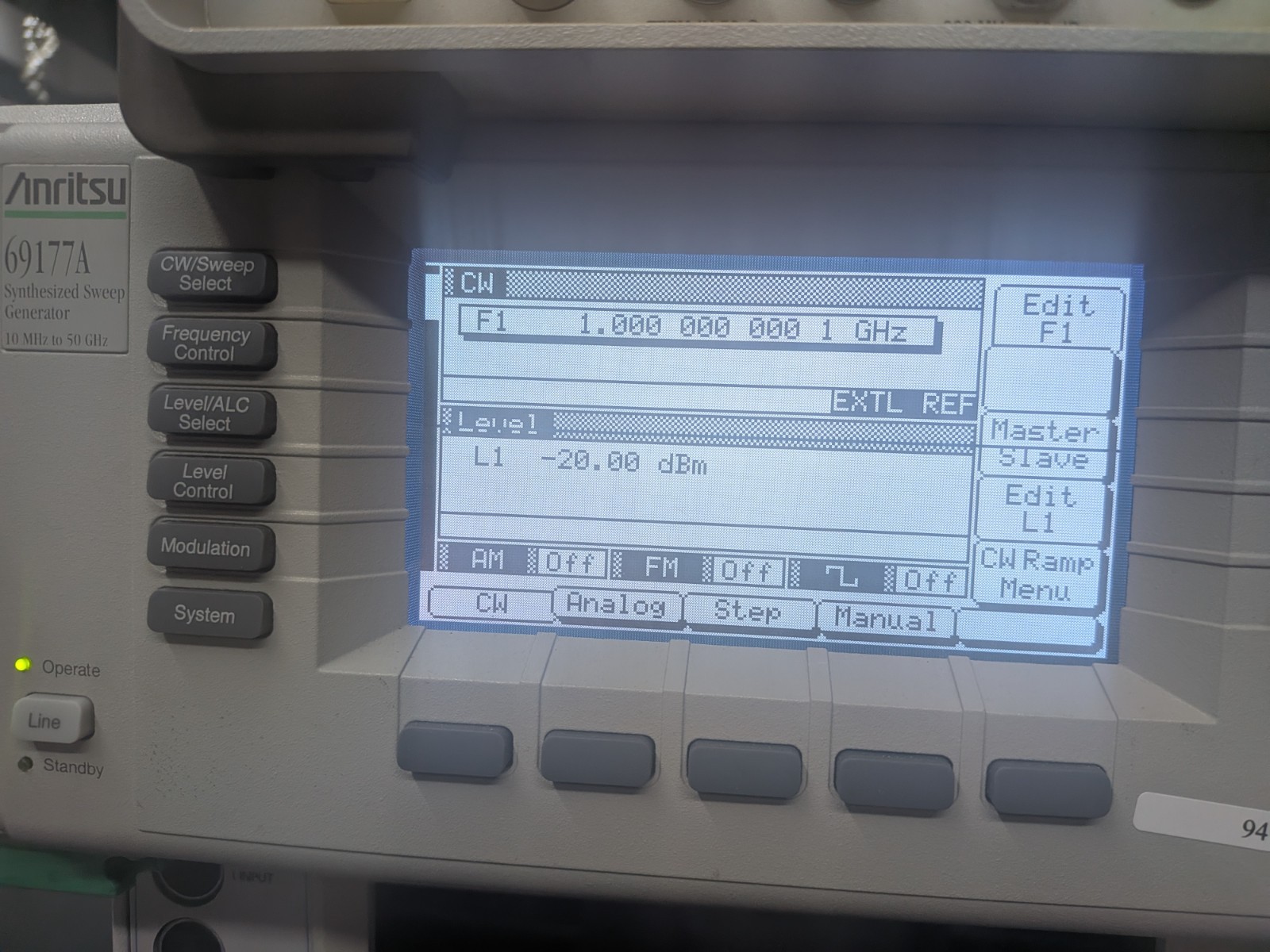

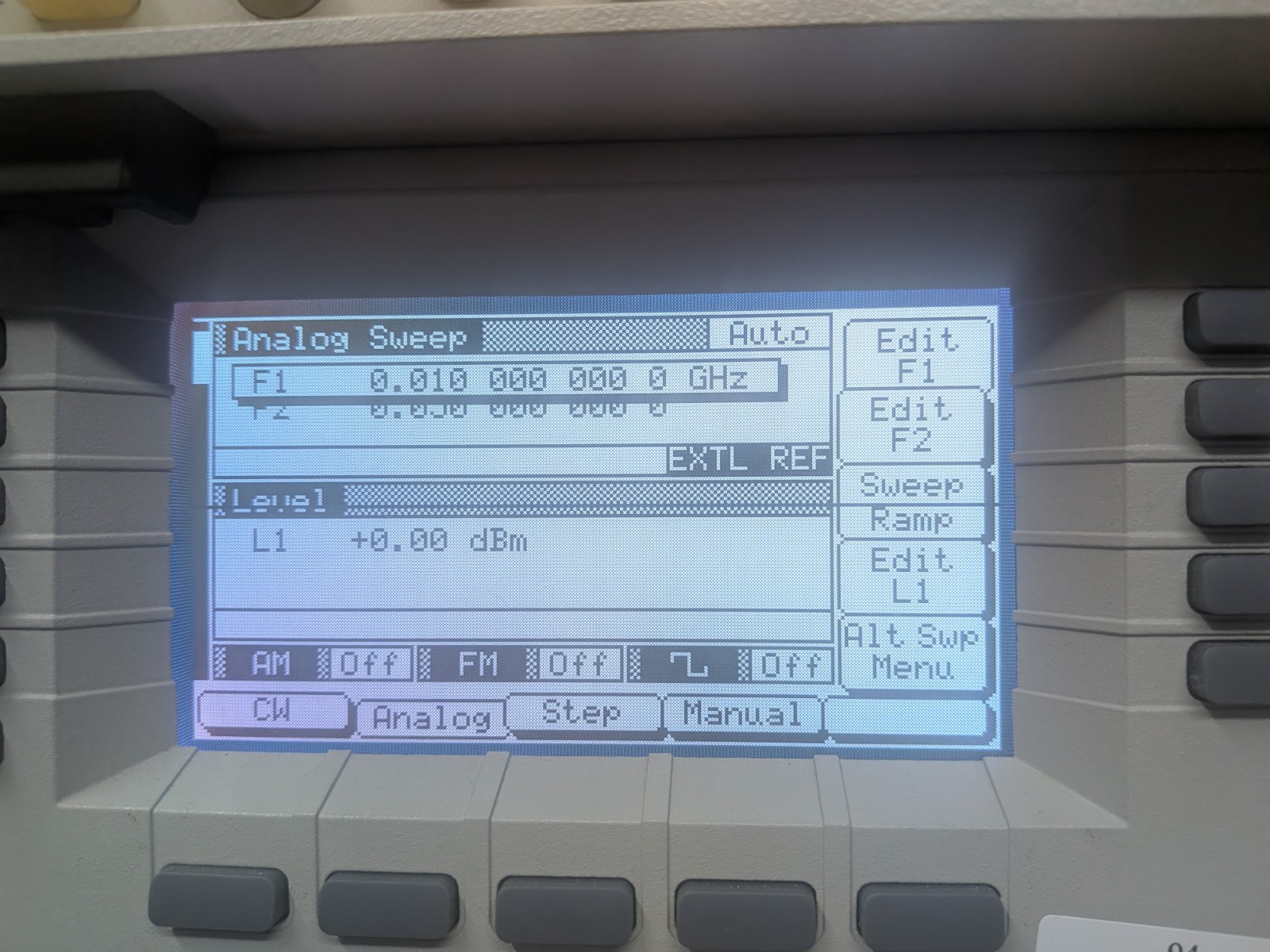

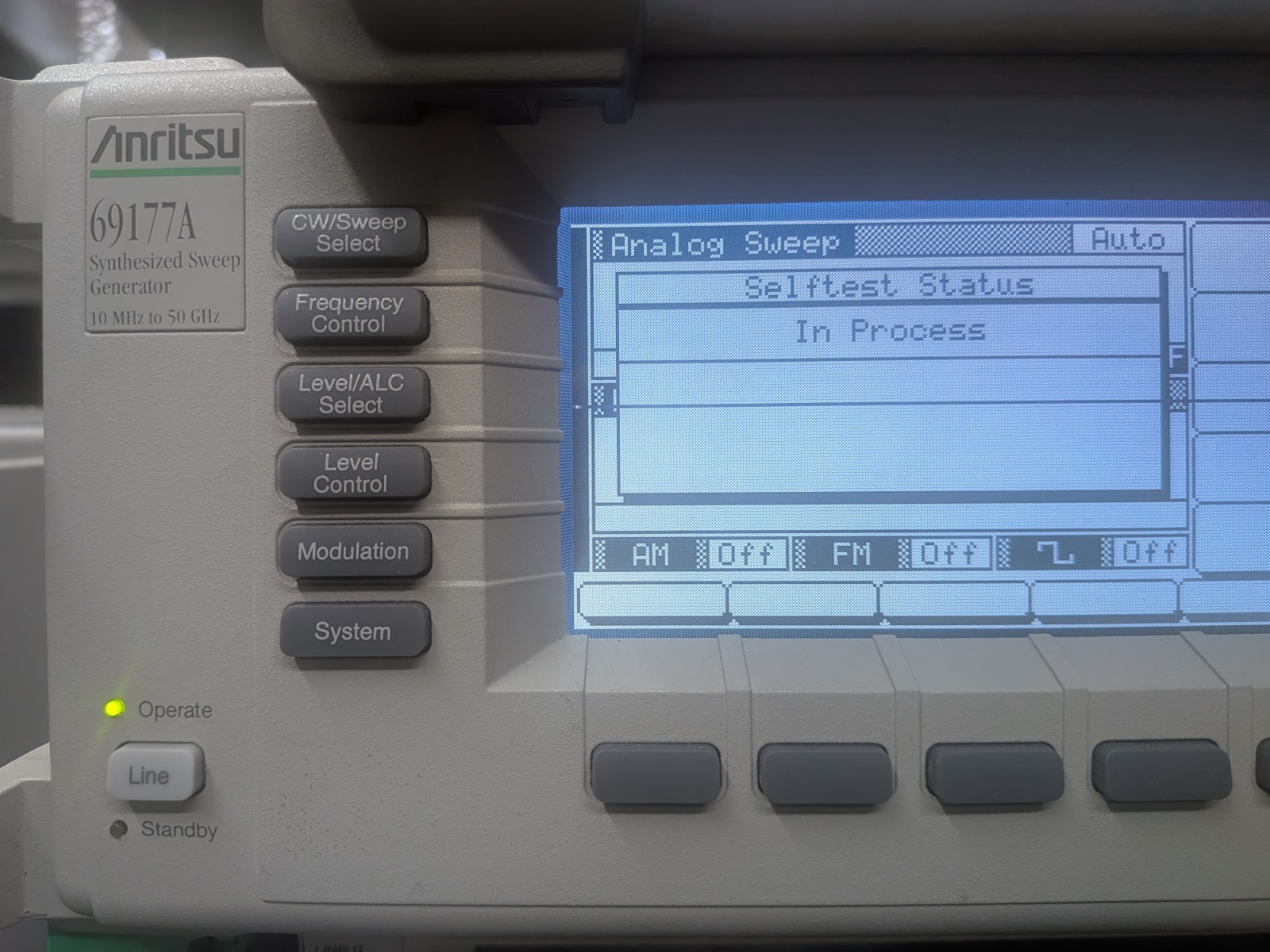

Anritsu 69177A synthesized sweep generator covering 10 MHz to 50 GHz with CW, step and analog sweep. This unit is calibrated and has Options 11, 16 and 19 installed, giving 0.1 Hz resolution, a high-stability time base and SCPI programming.

Installed options

11 0.1 Hz Resolution: Lets you set the output frequency in 0.1 Hz steps.
16 High-Stability Time Base: Adds an oven-controlled reference oscillator for better frequency accuracy and stability.
19 SCPI Programming: Lets you control the generator remotely with SCPI commands.

Key specifications

Manufacturer	Anritsu
Model	69177A
Frequency range	10 MHz – 50 GHz
Frequency resolution	0.1 Hz (with Option 11)
Maximum output power	12 dBm
Minimum output power	-15 dBm
Power resolution	0.01 dB
Output accuracy	2.5 dB
Output level switching time	20 ms
Output impedance	50 Ohm
Harmonics / non-harmonics	-40 dBc / -40 dBc
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-67551

Condition & service

Overall	Refurbished; new acrylic LCD shield
Testing	All alignments done with Anritsu software; frequency aligned to rubidium and checked with GPS
Calibration	Fully calibrated, 2-year cert and sticker
