Anritsu (Wiltron) 68369A/NV

10 MHz – 40 GHz · Synthesized sweep generator · 0.1 Hz resolution · Step attenuator

Used, calibrated
10 MHz – 40 GHz
Step attenuator
30-day warranty

$6,995

● In stock · ships from Diamond Bar, California

Frequency10 MHz – 40 GHz

CalibrationCalibrated and aligned with Anritsu software before shipping

ConditionGrade B · normal wear

Warranty30-day warranty

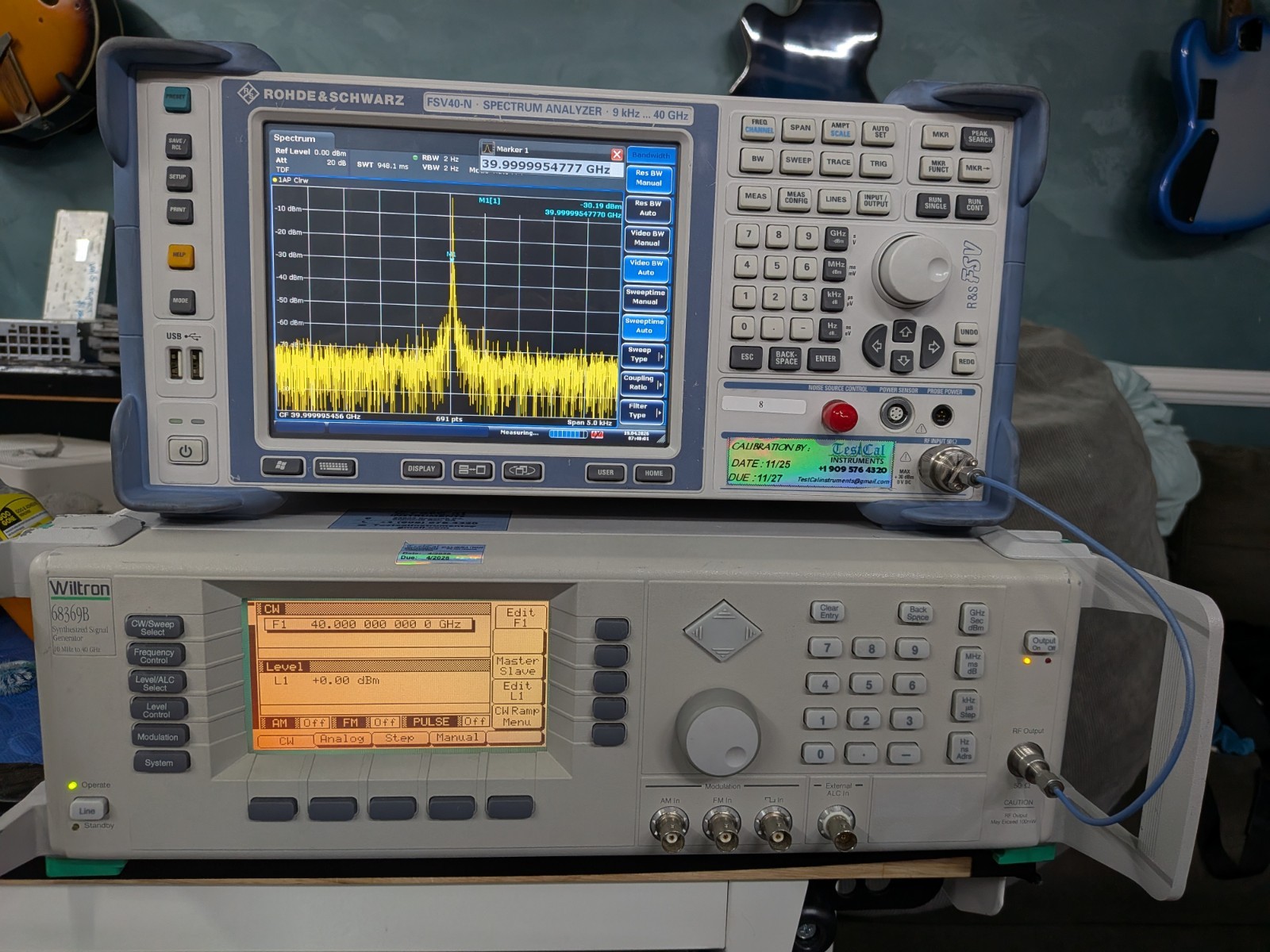

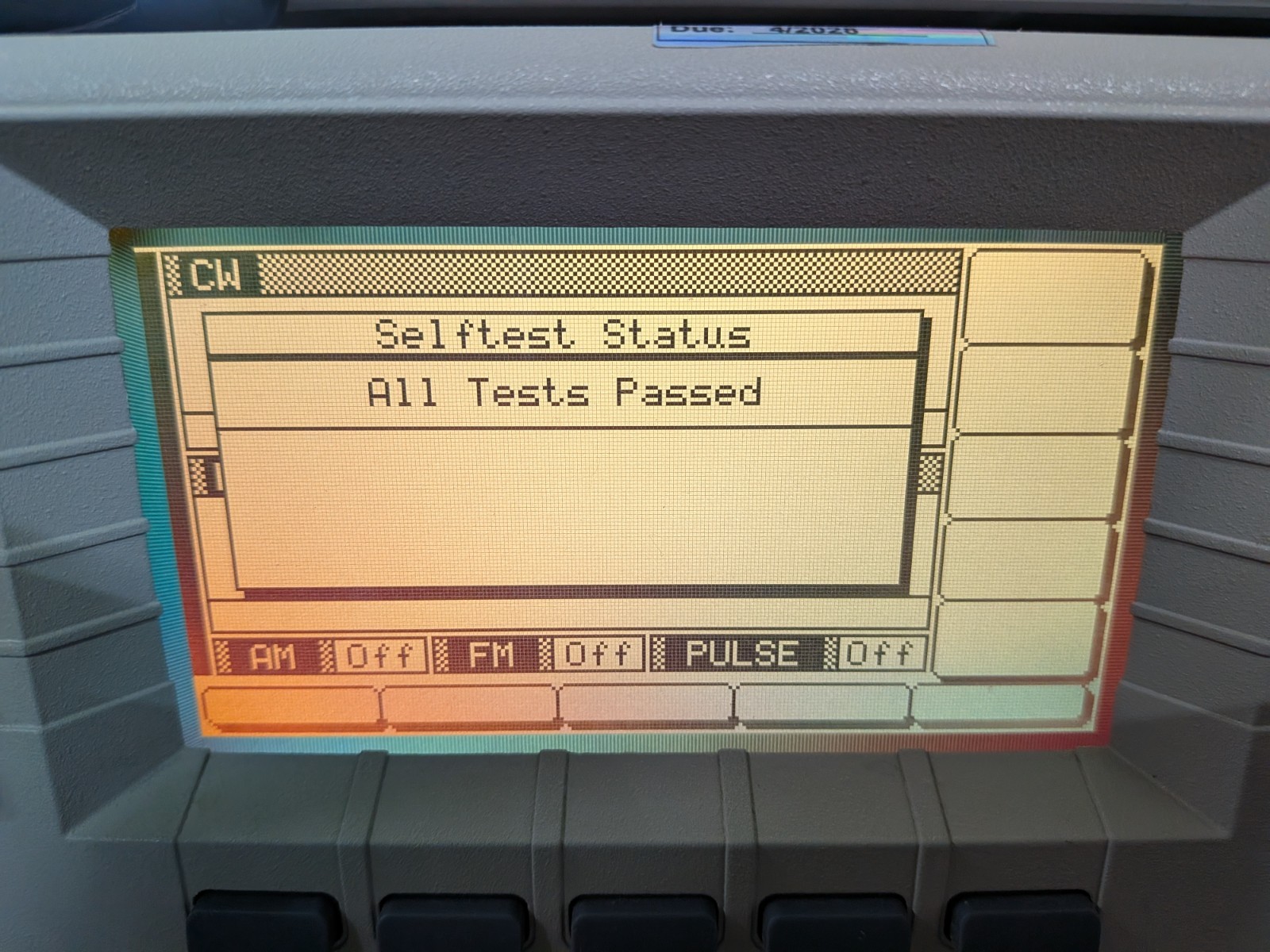

✓ Inspected and function-tested before it ships

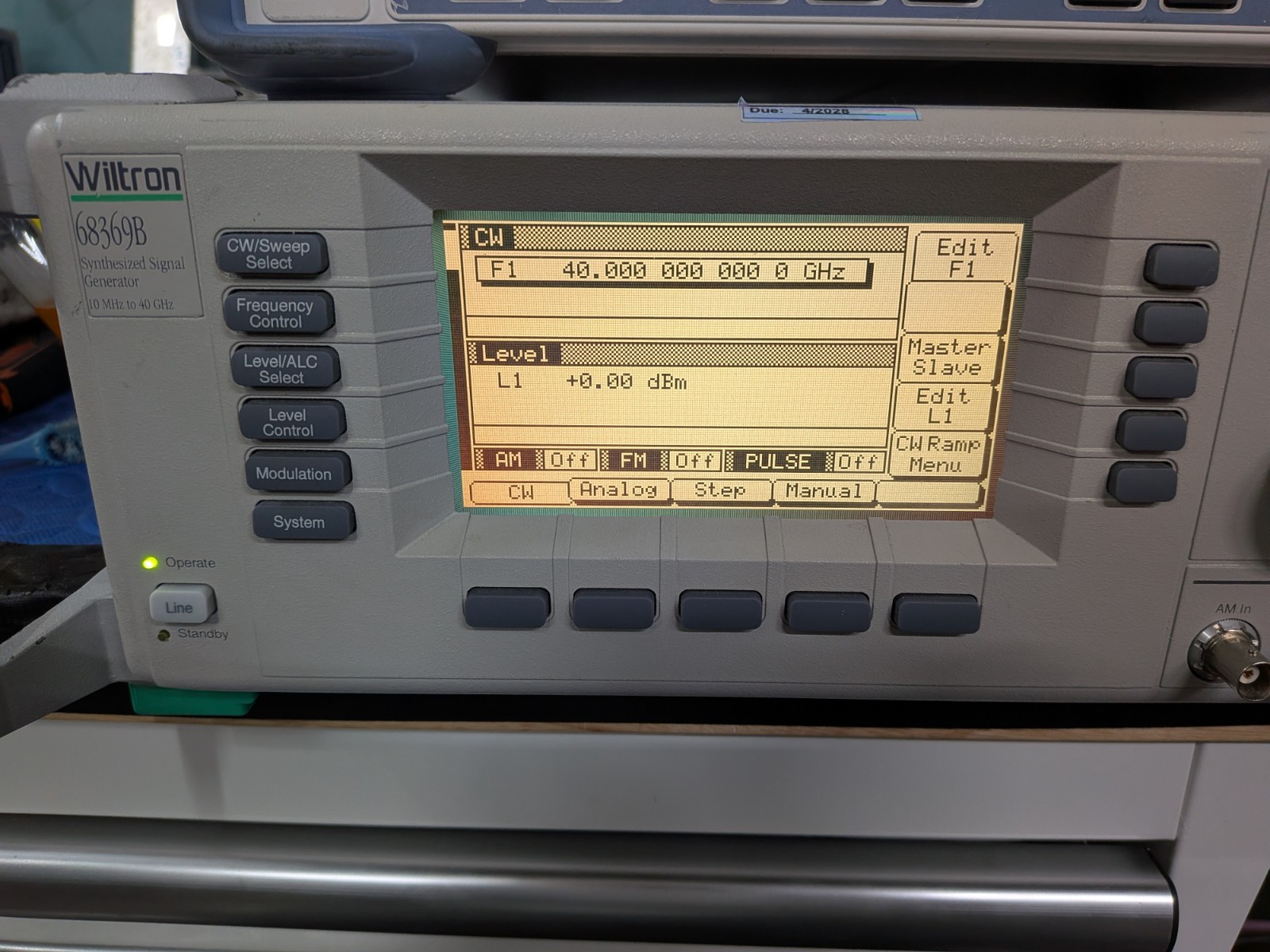

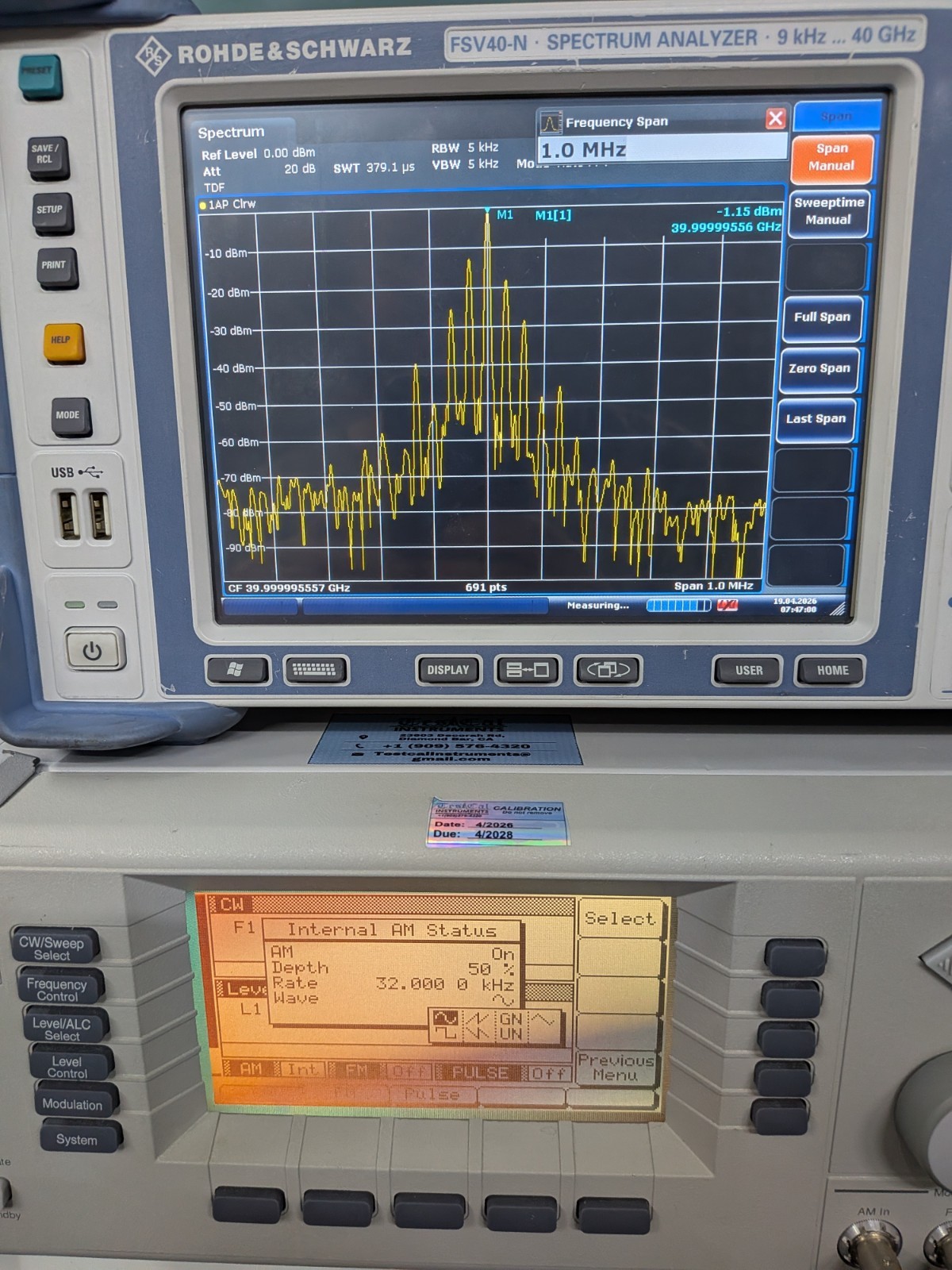

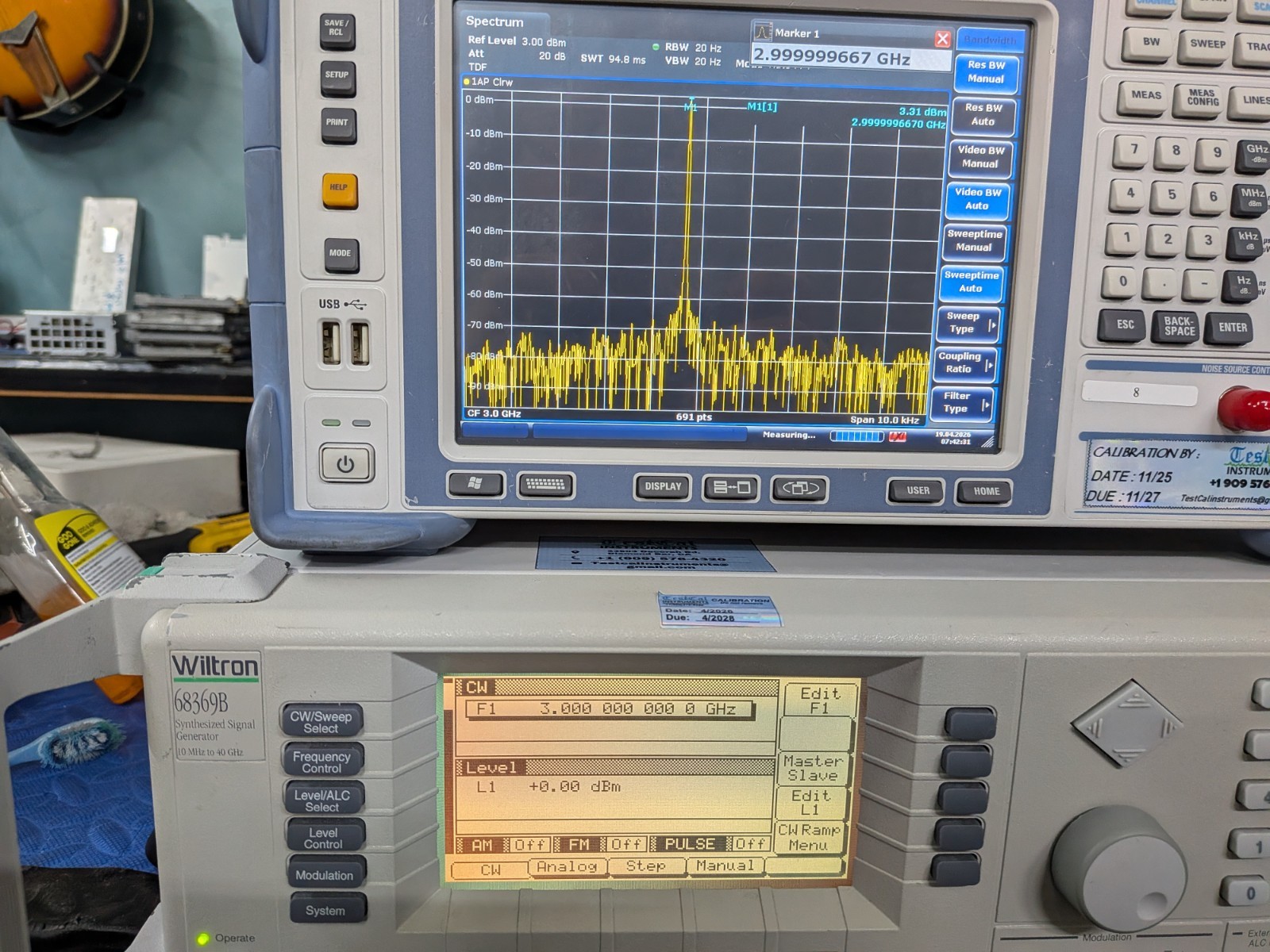

✓ Photos are of this exact unit
✓ Packed with care, insured and tracked

Overview

Anritsu 68369A/NV synthesized sweep generator covering 10 MHz to 40 GHz, fitted with the step attenuator, 0.1 Hz resolution and high-stability time base options. Used and calibrated.

Installed options

2B Step attenuator: Adds a mechanical step attenuator so the generator can output lower power levels.
11 0.1 Hz resolution: Lets you set the frequency in steps as small as 0.1 Hz.
16 High-stability time base: Improves frequency stability and lowers close-in phase noise.

Key specifications

Manufacturer	Anritsu (Wiltron)
Model	68369A/NV
Frequency range	10 MHz – 40 GHz
Frequency resolution	0.1 Hz (with Option 11); 1 kHz standard
Sweep modes	Analog, step, power, alternate and manual sweep
Time base aging	<5 x 10^-10/day (with Option 16)

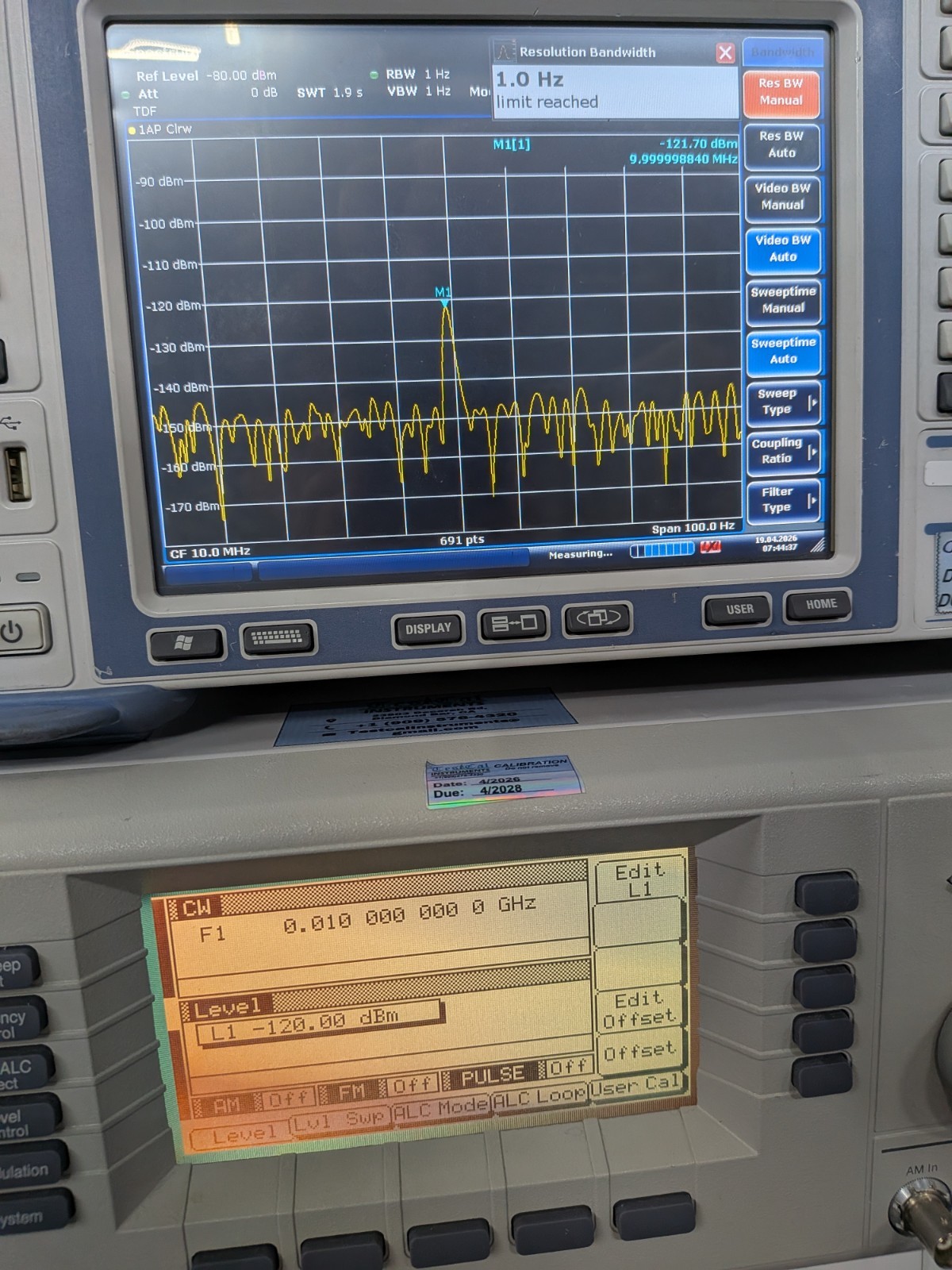

Minimum settable power	–115 dBm with step attenuator (–120 dBm typical)
Switching time (CW)	<40 ms to within 1 kHz of final frequency (typical max)
Modulation	Internal and external AM, FM and pulse
RF output connector	Type K female
Remote control	GPIB (IEEE-488)
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-10126

Specifications and option descriptions are manufacturer data, still being checked against the datasheet. Ask us to confirm anything important for your application.
