Home / Signal Generators / Agilent / HP 83620A
Agilent / HP ·
EB-40828Agilent / HP 83620A
10 MHz – 20 GHz · Up to +25 dBm range · Step attenuator · Fast pulse · NIST calibrated
- NIST calibrated
- 10 MHz – 20 GHz
- Fast pulse + attenuator
- Used, calibrated
$4,750
● In stock · ships from Diamond Bar, California
Frequency10 MHz – 20 GHz
CalibrationNIST-traceable cert and sticker
ConditionGrade B · normal wear
Warranty30-day warranty
✓ Inspected and function-tested before it ships

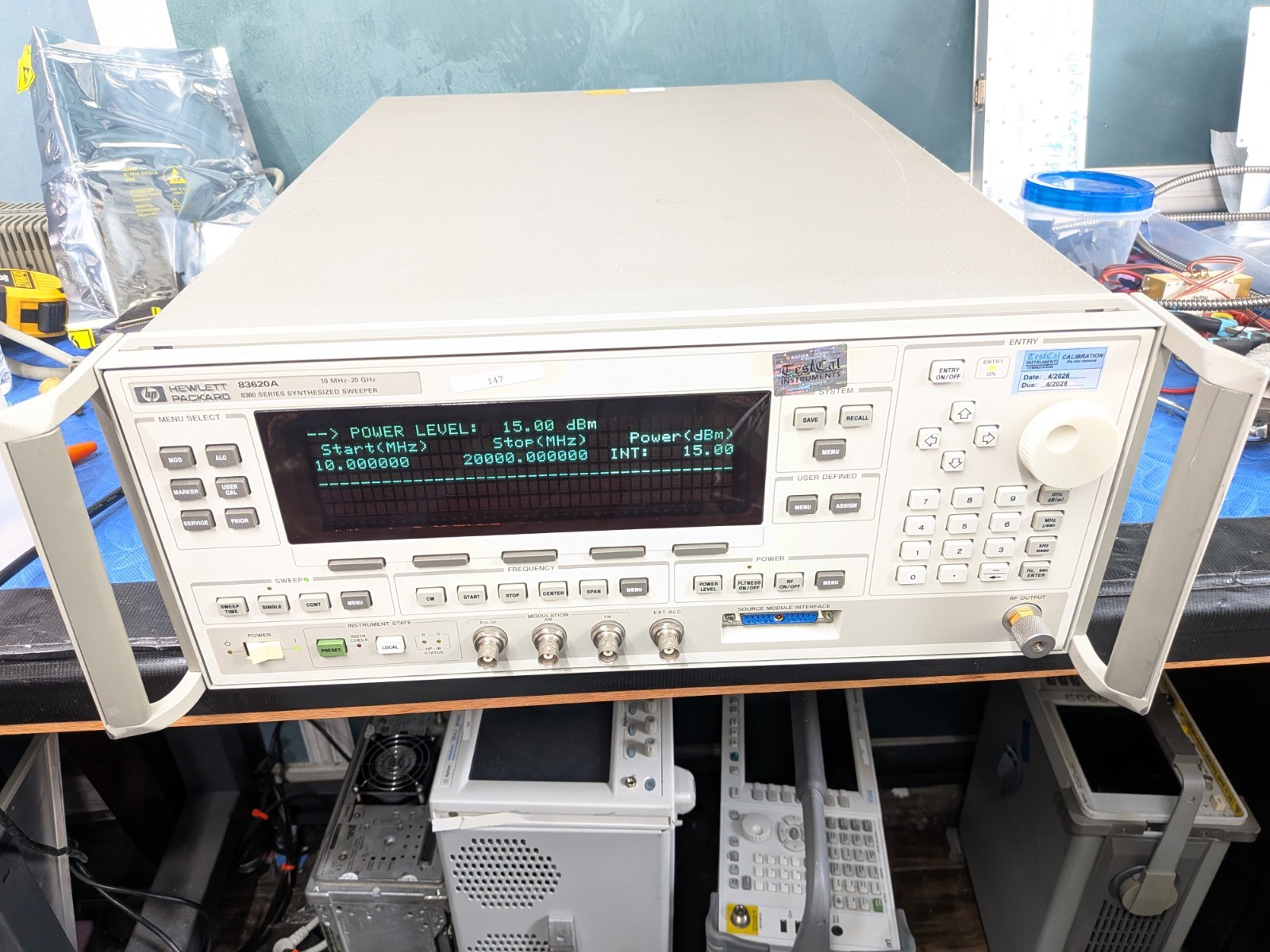

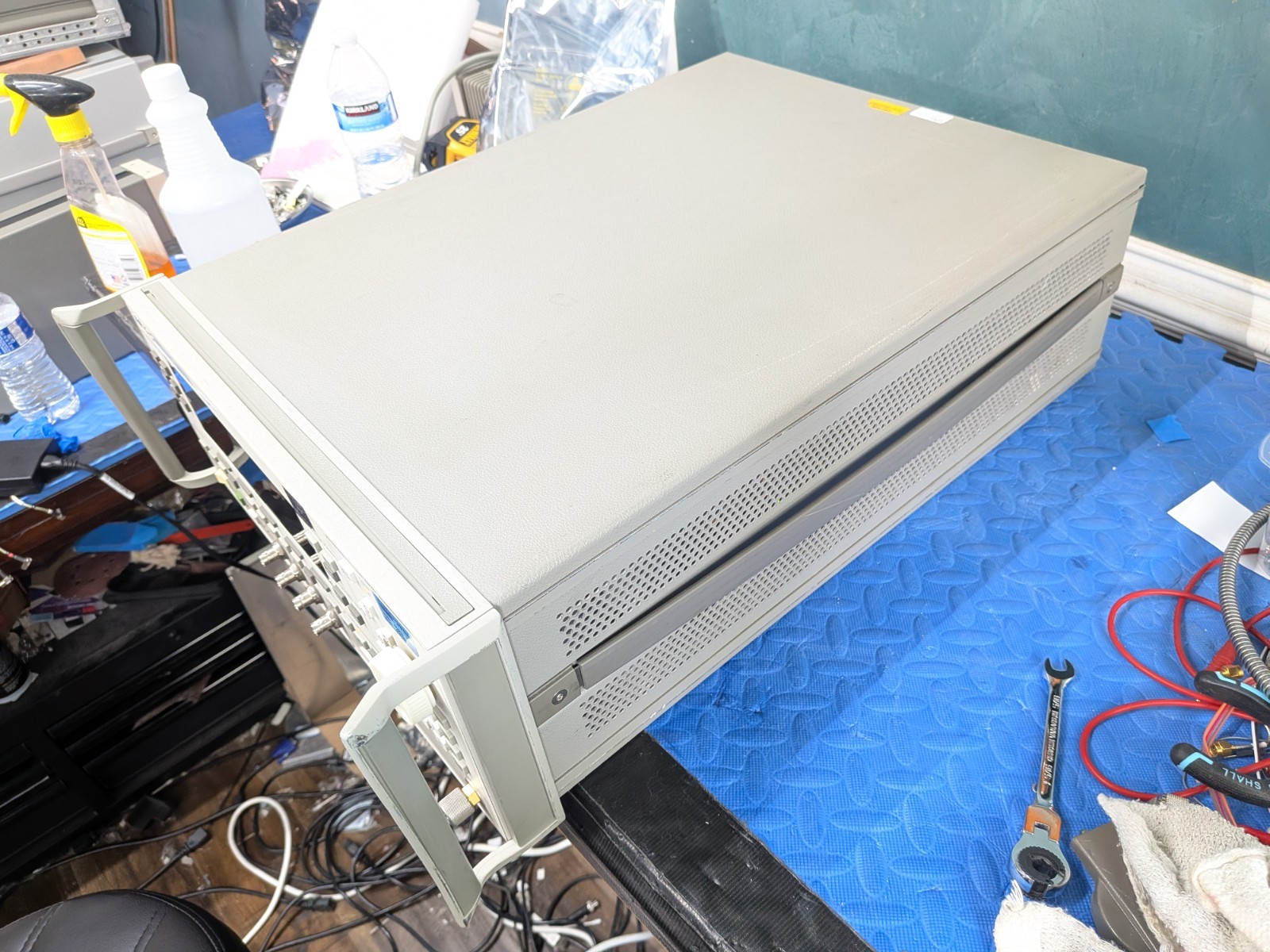

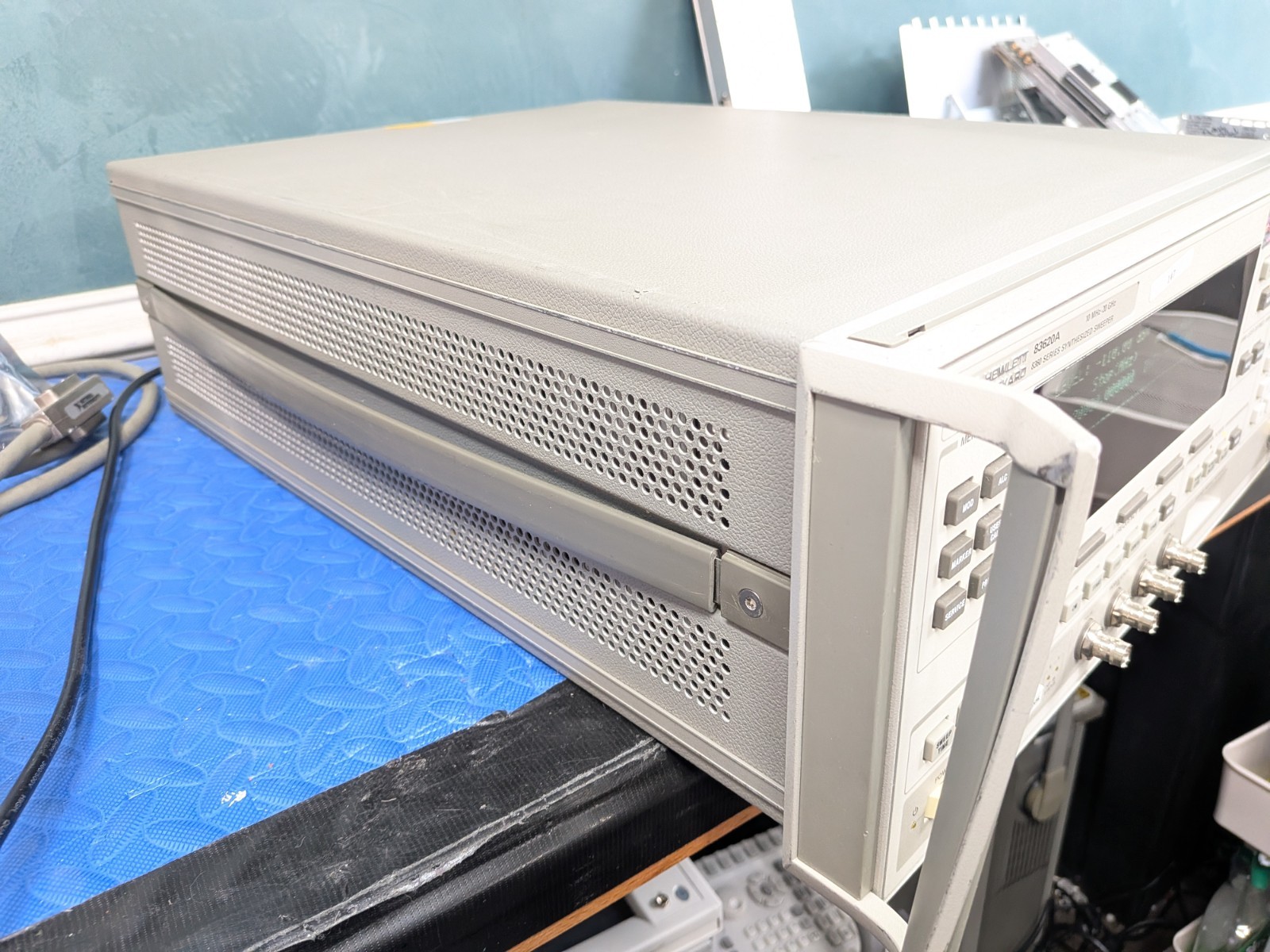

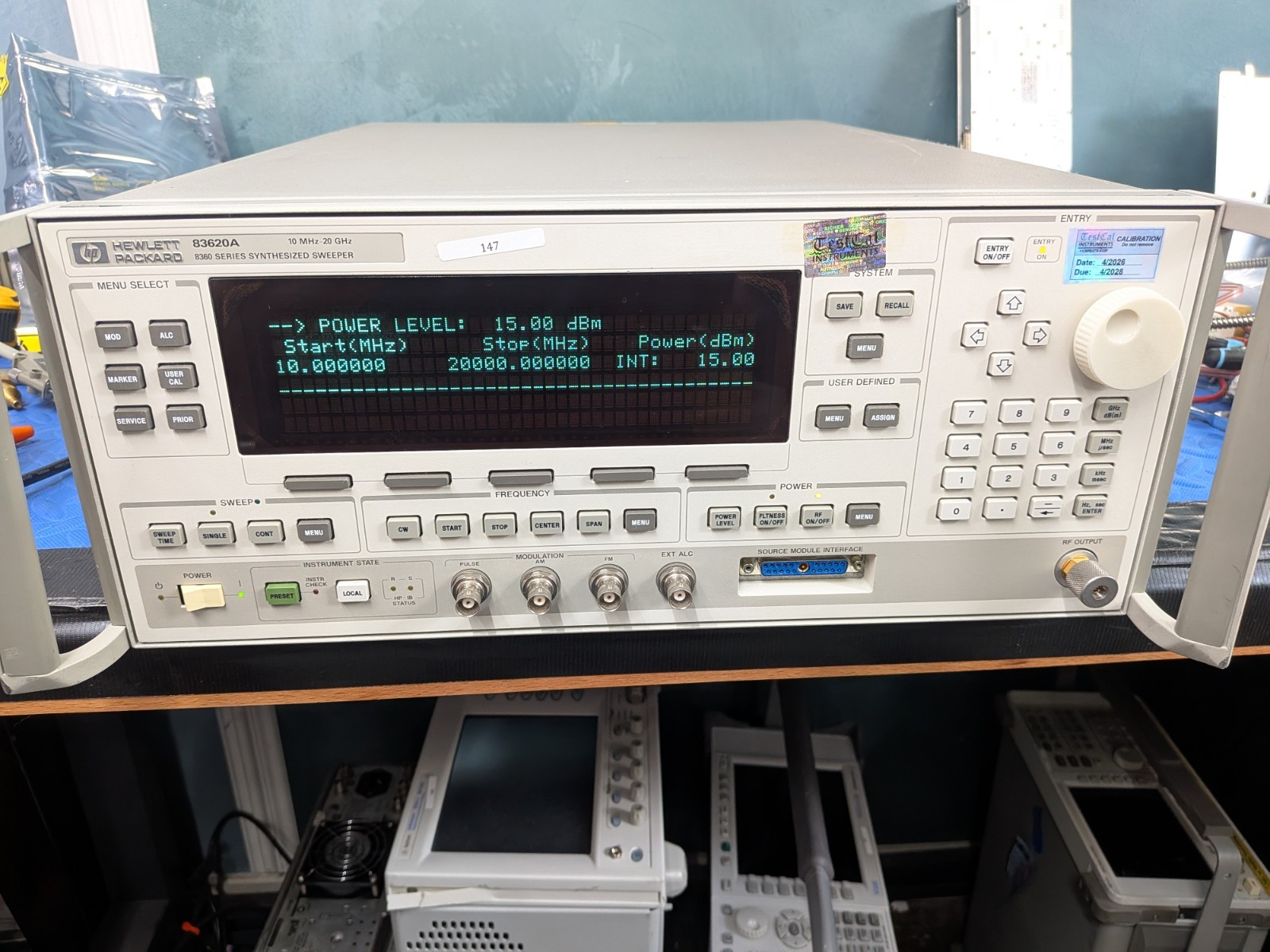

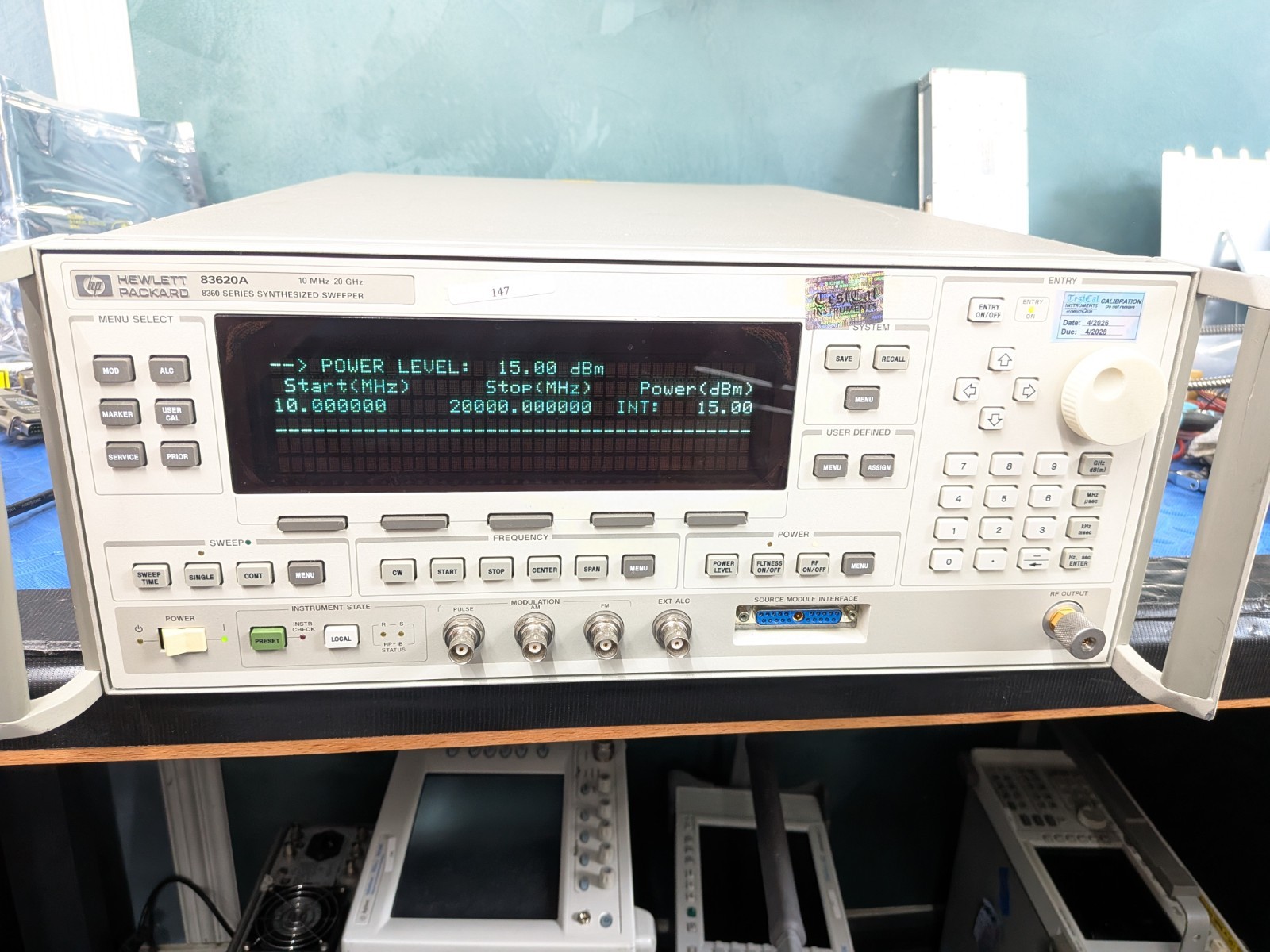

✓ Photos are of this exact unit
✓ Packed with care, insured and tracked
✓ Photos are of this exact unit
✓ Packed with care, insured and tracked
Overview

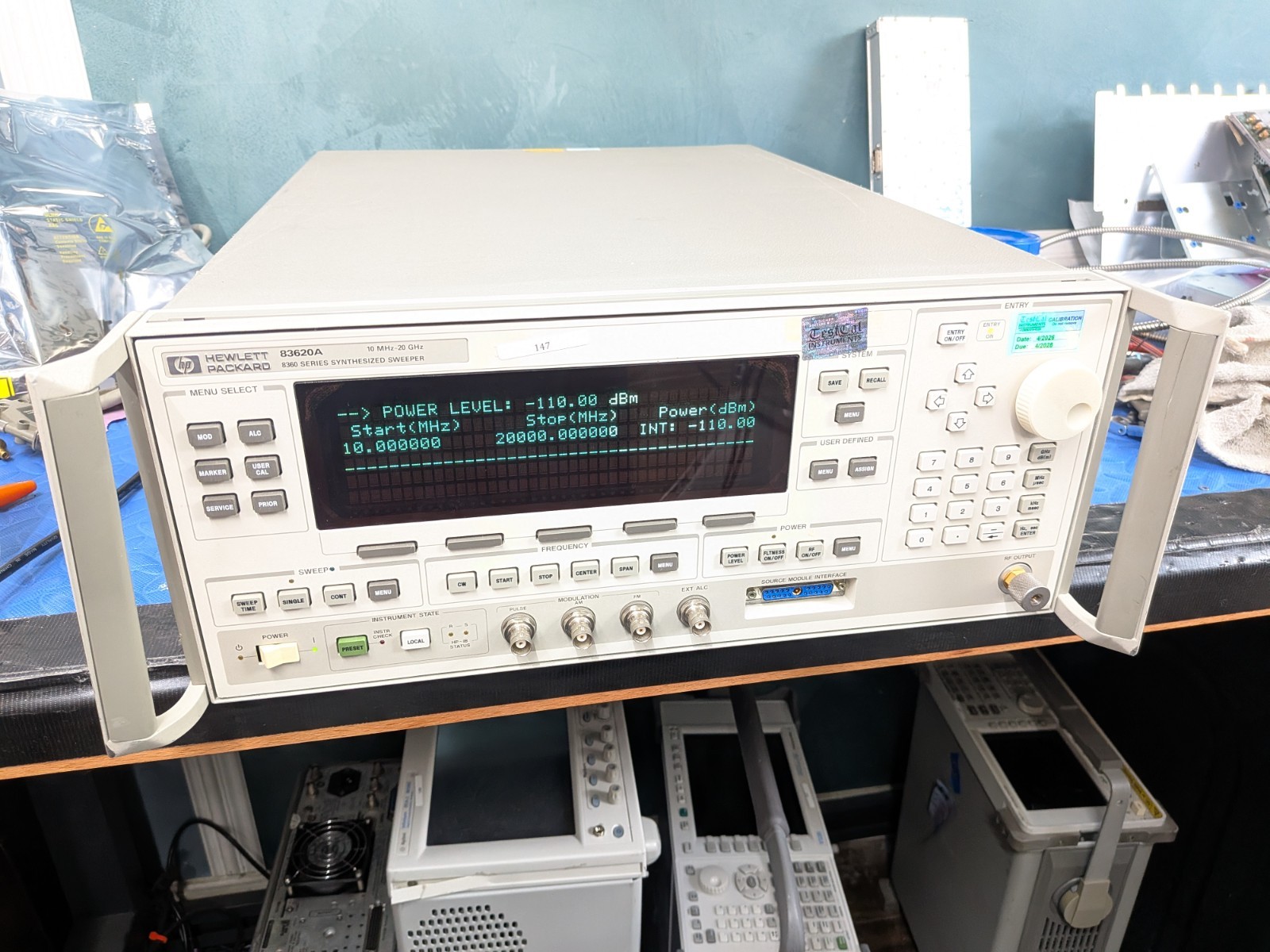

HP/Agilent 83620A synthesized sweeper covering 10 MHz to 20 GHz. This unit has options 001 and 006 installed, is sold used and calibrated, and comes with a NIST-traceable calibration.
Installed options
001Add Step Attenuator- Adds a built-in step attenuator so the output level can be set much lower, down to -110 dBm, for low-level signal testing.
006Fast Pulse Modulation- Adds fast rise-time pulse modulation of the RF output for pulsed measurements.
Key specifications
| Manufacturer | Agilent / HP |
| Model | 83620A |
| Model | HP 83620A synthesized sweeper (HP 8360 Series) |
| Frequency range | 10 MHz – 20 GHz |
| Sweep modes | CW, start/stop and center/span frequency sweep, power sweep, step sweep, manual sweep |

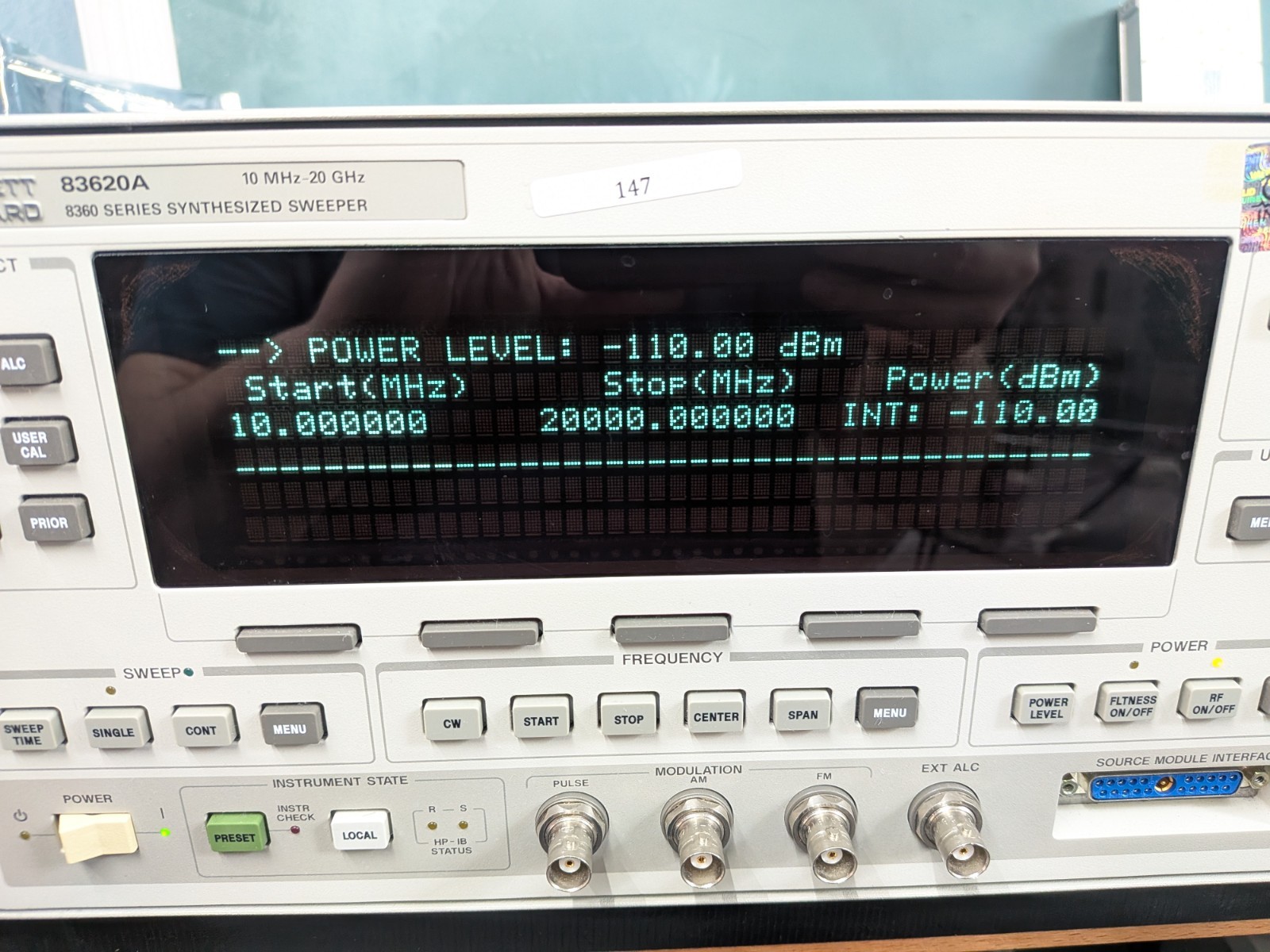

| Power level setting range | -20 dBm to +25 dBm (-110 dBm to +25 dBm with Option 001) |
| Power sweep | Available in CW mode; range depends on ALC range and is offset by the Option 001 step attenuator |
| Frequency markers | 5 markers |
| Internal time base | 10 MHz |

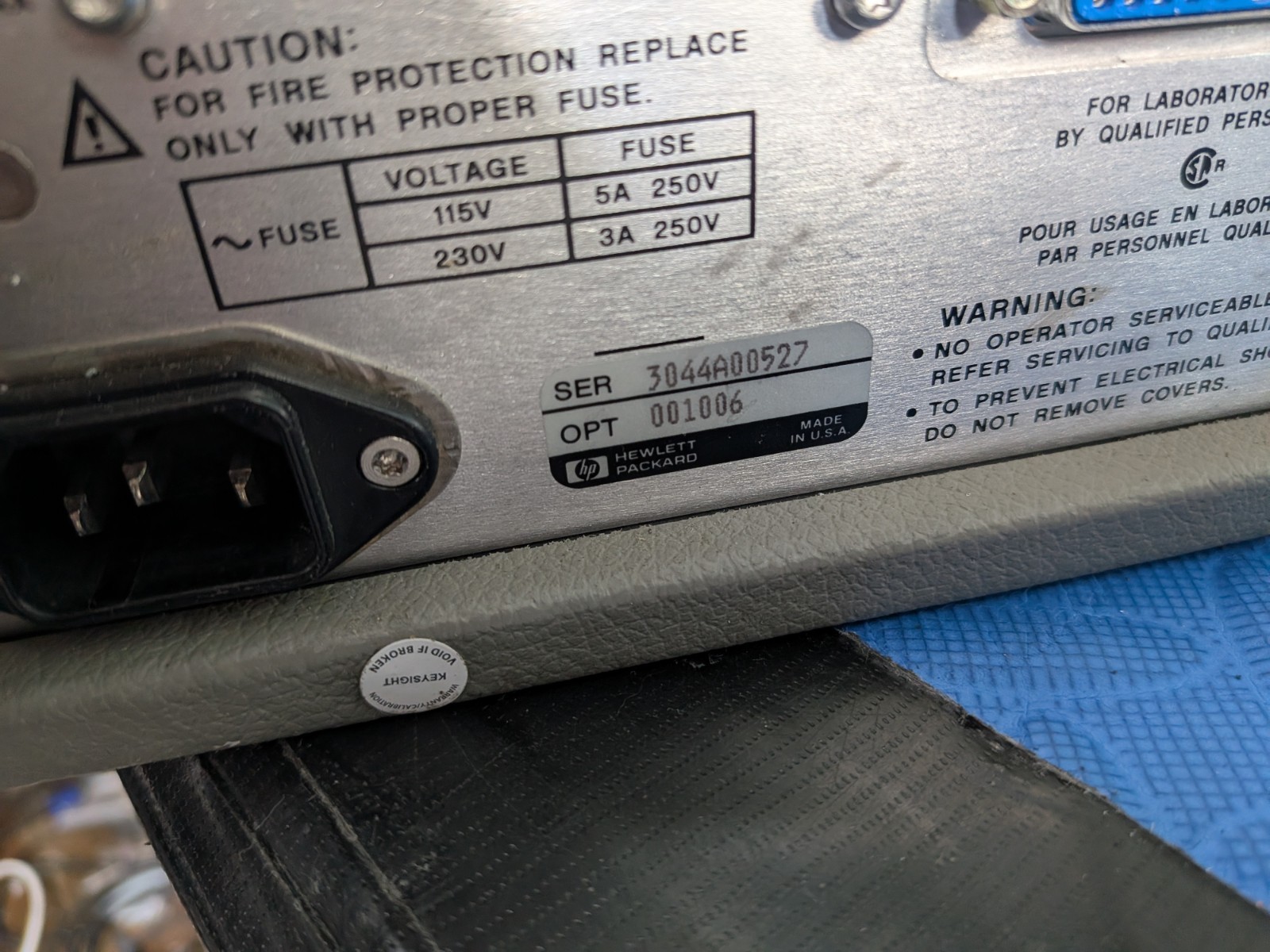

| Installed options | 001 Step attenuator, 006 Fast pulse modulation |
| Condition | Grade B · normal wear · Used, calibrated |
| Stock number | EB-40828 |
Condition & service
| Overall | Low hours; keypad professionally cleaned; display window replaced with acrylic |
| Testing | Works flawlessly |

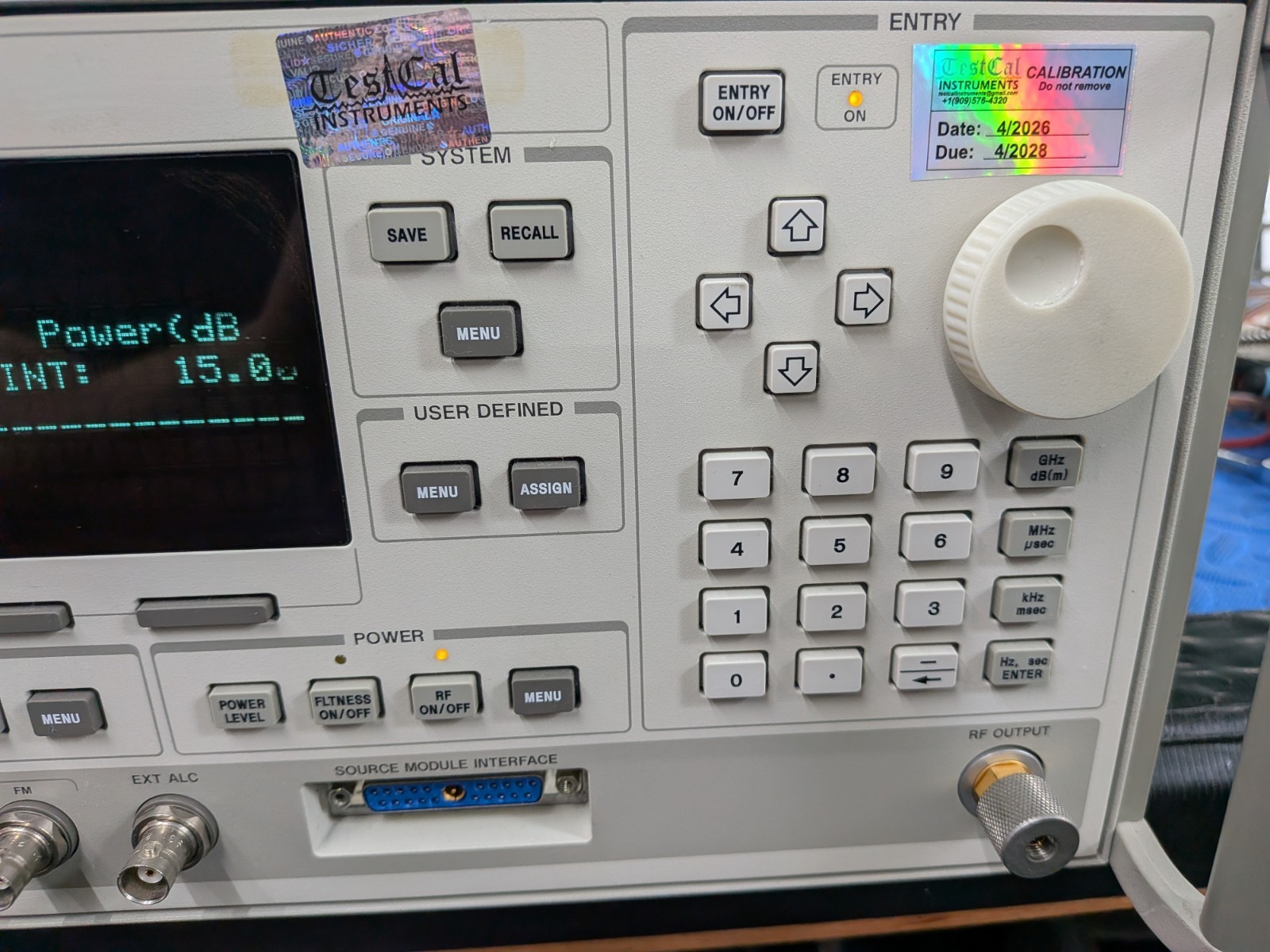

| Calibration | NIST-traceable cert and sticker |
Good to know
- Without opt 006 the price is lower; opt 004 rear output and opt 008 1 Hz resolution can be added.
Shipping & warranty
Packed with additional protective packaging and fully insured. Ships from Diamond Bar, California.
Covered by a 30-day warranty. If anything isn't right, contact us and we'll make it right.
