Agilent / HP 83651B

10 MHz – 50 GHz · Synthesized sweeper · 1 Hz resolution (Opt 008) · CW and swept

Used, calibrated
10 MHz – 50 GHz
1 Hz resolution
30-day warranty

$11,500

● In stock · ships from Diamond Bar, California

Frequency10 MHz – 50 GHz

CalibrationCalibration certificate and sticker

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships

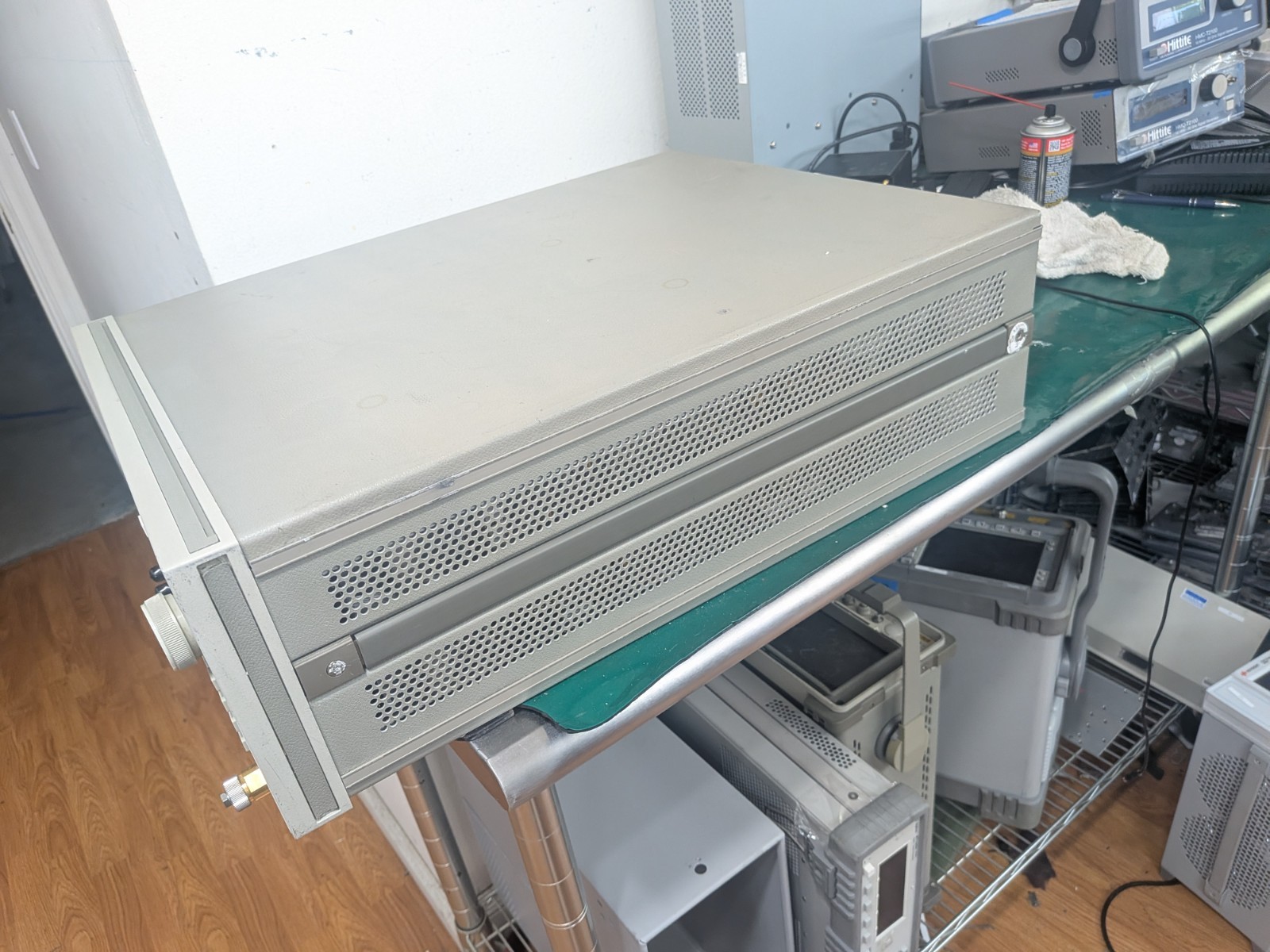

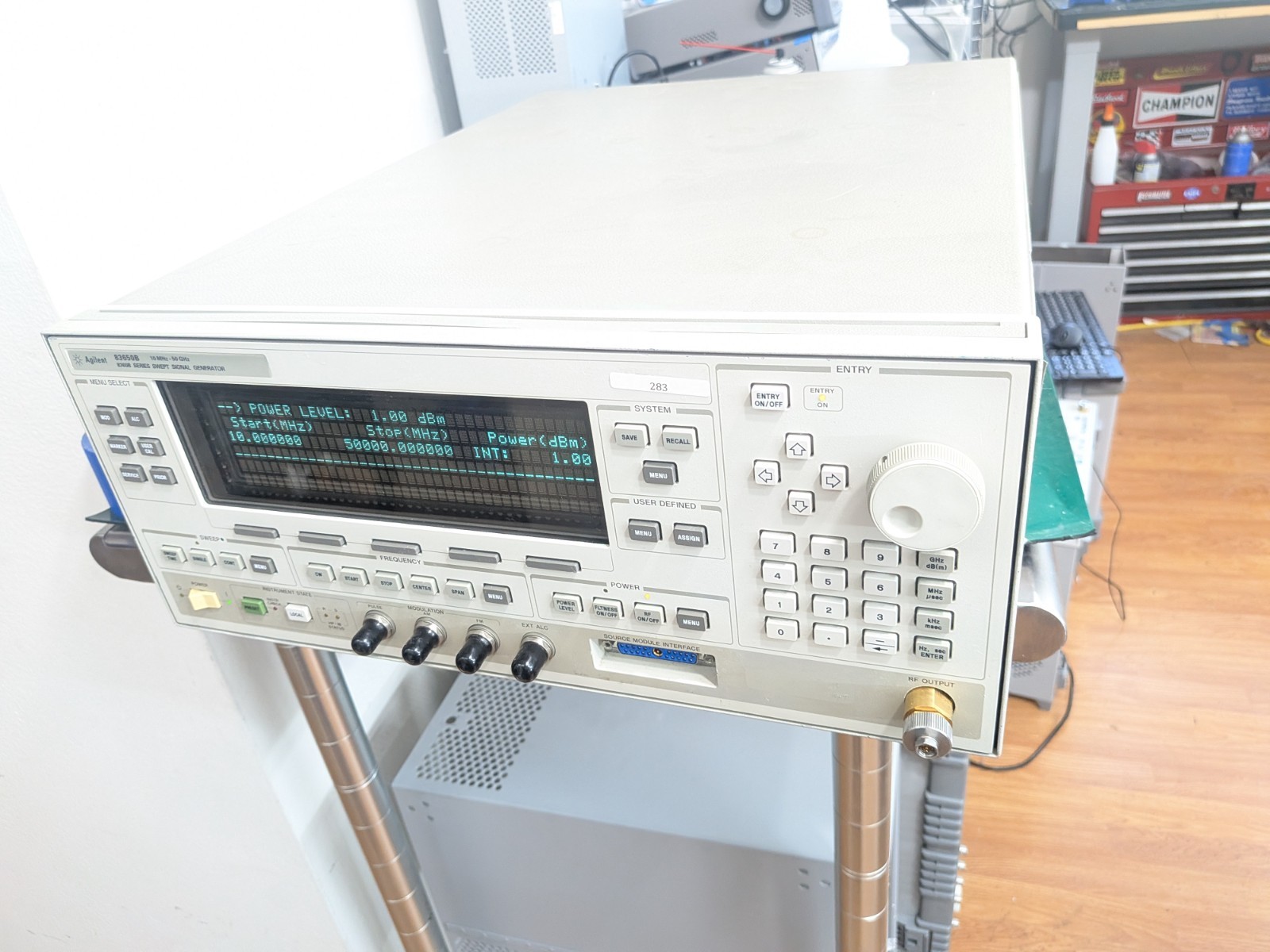

✓ Photos are of this exact unit
✓ Packed with care, insured and tracked

Overview

Agilent/HP 83651B synthesized sweeper covering 10 MHz to 50 GHz, a swept and CW signal source. This unit is calibrated and has Option 008 installed for 1 Hz frequency resolution.

Installed options

008 1 Hz frequency resolution: Lets you set the output frequency in 1 Hz steps instead of the standard 1 kHz.

Key specifications

Manufacturer	Agilent / HP
Model	83651B
Frequency range	10 MHz – 50 GHz
Frequency resolution	1 Hz (with Option 008); 1 kHz standard
Minimum settable output power	–20 dBm (standard, no step attenuator)
Step sweep points	2 to 801
Dwell time (step and list)	100 µs to 3.2 s
Ramp sweep time	10 ms to 100 s
Time base aging rate	5 × 10⁻¹⁰/day, 1 × 10⁻⁷/year
RF output impedance	50 ohms nominal
Dimensions (H × W × D)	178 × 425 × 648 mm
Net weight	27 kg (60 lb)
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-20314

Specifications and option descriptions are manufacturer data, still being checked against the datasheet. Ask us to confirm anything important for your application.

Condition & service

Overall	Used; B-grade display

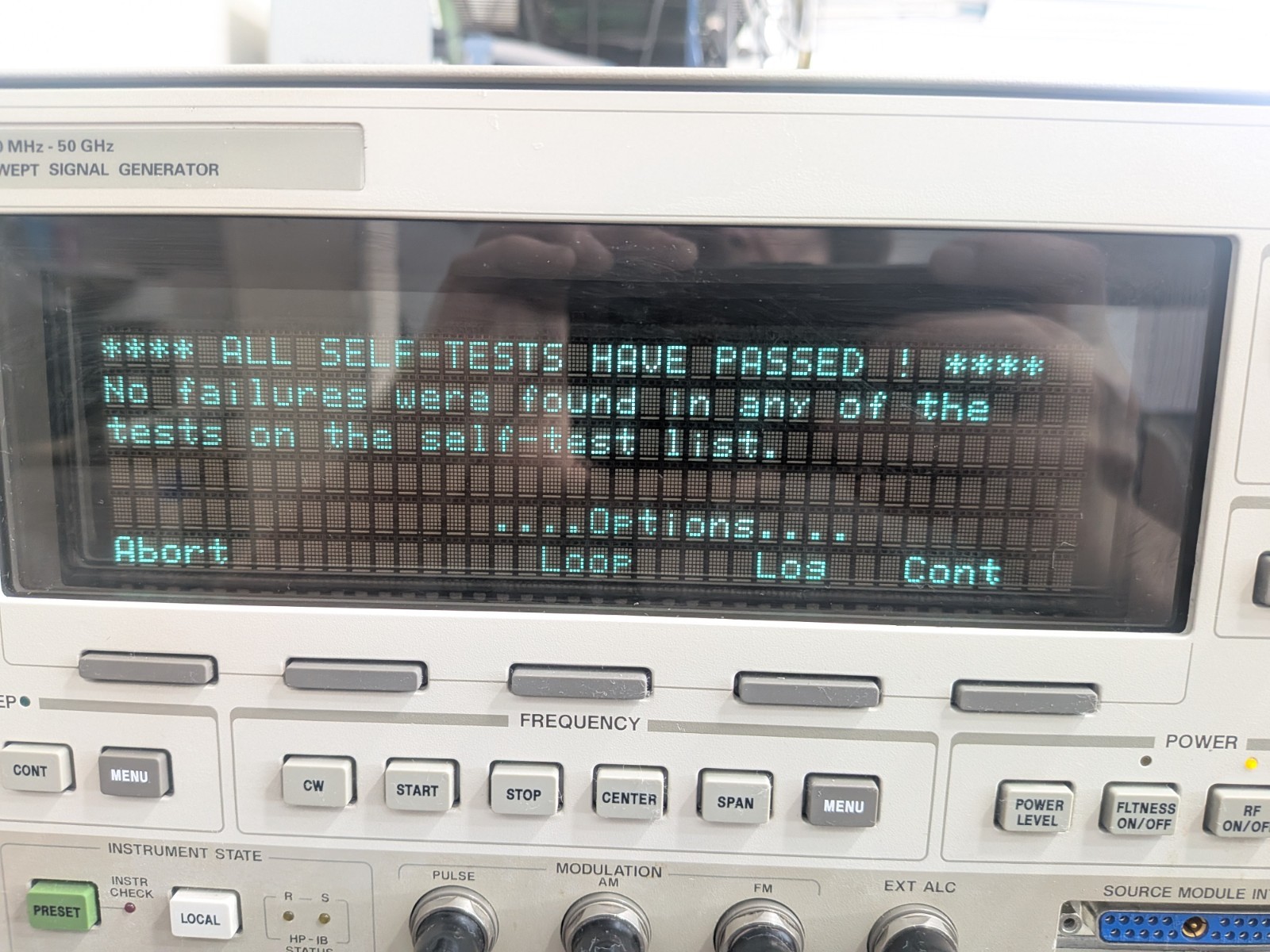

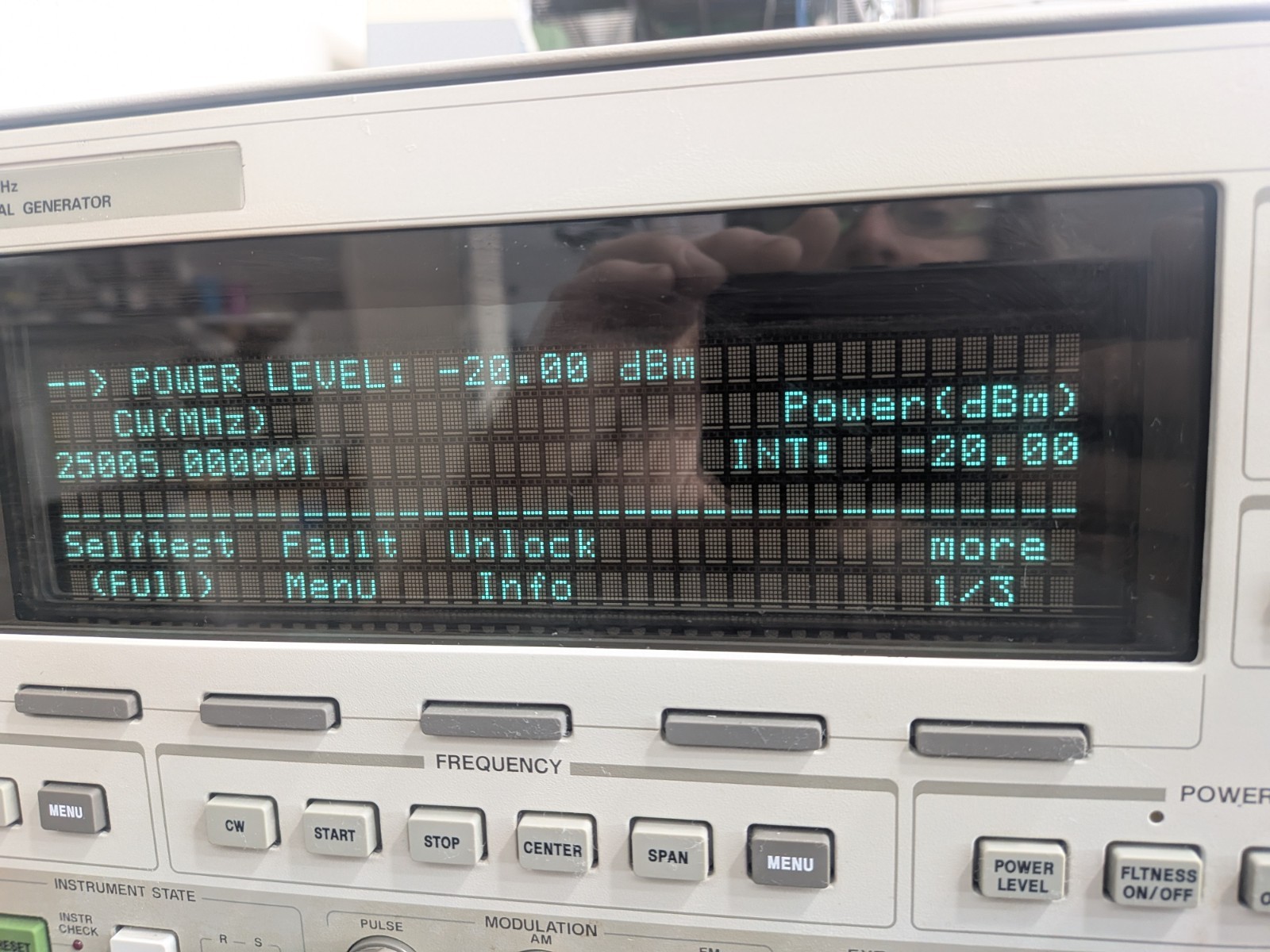

Testing	Passes all self tests; guaranteed to pass all specs
Calibration	Calibration certificate and sticker

Good to know

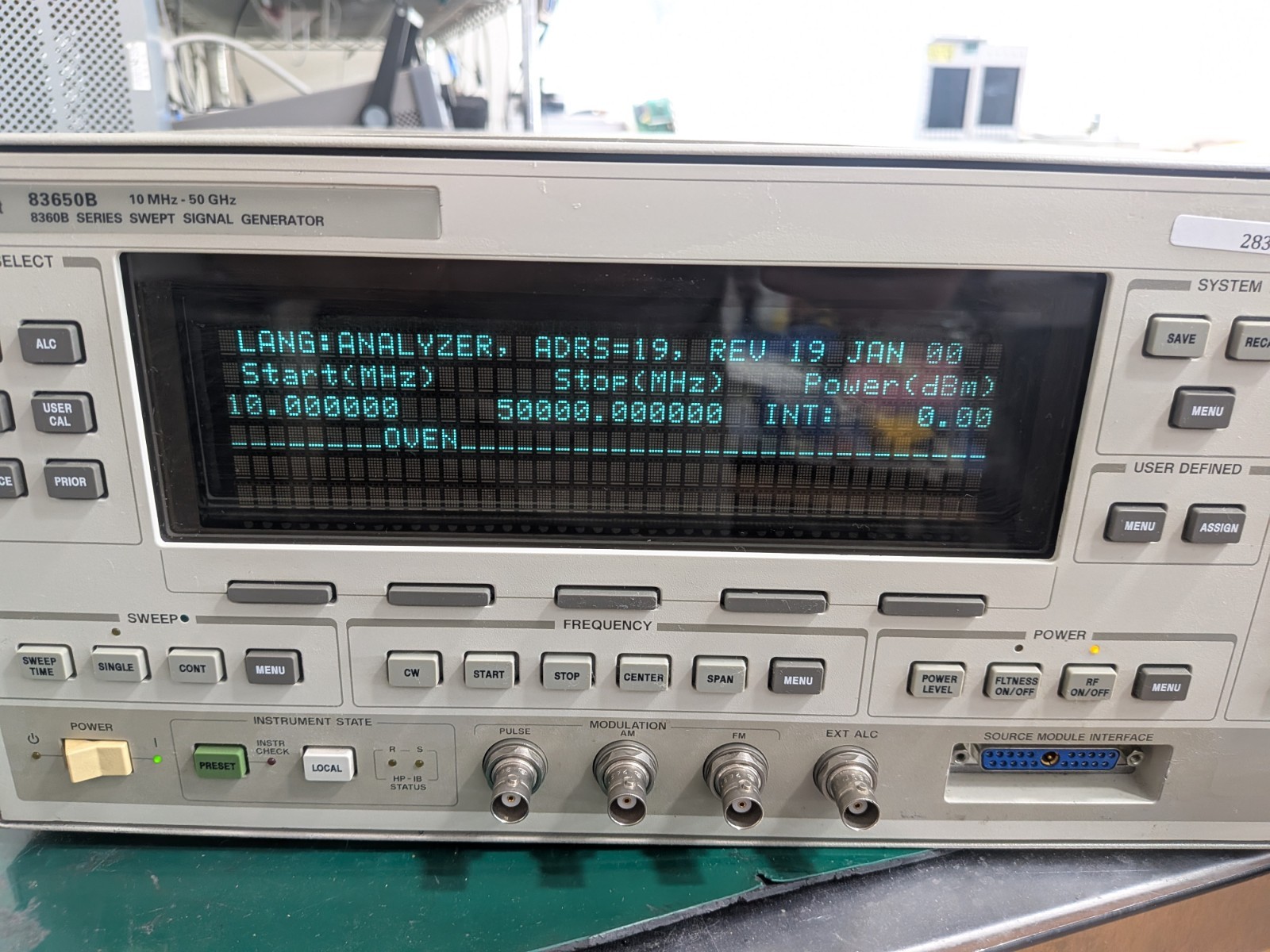

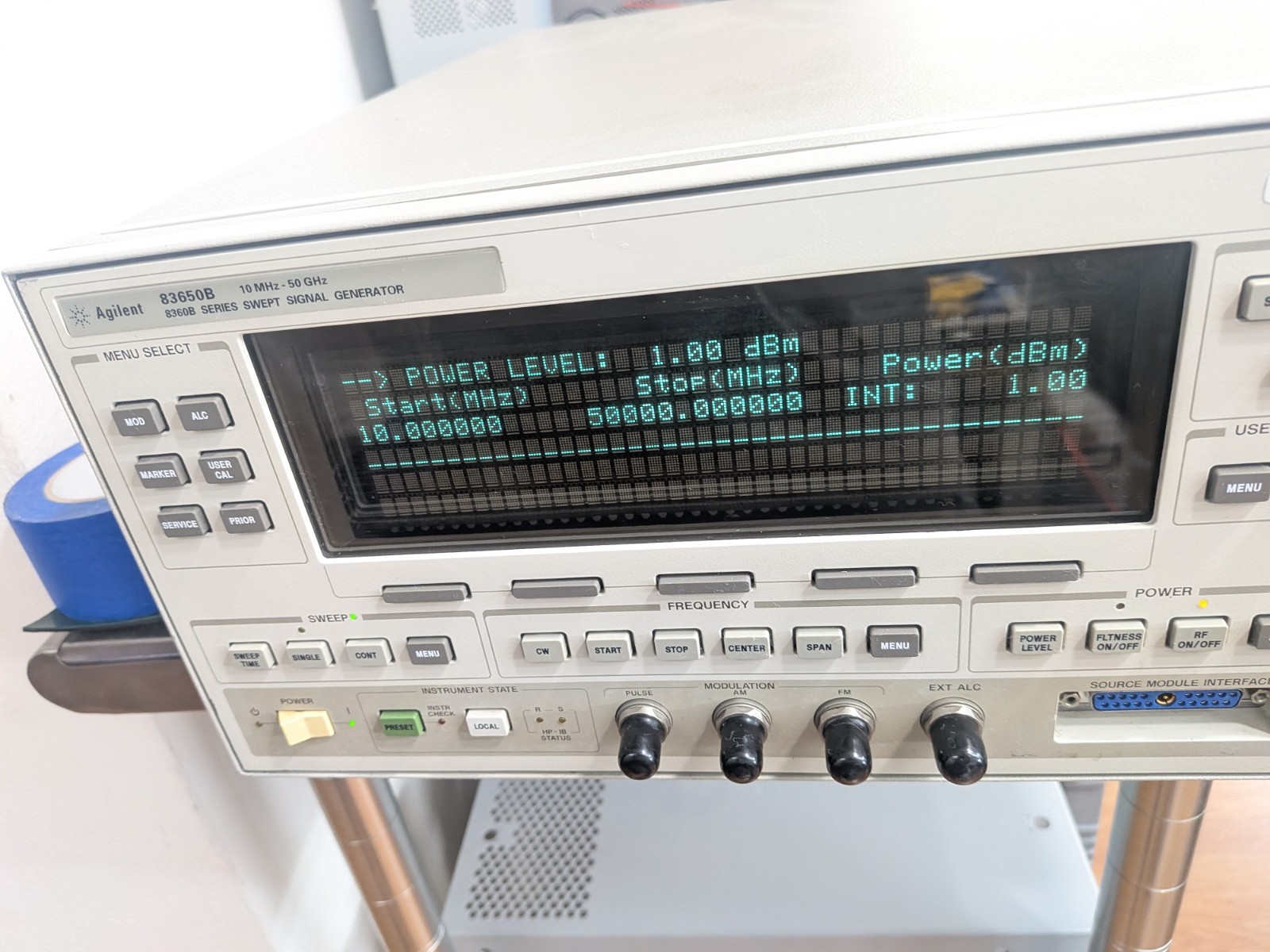

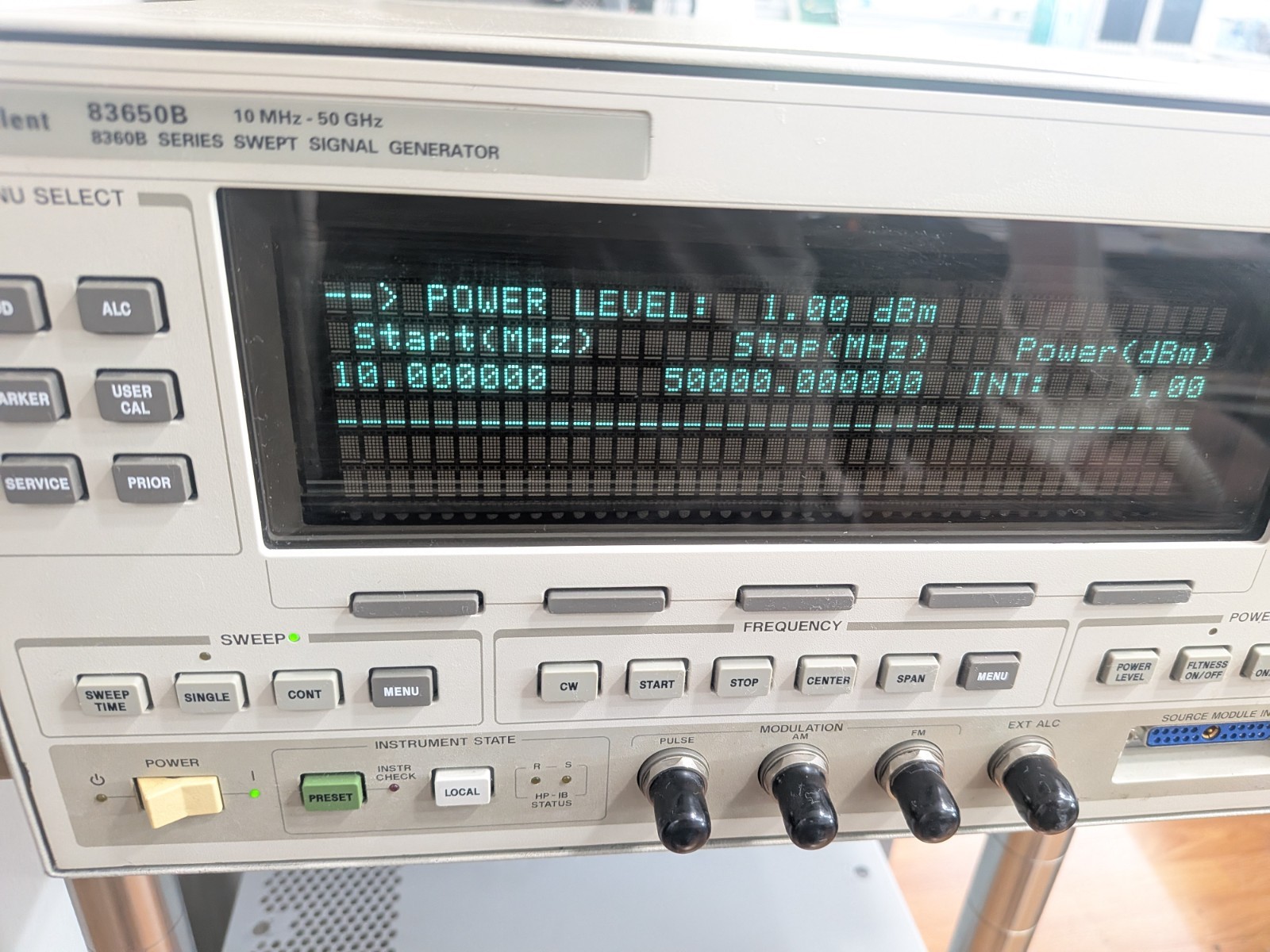

The front label reads 83650B because Agilent labels can't be transferred; the rear label shows the correct model, 83651B.
Available at extra cost: opt 001 step attenuator (with upgraded doubler), opt 002 internal modulation, opt 006 fast pulse.
