Home / Signal & Spectrum Analyzers / Agilent / HP 8565EC
Agilent / HP ·
EB-32073Agilent / HP 8565EC
9 kHz – 50 GHz · Portable spectrum analyzer · NIST calibrated · New LCD
- NIST calibrated
- New LCD
- 30-day warranty
- Options 006, 007, 008
$10,750
● In stock · ships from Diamond Bar, California
Frequency9 kHz – 50 GHz
CalibrationFresh NIST-traceable calibration
ConditionGrade B · normal wear
Warranty30-day warranty
✓ Inspected and function-tested before it ships
✓ Photos are of this exact unit
✓ Includes all bumpers and handles, ac power cord
✓ Packed with care, insured and tracked
✓ Photos are of this exact unit
✓ Includes all bumpers and handles, ac power cord
✓ Packed with care, insured and tracked
Overview

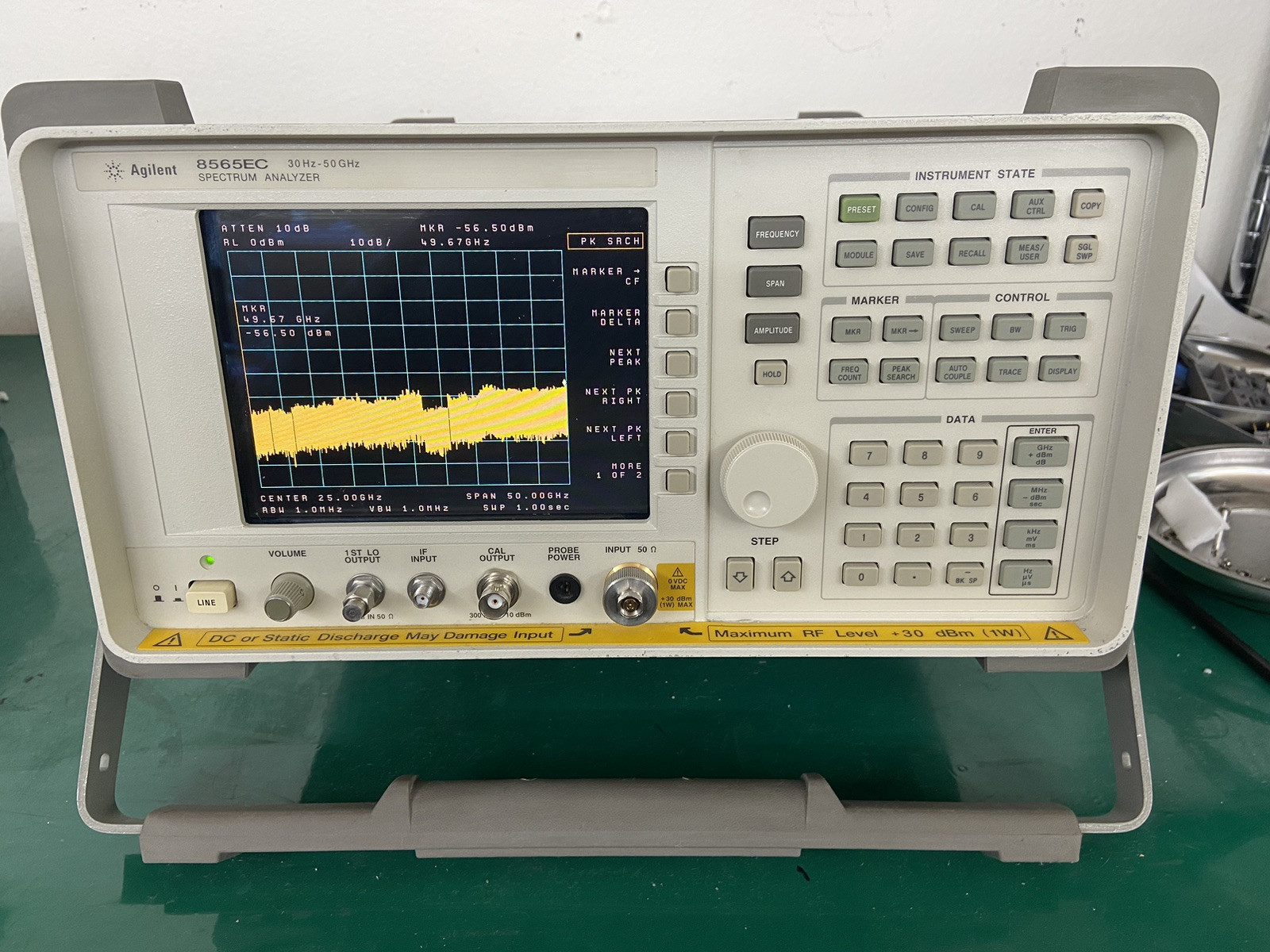

The Agilent / HP 8565EC is a portable microwave spectrum analyzer covering 9 kHz to 50 GHz, or down to 30 Hz with option 006. This unit is calibrated to NIST-traceable standards and has a new LCD.
Installed options
4 options
006Option 856xEC-006 Low-frequency extension- Allows the 8565EC to operate below 9 kHz, down to 30 Hz.
007Option 856xE-007 Fast time domain sweeps- Provides digitized fast time domain sweeps, which are standard on the 8560 EC Series.
008Option 008 Signal identification- Helps tell true input signals from image and multiple responses generated inside the analyzer.
85620A85620A Mass memory module- Plug-in memory module that holds measurement utilities such as phase noise and fast spurious/harmonic measurements.
Key specifications
13 specs
| Manufacturer | Agilent / HP |
| Model | 8565EC |
| Frequency range | 30 Hz to 50 GHz (operation below 9 kHz requires option 006) |
| Resolution bandwidth | 1 Hz to 1 MHz in 1, 3, 10 sequence, plus 2 MHz |
| Displayed average noise level | ≤ –127 dBm at 40 to 50 GHz (1 Hz RBW, 0 dB attenuation) |
| Sweep time, zero span | 50 μs to 6000 s |
| RF input connector | APC 2.4 mm male, 50 Ω |
| Display | Color, approx. 9.6 cm x 13 cm |
| Remote control | GPIB (IEEE-488) |
| Dimensions (w/o handle, cover) | 337 mm W x 187 mm H x 461 mm D |
| Weight (nominal) | 17.3 kg (38 lbs) |
| Condition | Grade B · normal wear · Used, calibrated |
| Stock number | EB-32073 |
Condition & service
| Overall | Fully refurbished, superb condition |
| Testing | Fully tested |
| Calibration | Fresh NIST-traceable calibration, certificate and sticker; data report available |
What's included
2 items
- All bumpers and handles
- AC power cord
Good to know
1 note
- Option 008 (signal identification) can be added at extra cost. Warranty is repair or exchange.
Shipping & warranty
Packed with additional protective packaging and fully insured. Ships from Diamond Bar, California.
Covered by a 30-day warranty. If anything isn't right, contact us and we'll make it right.
Get a quote or ask a question
About the Agilent / HP 8565EC (EB-32073). A real person answers, usually within one business day.
