EB-21191Agilent E4440A PSA
3 Hz – 26.5 GHz · Preamp · External mixing · Phase noise · EMC
- Used
- 26.5 GHz
- Options 1DS, AYZ, 226, 239
- External mixing
$9,750
● In stock · ships from Diamond Bar, California
Frequency3 Hz – 26.5 GHz
CalibrationFresh NIST-traceable 2-year cert and sticker
ConditionGrade B · normal wear
Warranty30-day warranty
✓ Inspected and function-tested before it ships
ⓘ Photos may show a sister unit from the same batch. Ask us for photos of this exact unit.
✓ Packed with care, insured and tracked
ⓘ Photos may show a sister unit from the same batch. Ask us for photos of this exact unit.
✓ Packed with care, insured and tracked
Overview
Agilent E4440A PSA spectrum analyzer covering 3 Hz to 26.5 GHz, or up to 325 GHz with external mixers. Installed options are the 1DS preamplifier, AYZ external mixing, 226 phase noise measurement and 239 EMC measurements.
Installed options
1DSPreamplifier- Built-in preamplifier for 100 kHz to 3 GHz, about 28 dB nominal gain, for a lower noise floor on weak signals.

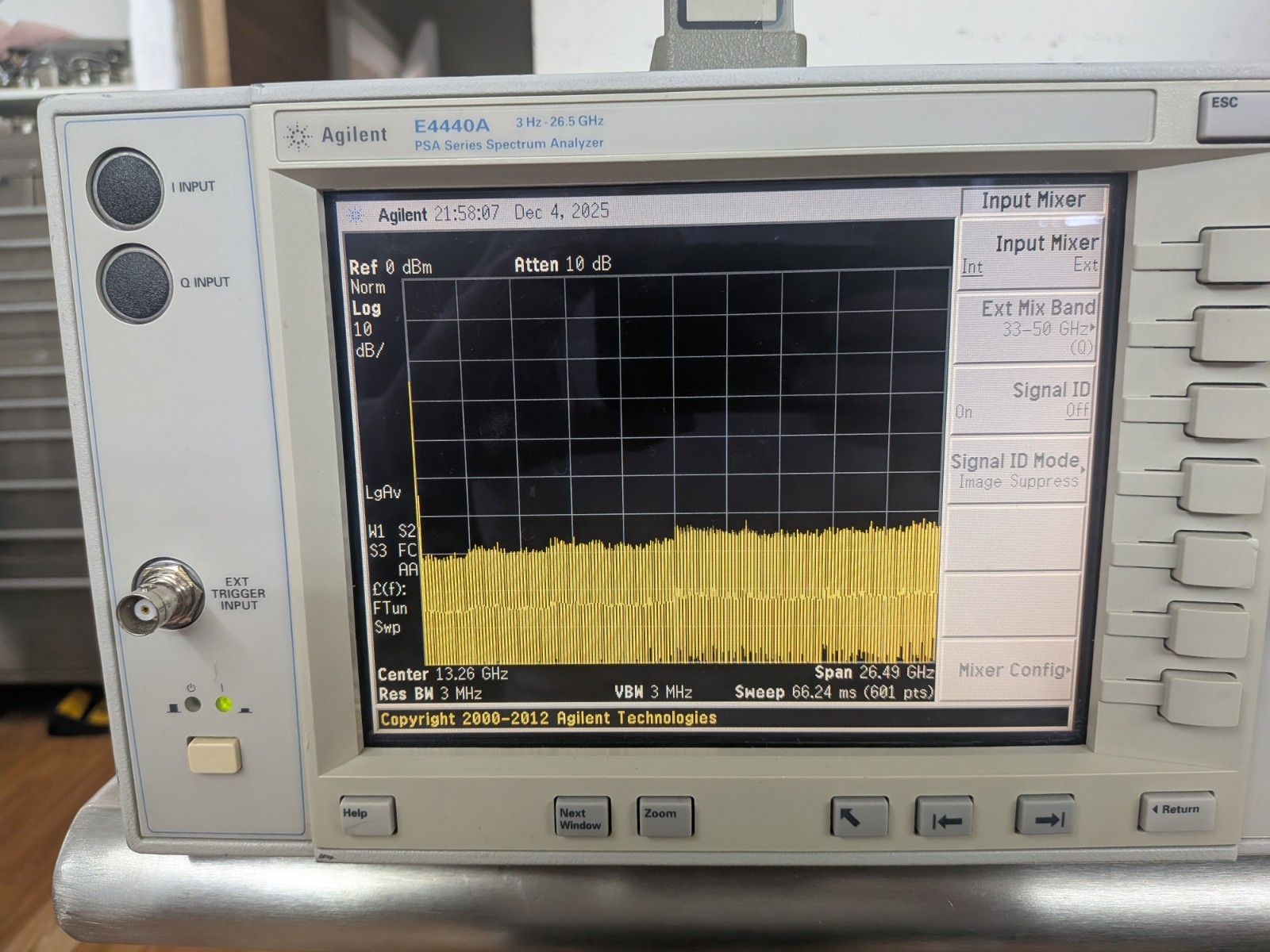

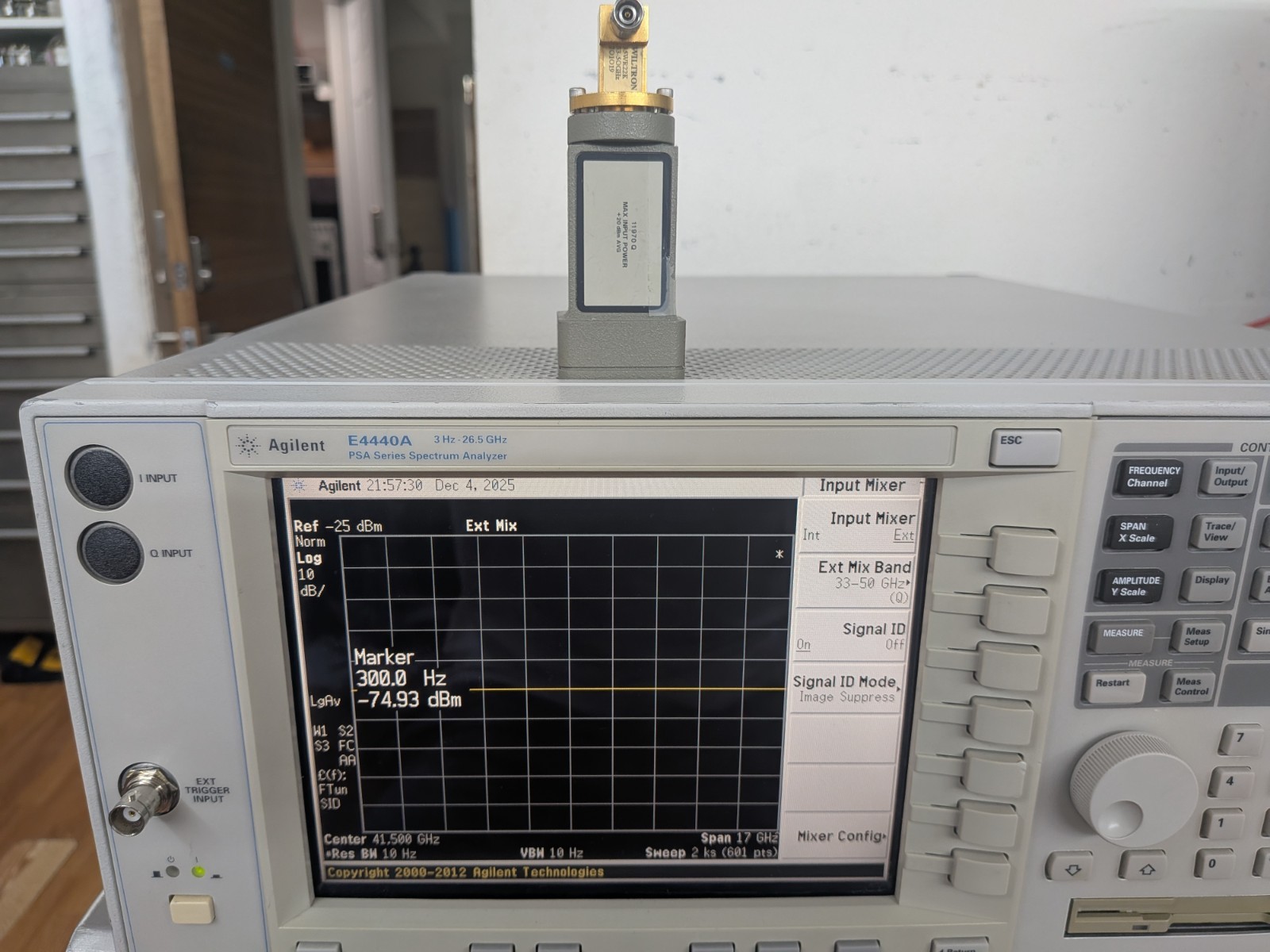

AYZExternal mixing- Lets you connect external waveguide mixers to measure above the analyzer's own 26.5 GHz range.

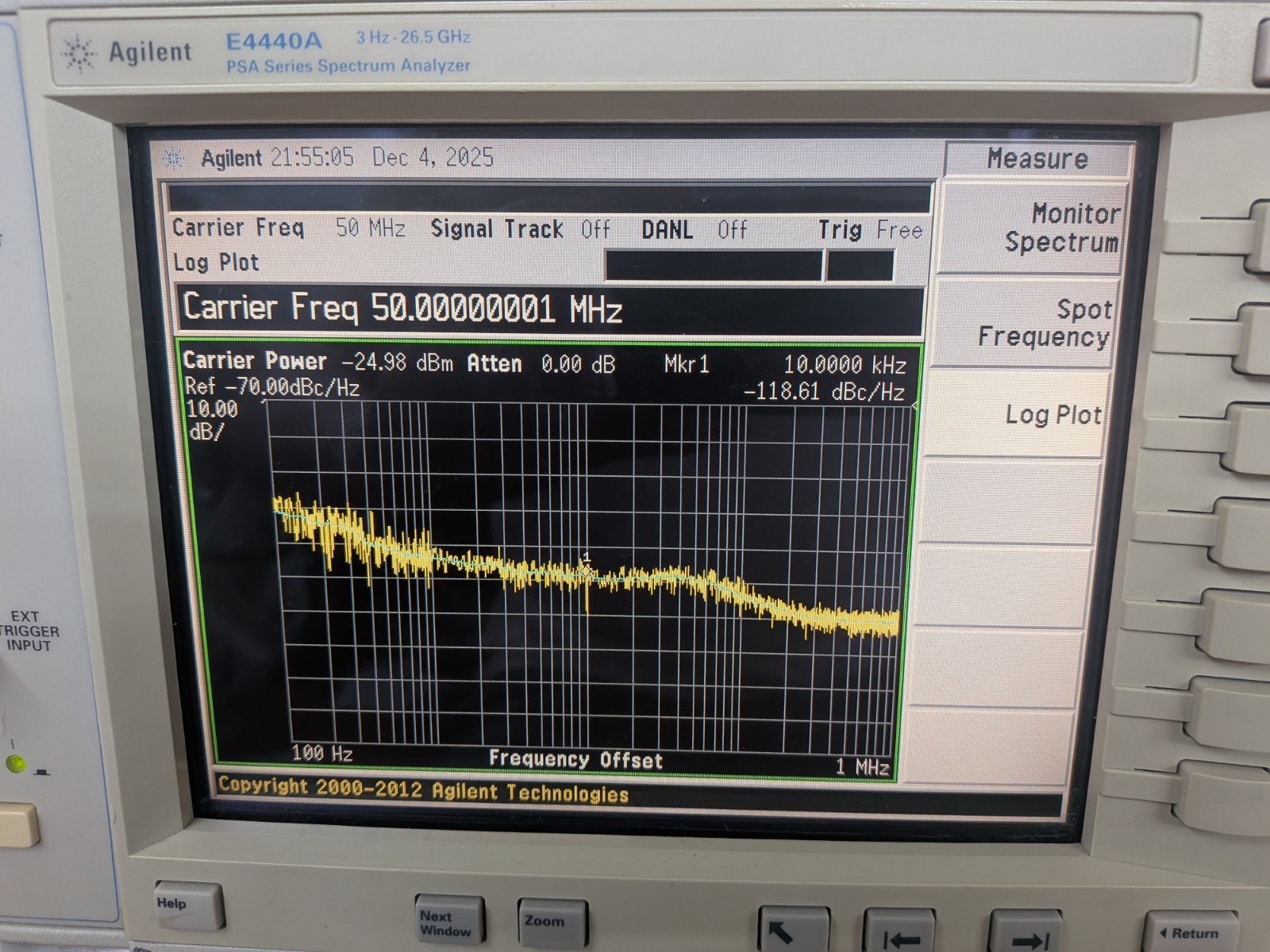

226Phase noise measurement- Adds one-button phase noise measurements with log plots.

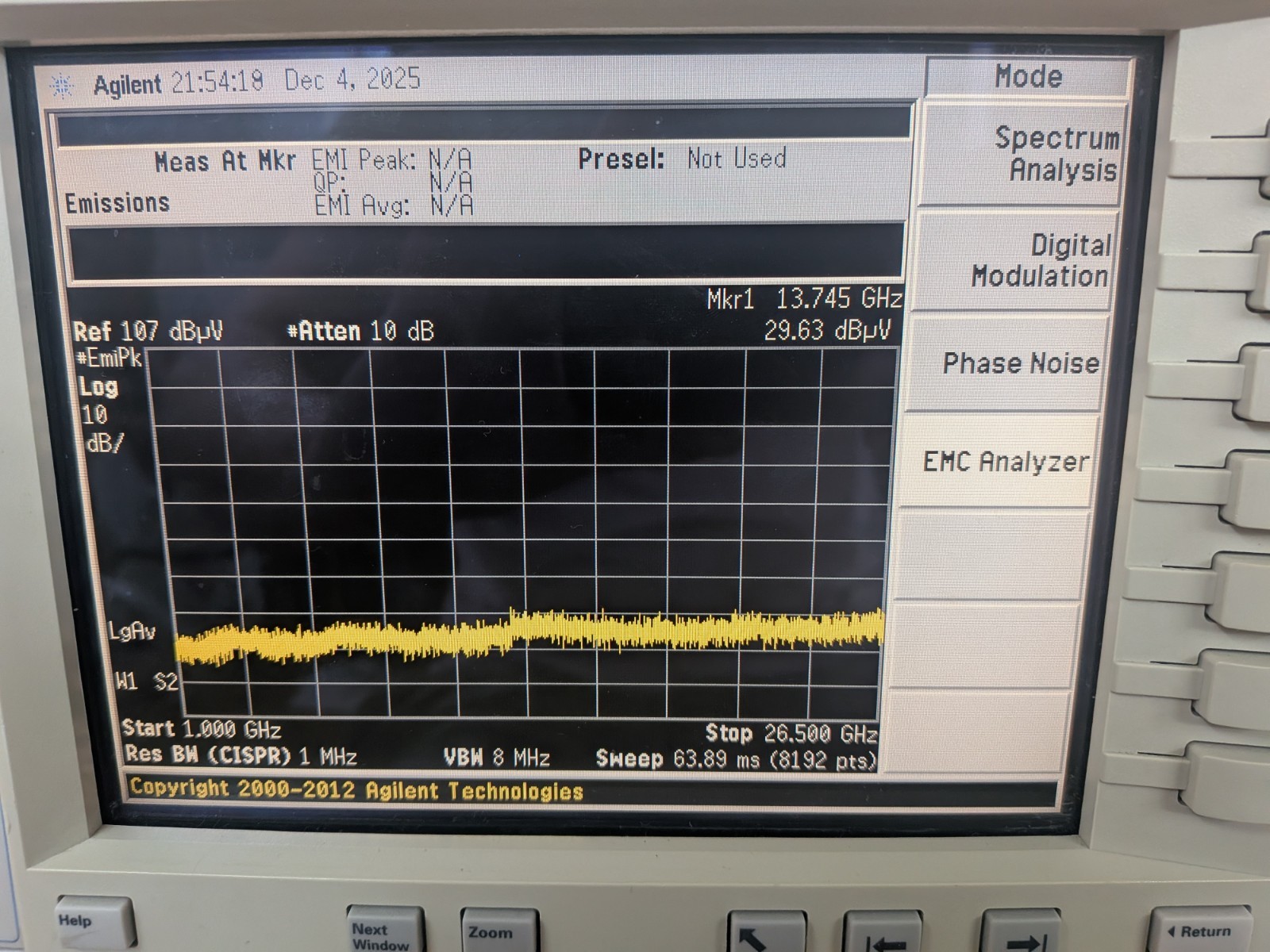

239EMC measurements- Adds CISPR EMI bandwidths and detectors, including quasi-peak, for pre-compliance EMC testing.
Key specifications
| Manufacturer | Agilent |
| Model | E4440A PSA |
| Frequency range | 3 Hz – 26.5 GHz (DC coupled); 20 MHz – 26.5 GHz (AC coupled) |
| With external mixing | Up to 325 GHz |
| Resolution bandwidth | 1 Hz – 3 MHz in 10% steps, plus 4, 5, 6 and 8 MHz |
| Displayed average noise level, preamp on (Opt 1DS) | –169 dBm at 10 MHz – 500 MHz (spec); 1 Hz RBW, 0 dB attenuation |
| Input attenuator | 0 – 70 dB in 2 dB steps |
| Maximum safe input level | +30 dBm (1 W) average total power |
| EMI bandwidths (CISPR) | 200 Hz, 9 kHz, 120 kHz, 1 MHz |
| Trace points | 101 to 8192 (span 10 Hz or more) |
| Frequency reference aging | ±1 x 10⁻⁷ per year |
| Condition | Grade B · normal wear · Used |
| Stock number | EB-21191 |
Condition & service
| Overall | Used, display bright, keys clean |
| Testing | Fully tested, no issues found |
| Calibration | Fresh NIST-traceable 2-year cert and sticker; data available; free recalibration every 2 years through the seller |
Good to know
- Noise figure (opt 219) can be added at extra cost (about a week).
Shipping & warranty
Packed with additional protective packaging and fully insured. Ships from Diamond Bar, California.
Covered by a 30-day warranty. If anything isn't right, contact us and we'll make it right.
