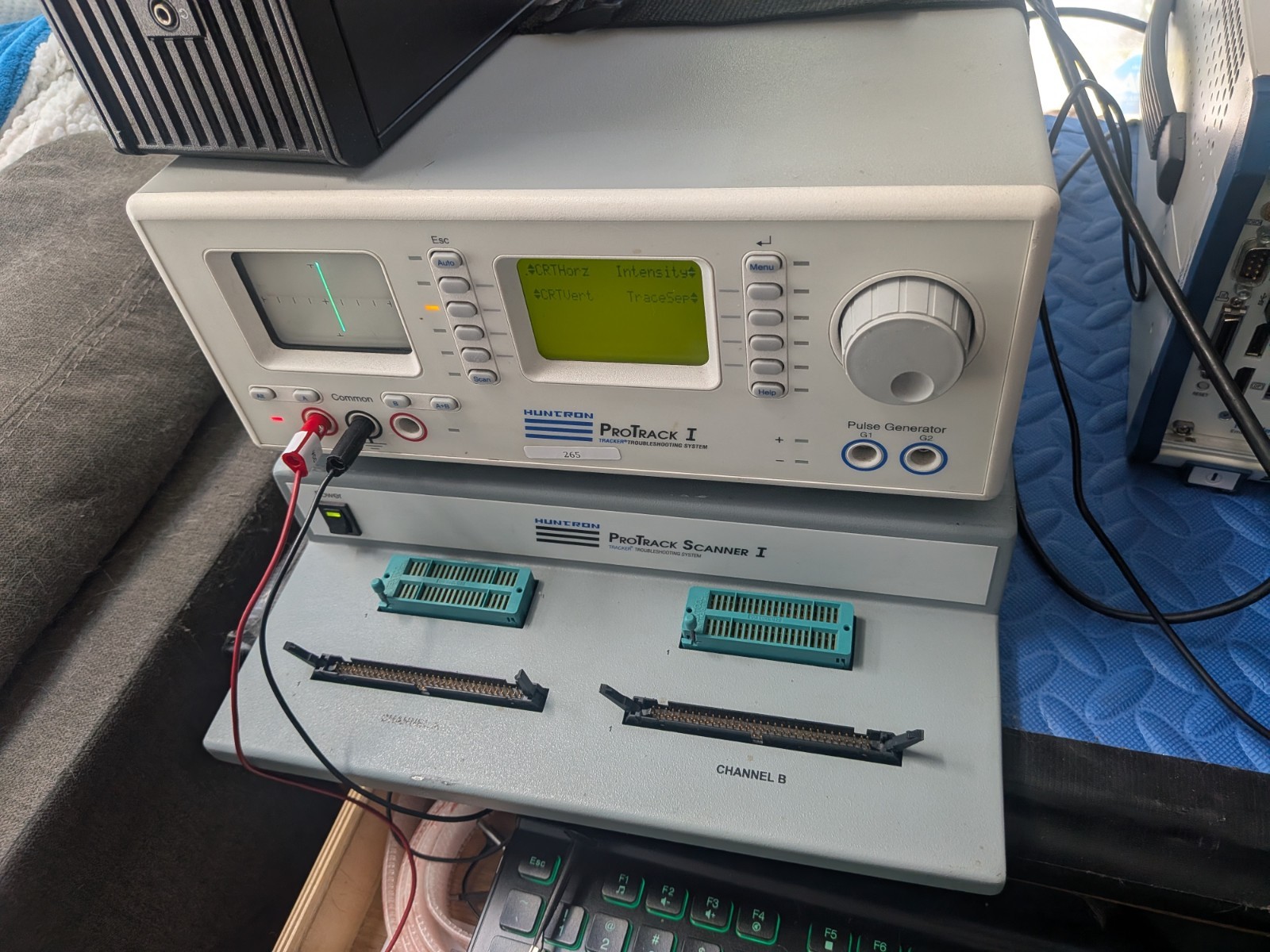

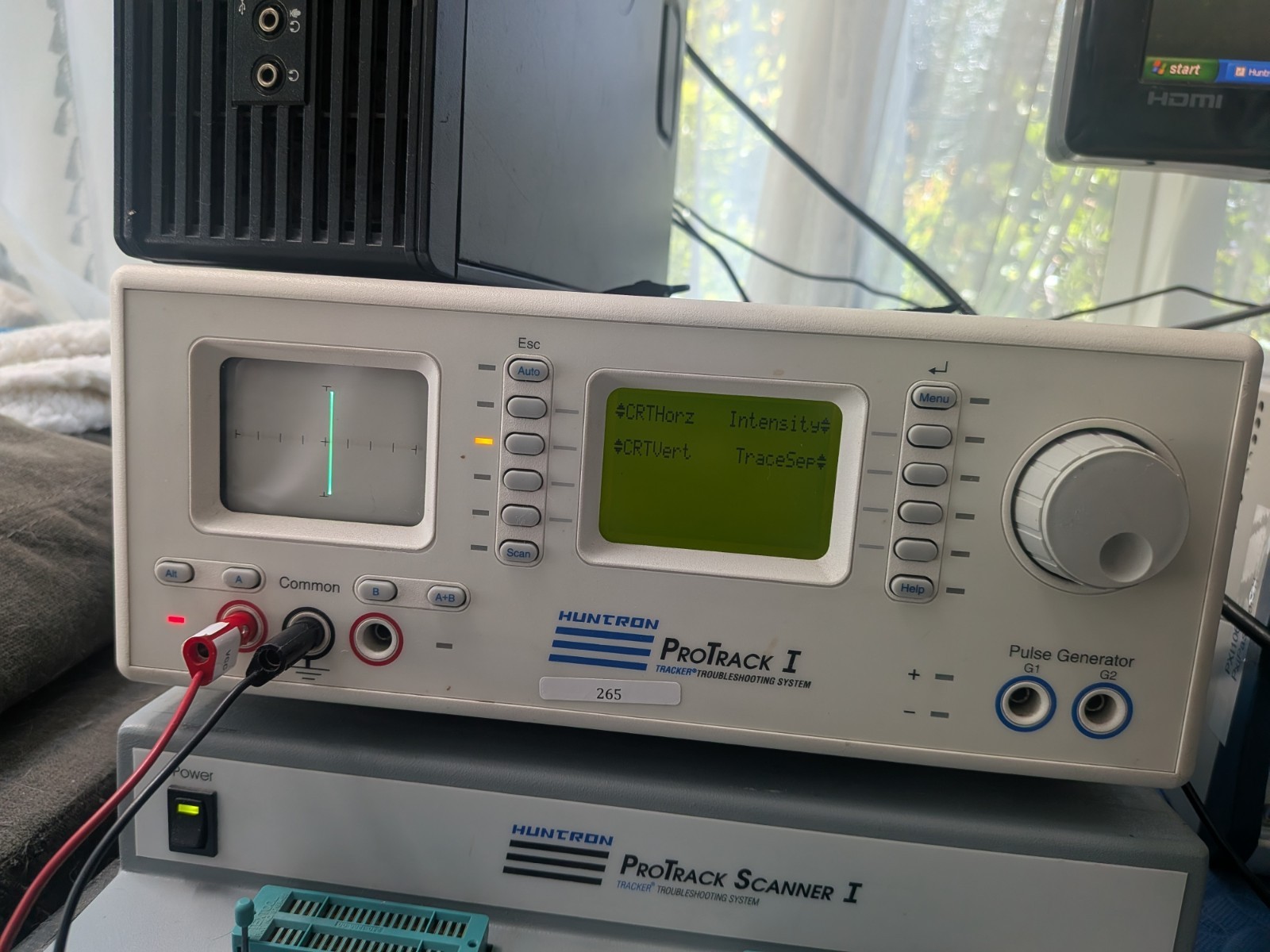

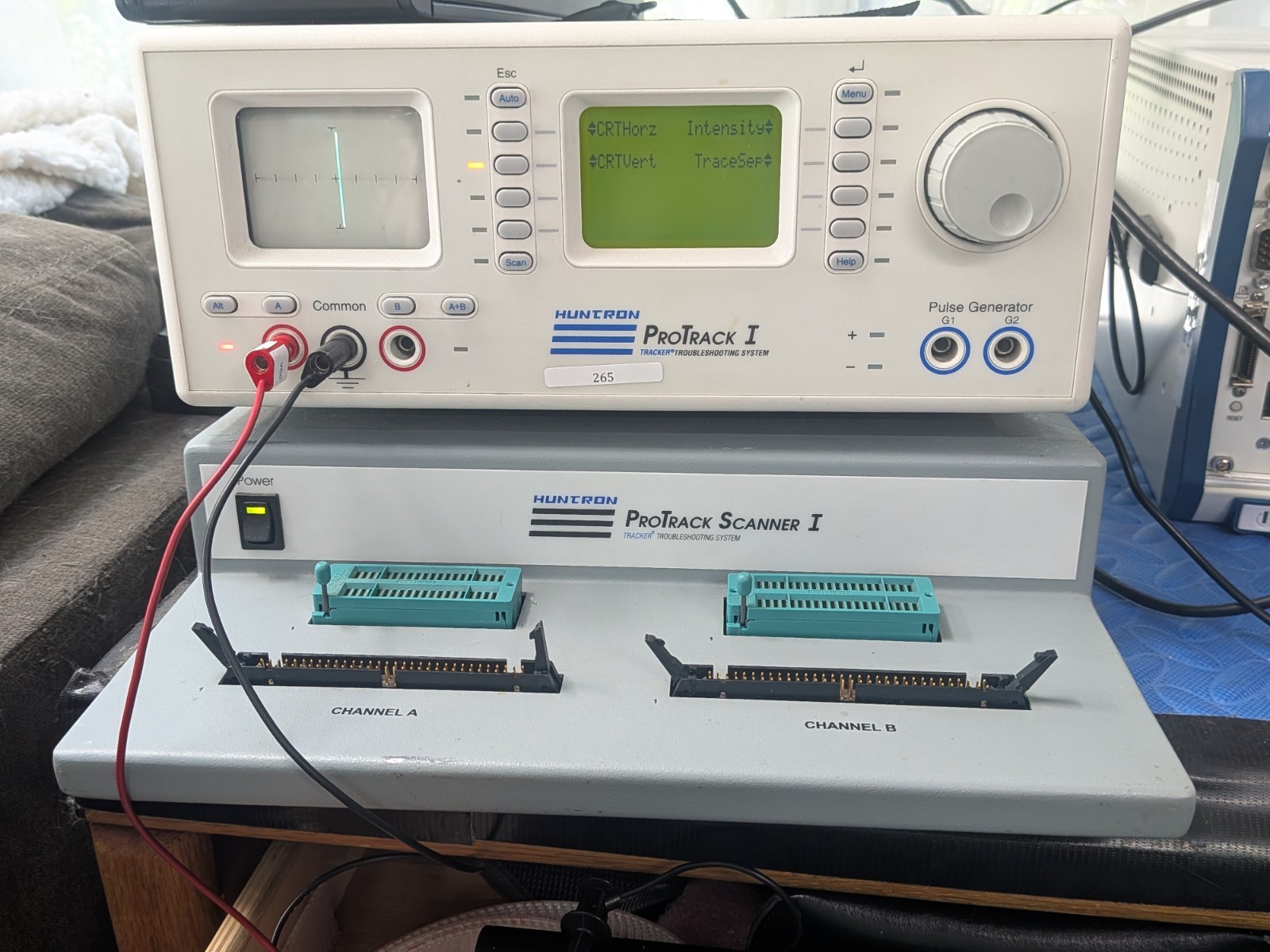

Huntron ProTrack I Model 20

Analog signature (V-I) analysis · 2 channels · 200 mA pk max · 20 Hz–5 kHz · ±20 V

Fully tested
Superb condition
Computer included
30-day warranty

$3,409

● In stock · ships from Diamond Bar, California

Frequency20 Hz – 5 kHz

CalibrationInspected & tested

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships
✓ Photos are of this exact unit

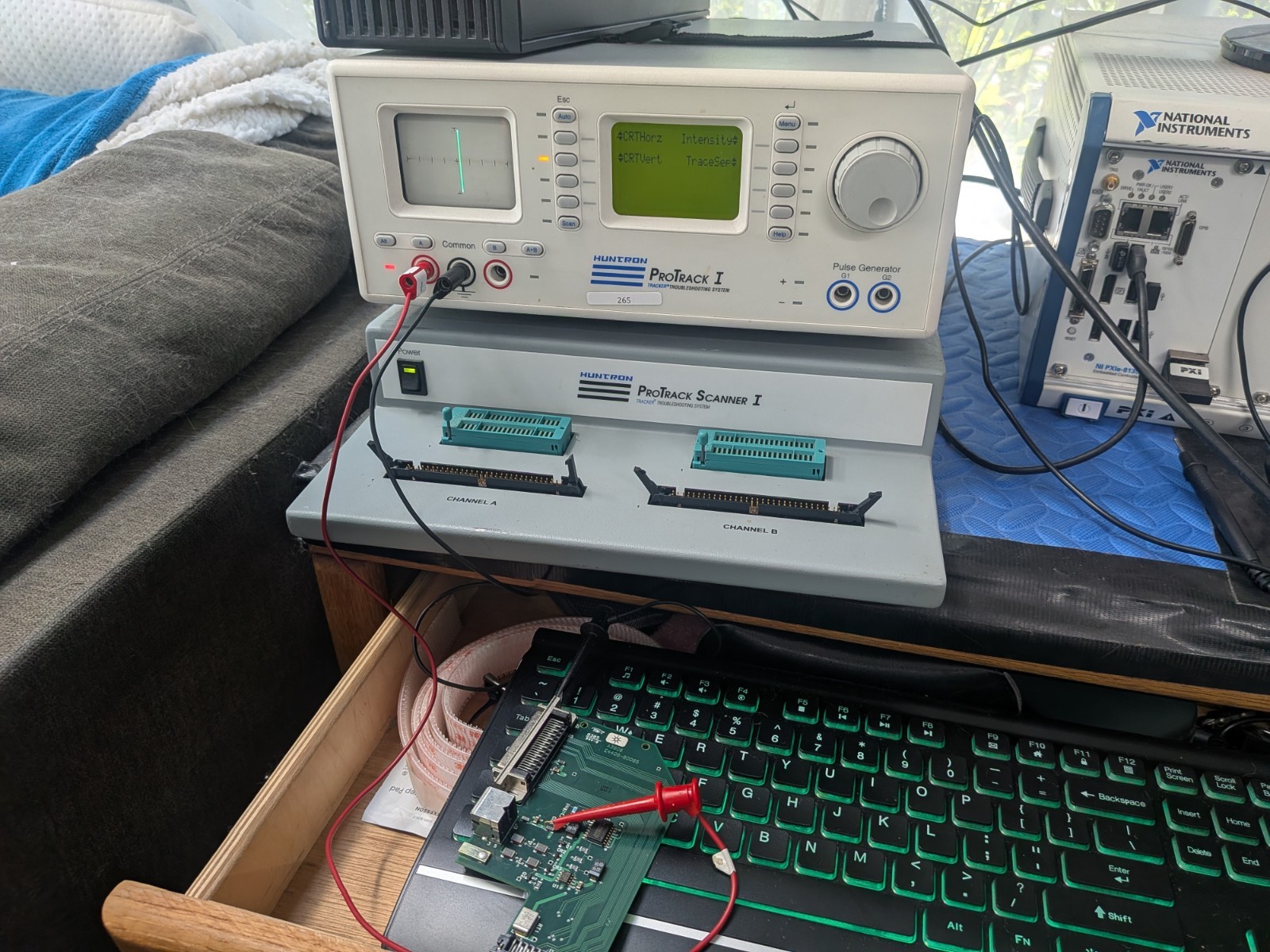

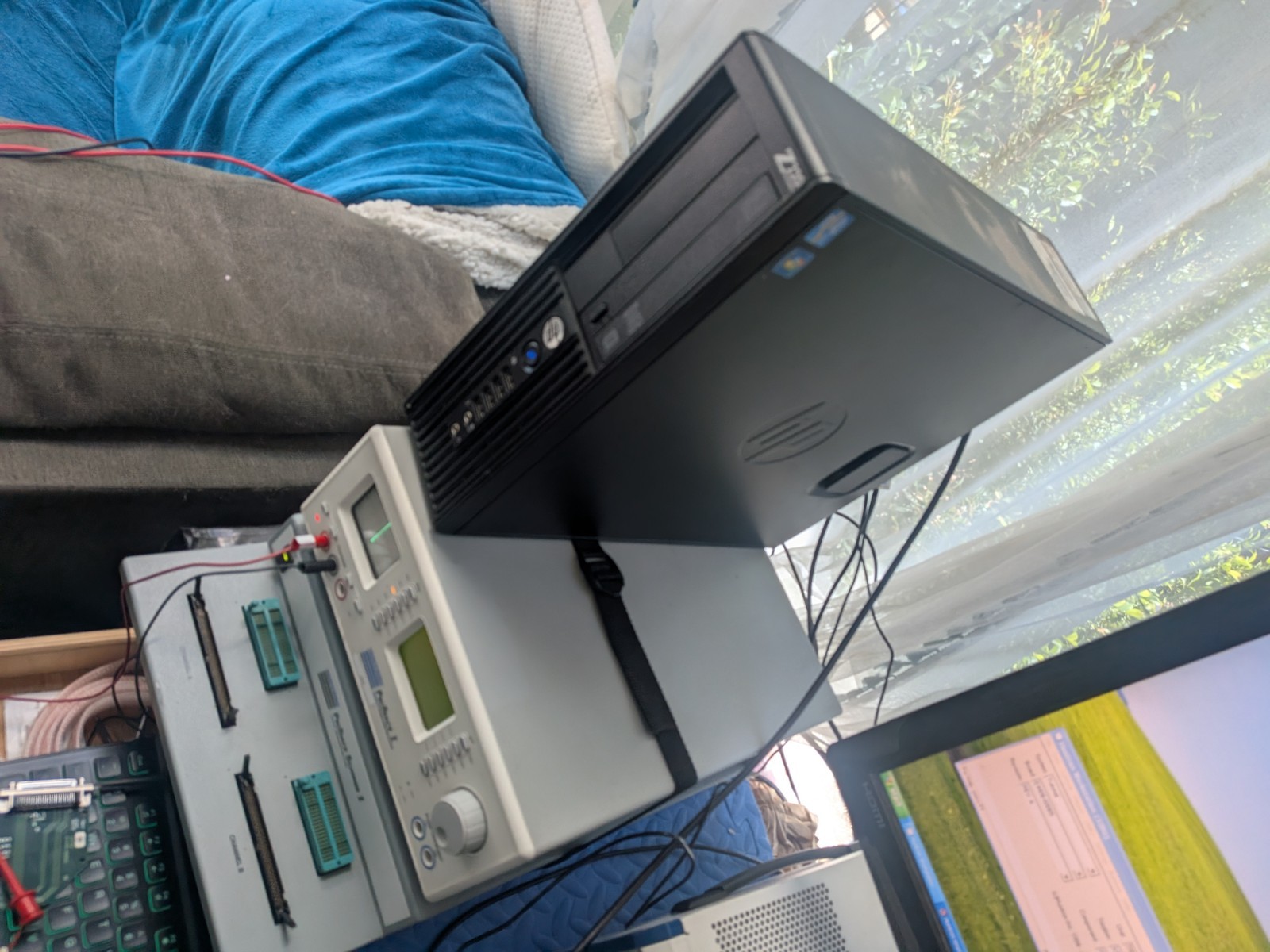

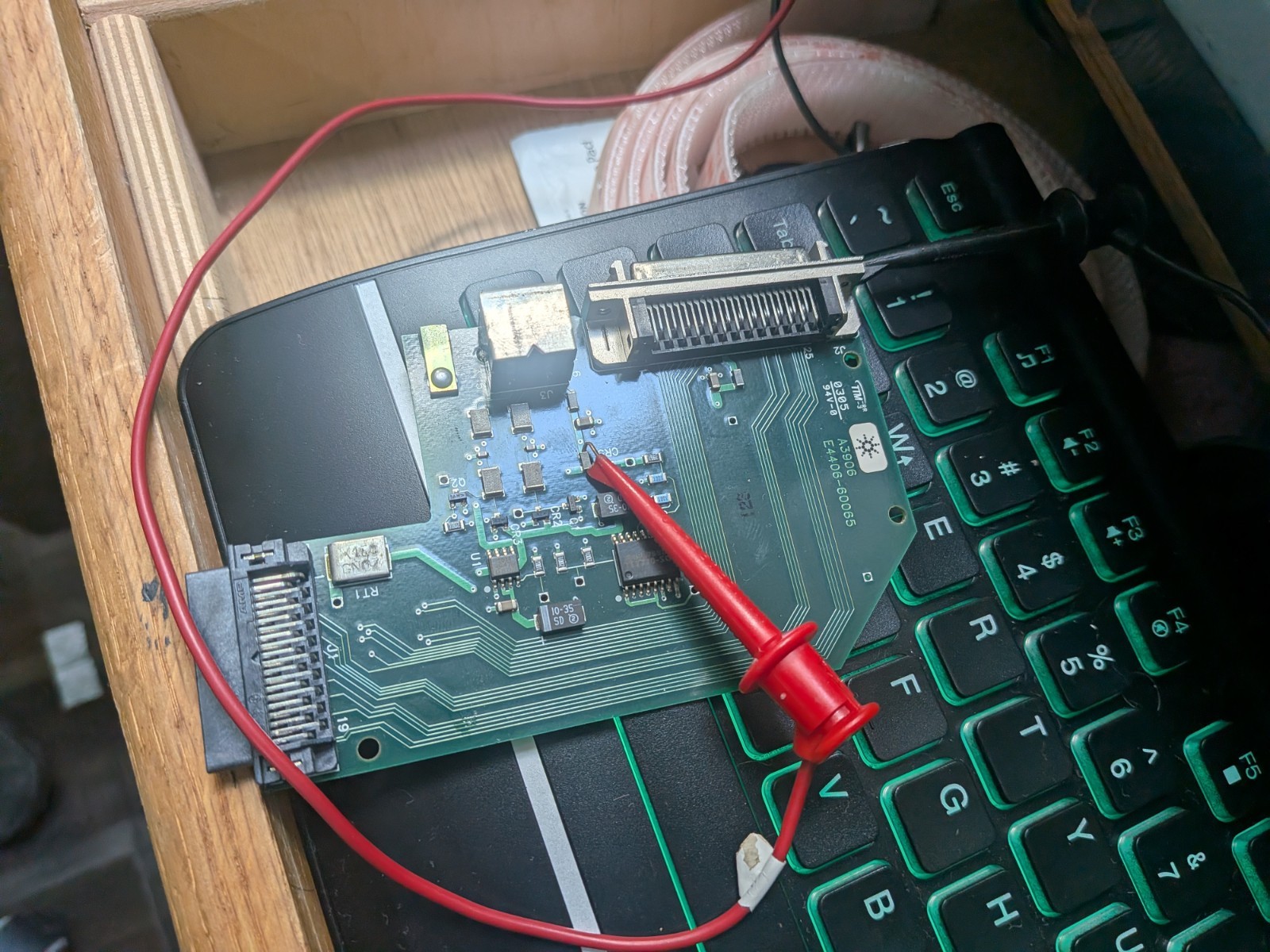

✓ Includes tracker model 20, computer (cpu) with protrack, many test leads and connections and more
✓ Packed with care, insured and tracked

Overview

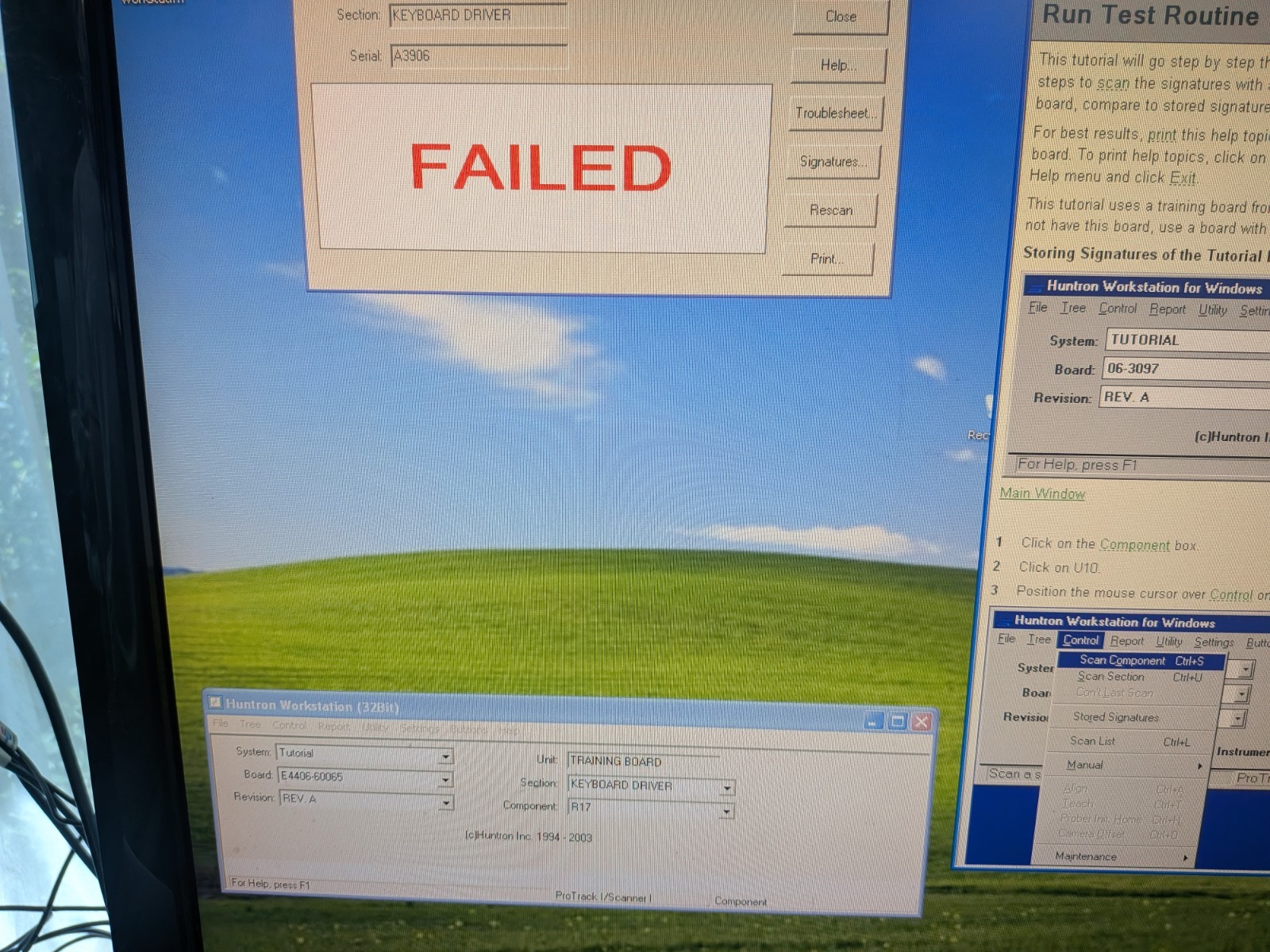

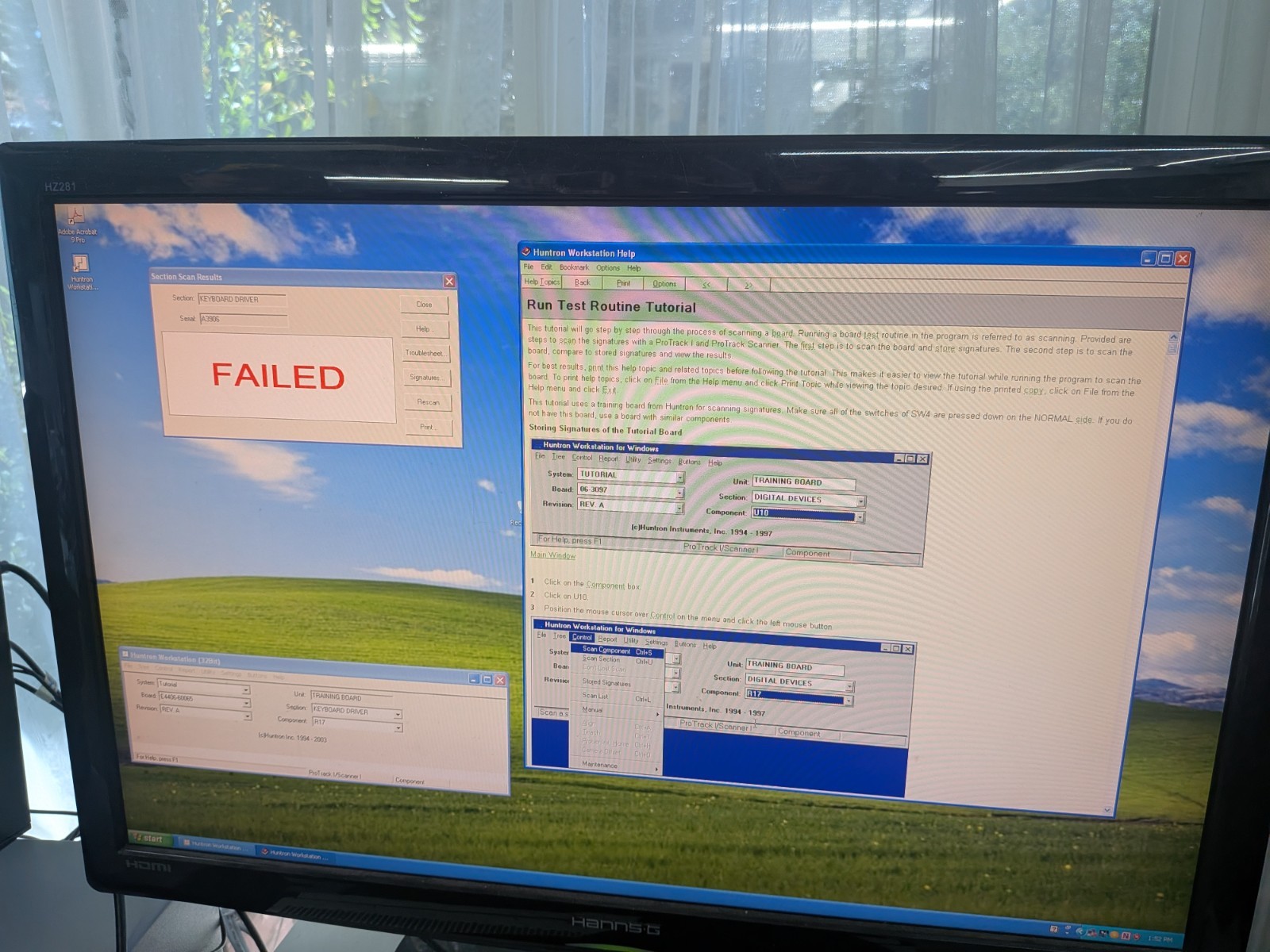

The Huntron ProTrack I Model 20 is a programmable analog signature (V-I curve) analysis tracker that checks components and boards without applying power. This unit is fully tested and includes the computer with ProTrack software.

Key specifications

14 specs

Manufacturer	Huntron
Model	ProTrack I Model 20
Frequency range	20 Hz – 5 kHz
Test signal	Current-limited sine wave
Open circuit voltage	24 selections, 200 mV to 20 V peak
Source resistance	16 selections, 10 Ω to 100 kΩ
Frequency	36 selections, 20 Hz to 5 kHz
Maximum current	200 mA peak
Channels	2 (display modes A, B, Alt, A+B)
Display	2.8 in monochrome CRT; 128 x 64 pixel graphic LCD
Power	90 to 250 VAC, 47 to 63 Hz, 30 W
Dimensions / weight	11.6 x 4.5 x 15 in (W x H x D); 10 lb
Condition	Grade B · normal wear · Used
Stock number	EB-97875
