Agilent E8358A PNA

300 kHz – 9 GHz · 2-port VNA · Time domain (opt 010) · Calibrated

Used, calibrated
300 kHz – 9 GHz
Time domain (opt 010)
2-port, 4 receiver

$9,750

● In stock · ships from Diamond Bar, California

Frequency300 kHz – 9 GHz

CalibrationCalibrated

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships

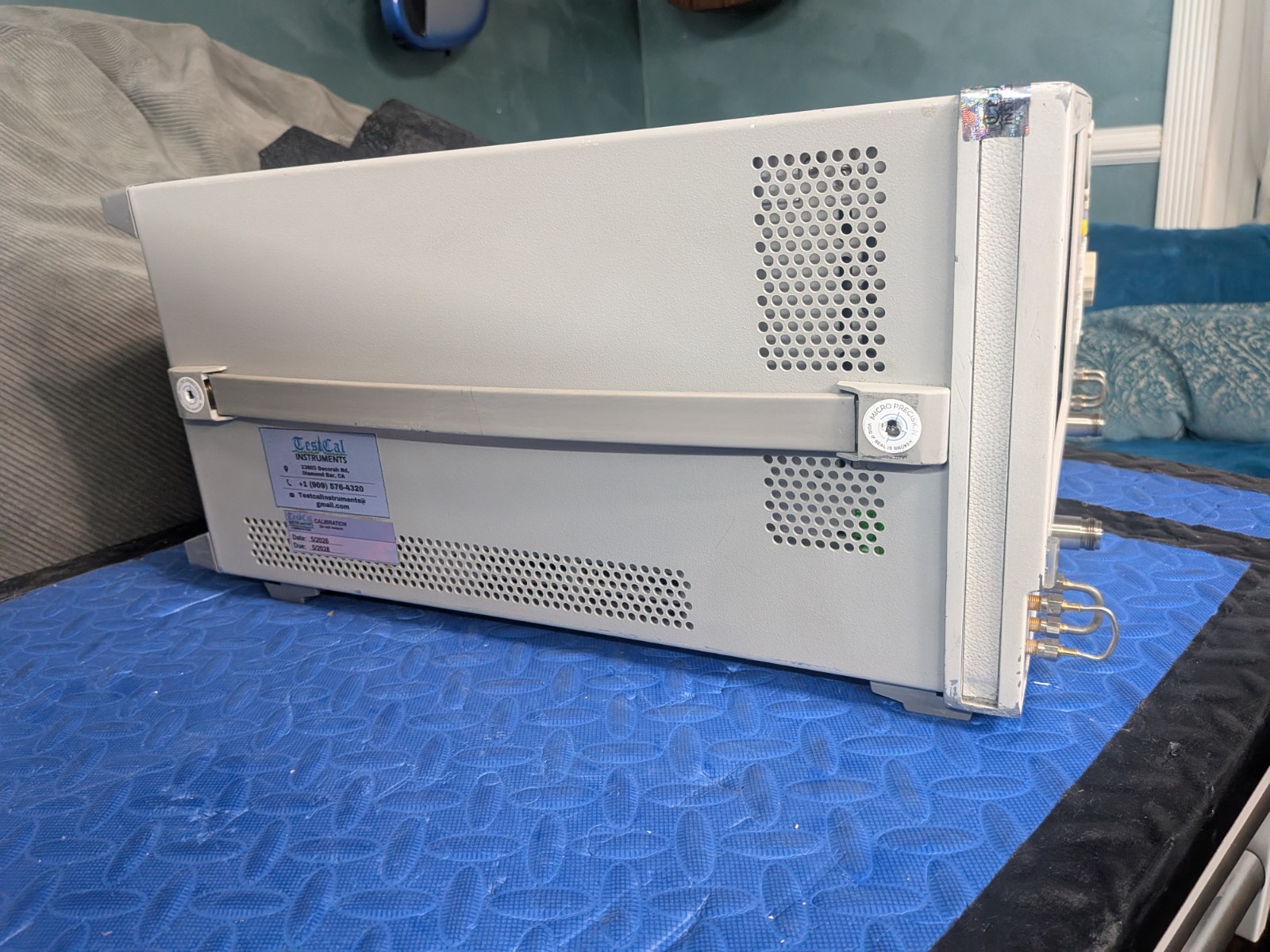

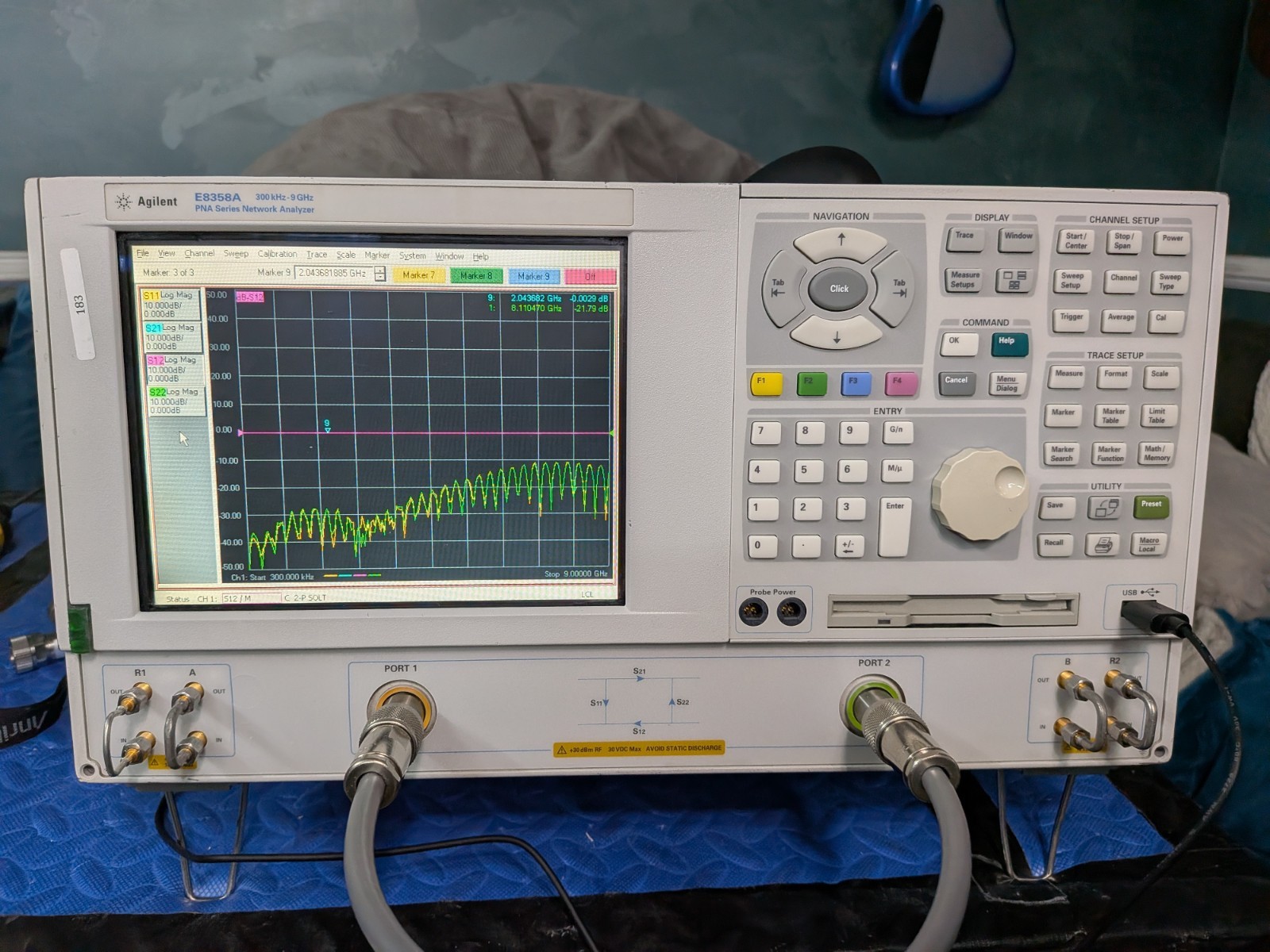

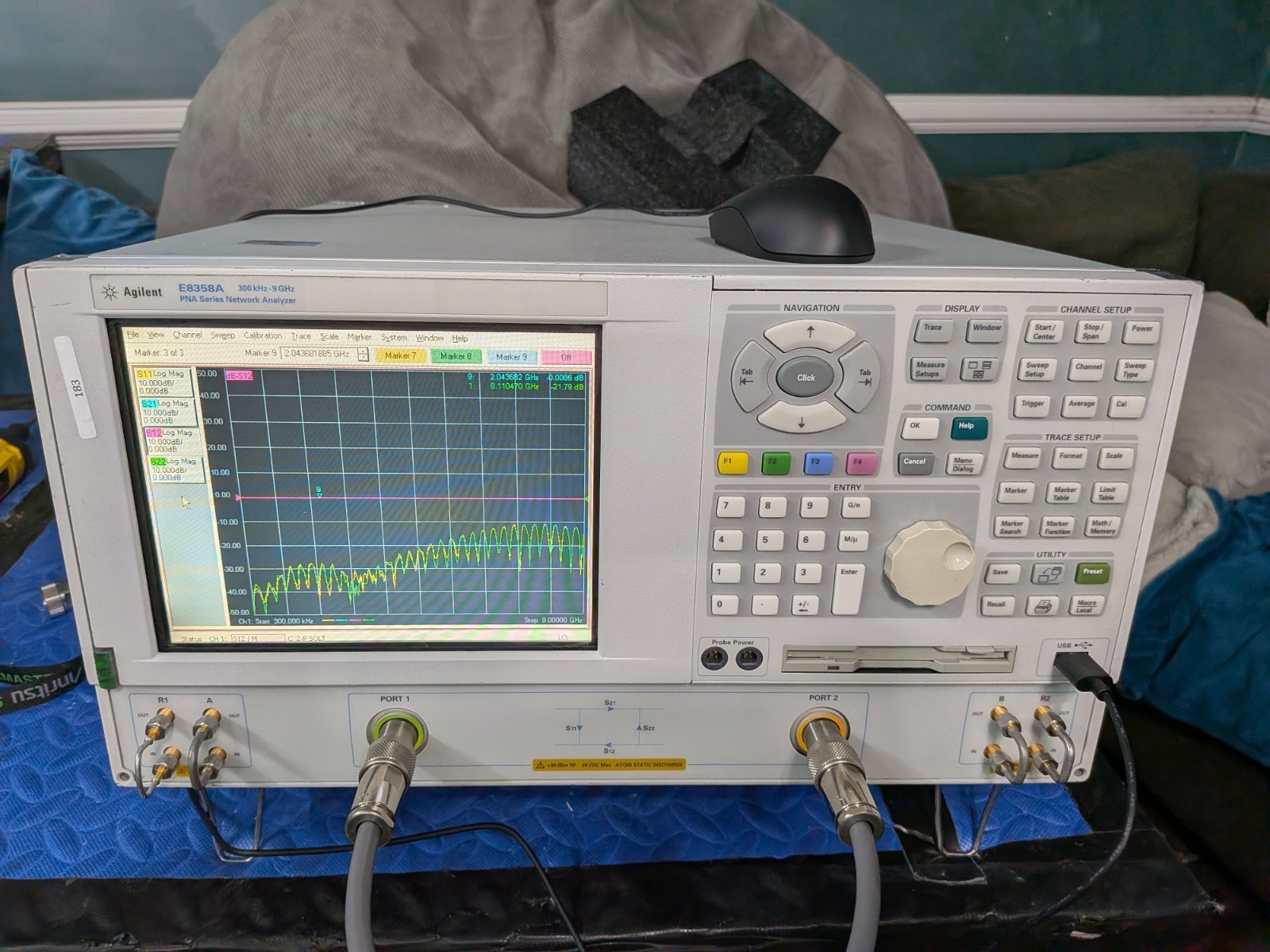

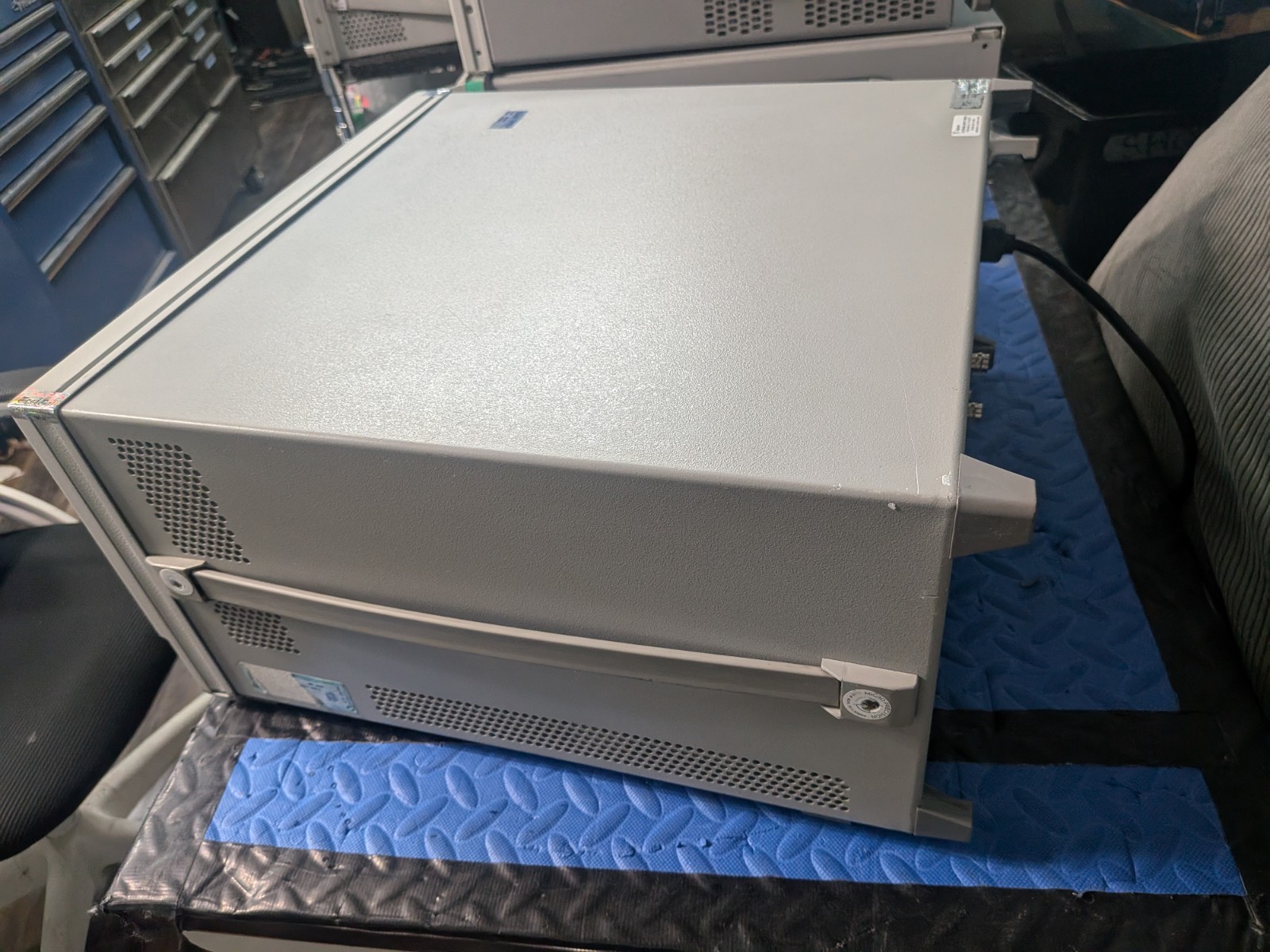

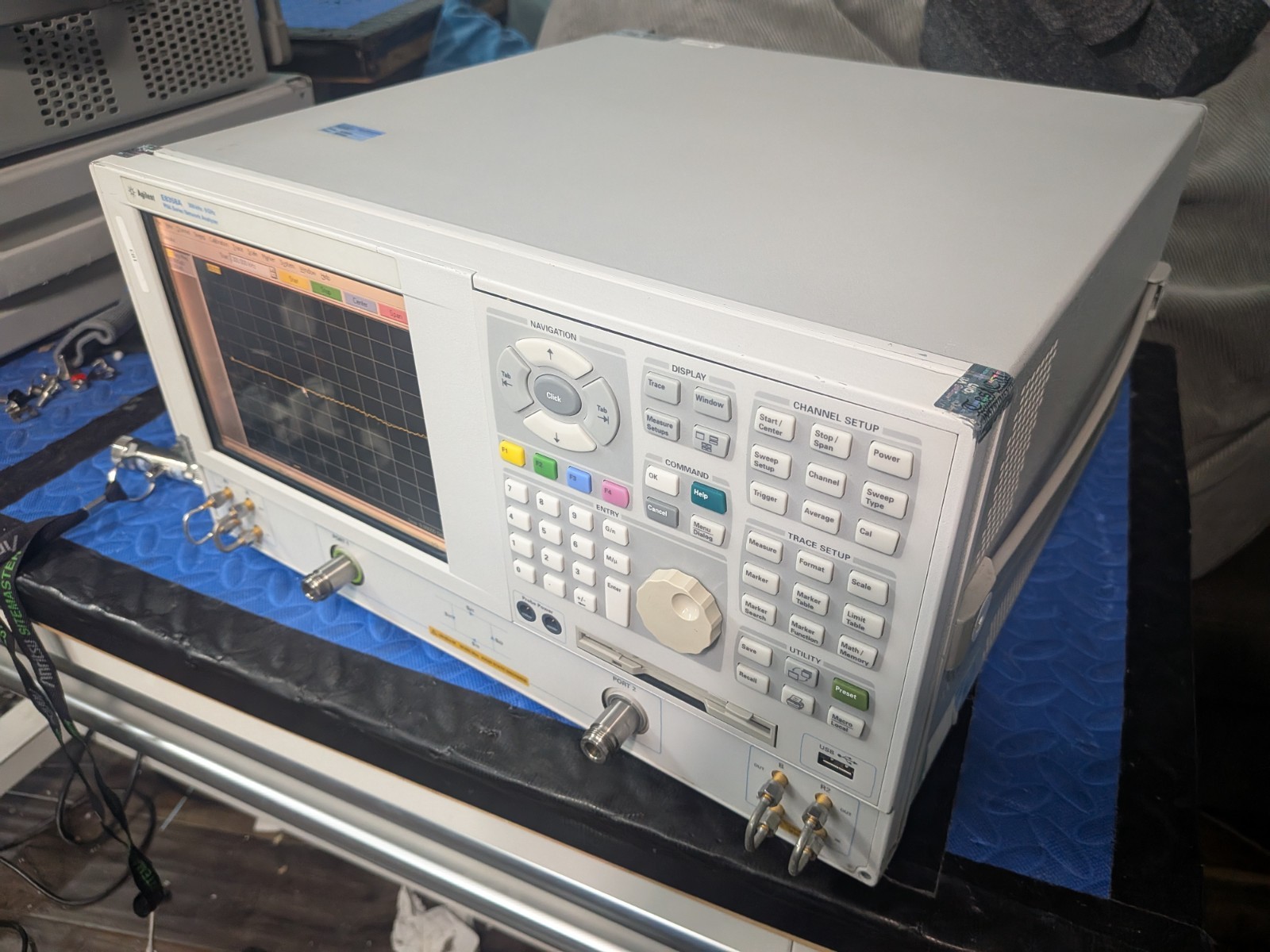

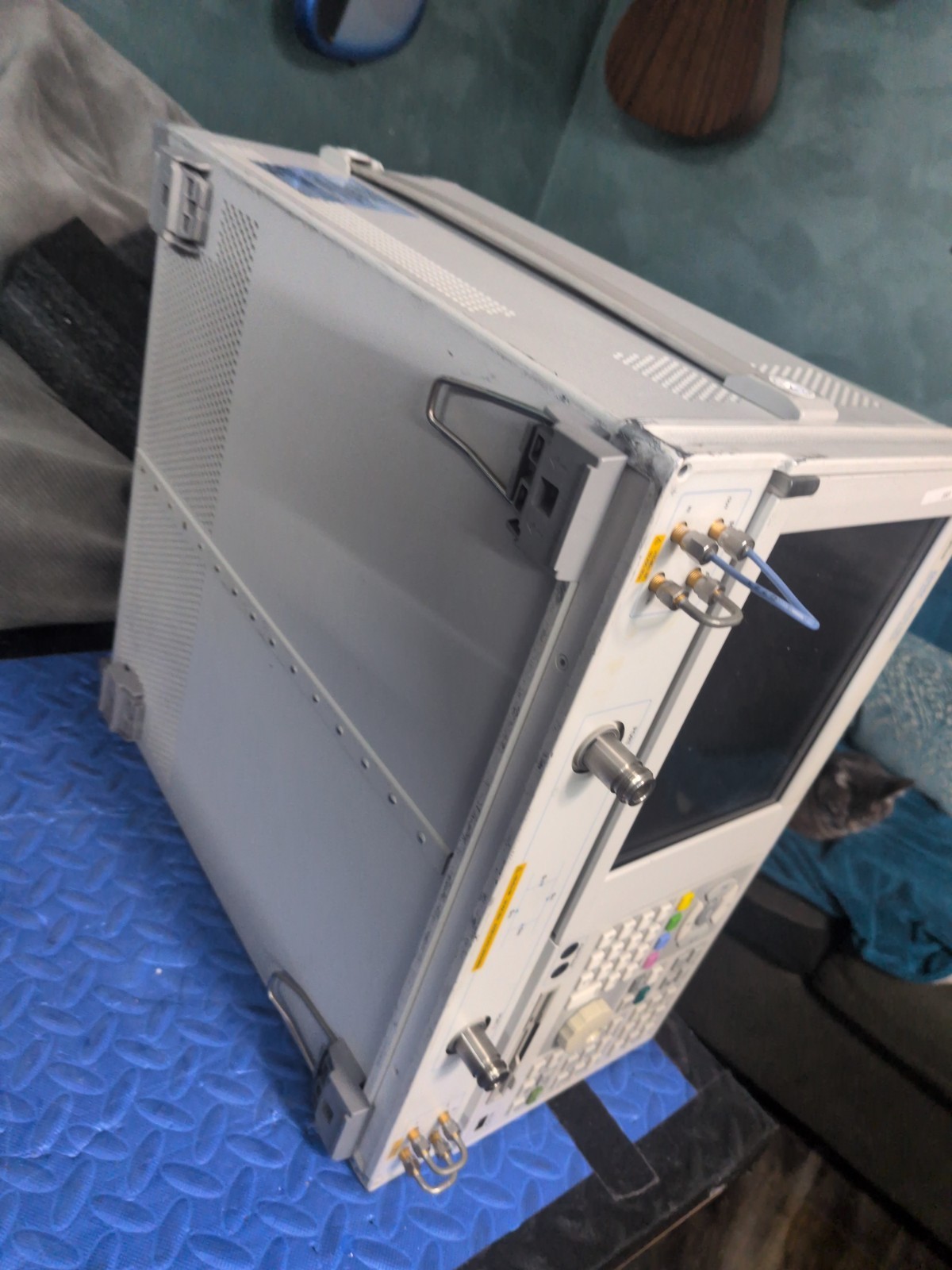

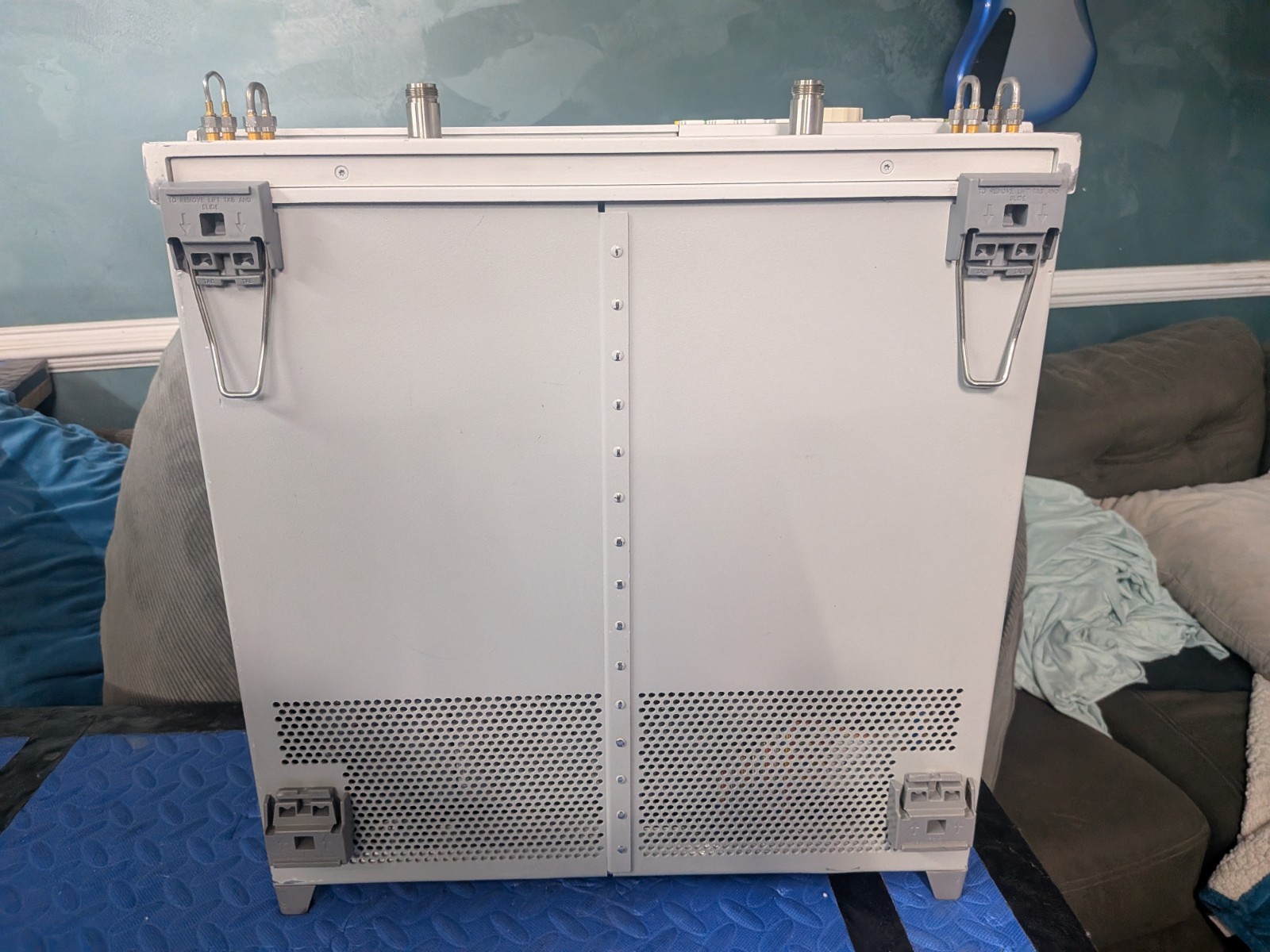

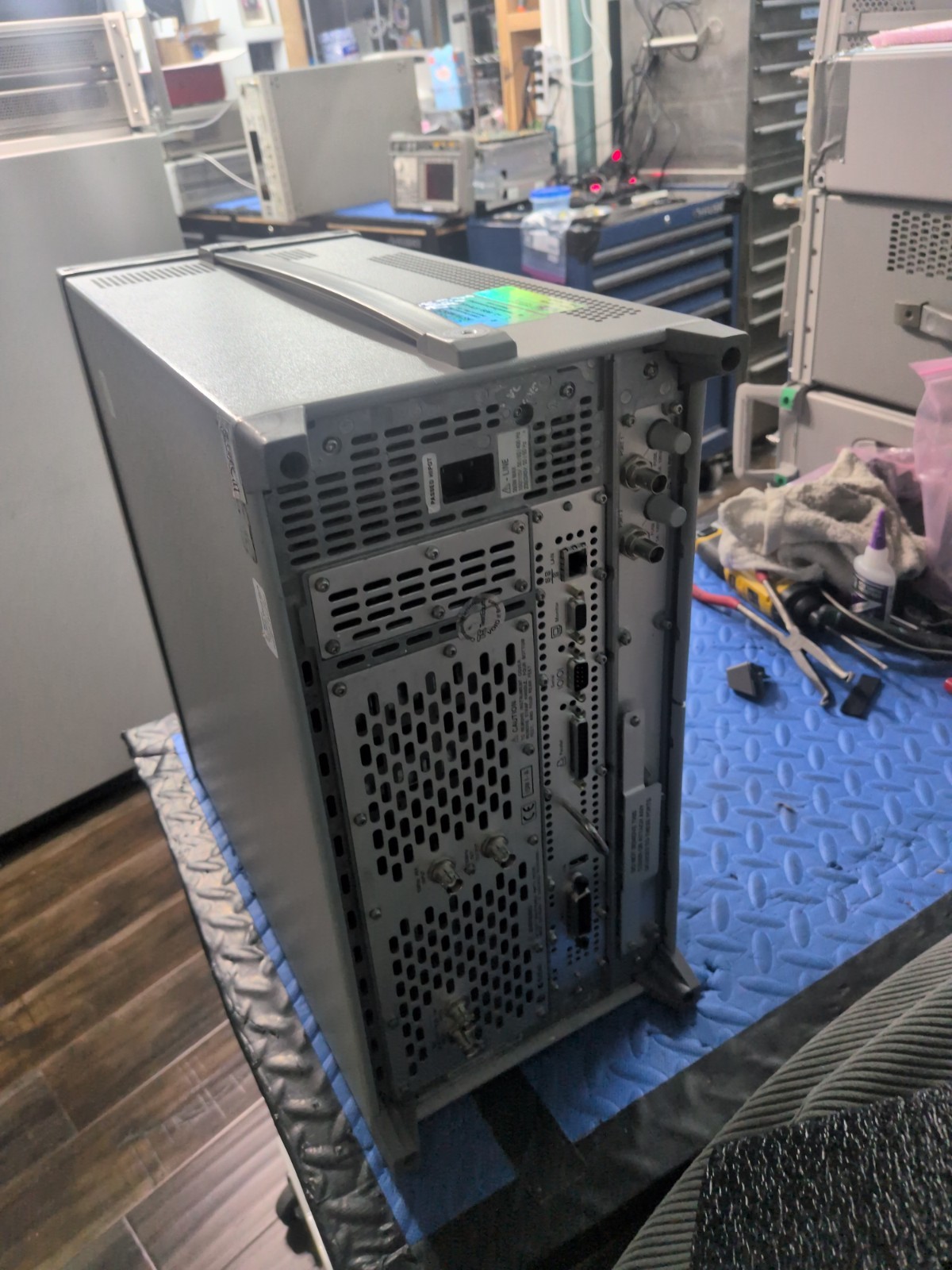

✓ Photos are of this exact unit
✓ Packed with care, insured and tracked

Overview

Agilent E8358A PNA 2-port, 4-receiver vector network analyzer covering 300 kHz to 9 GHz, with option 010 time domain installed. This unit is used and calibrated, and is offered at $9,750.

Installed options

010 Time domain: Transforms frequency-domain data into the time domain so you can see impedance changes and faults along a cable or device versus distance.

Key specifications

Manufacturer	Agilent
Model	E8358A PNA
Frequency range	300 kHz – 9 GHz
Ports	2-port, 4 receiver S-parameter VNA
Frequency resolution	1 Hz
Dynamic range (test port, 25 MHz to 3 GHz)	128 dB
Power level range	–15 to +10 dBm (300 kHz to 6 GHz), –15 to +7 dBm (6 to 9 GHz)
IF bandwidth	1 Hz to 40 kHz
Display	8.4 in color active matrix LCD, 640 x 480
Display windows	Up to 4 windows, up to 4 measurement channels per window
Remote control	GPIB (IEEE 488.2), LAN
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-79809

Condition & service

Overall	A grade, nearly like new; excellent display

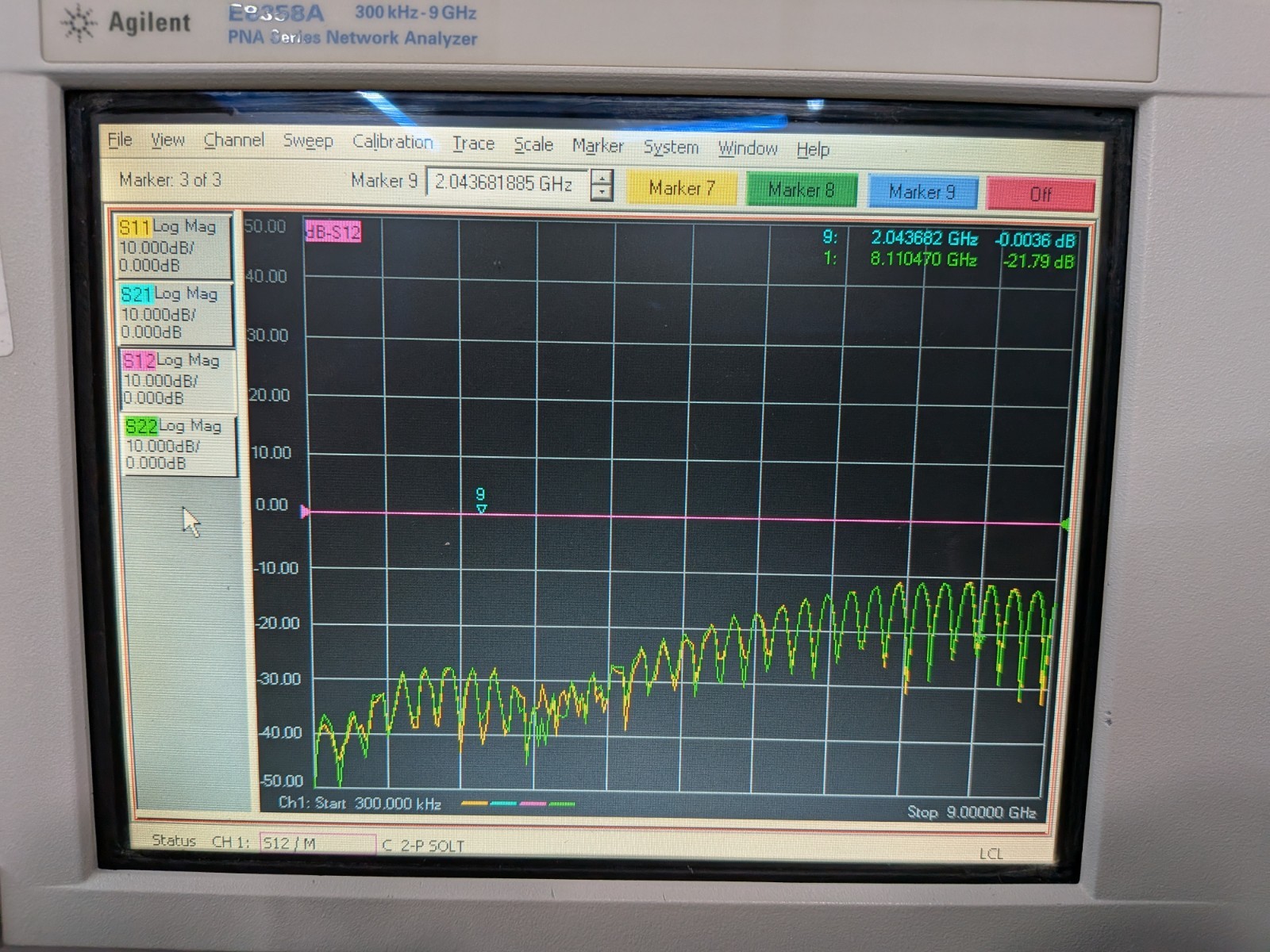

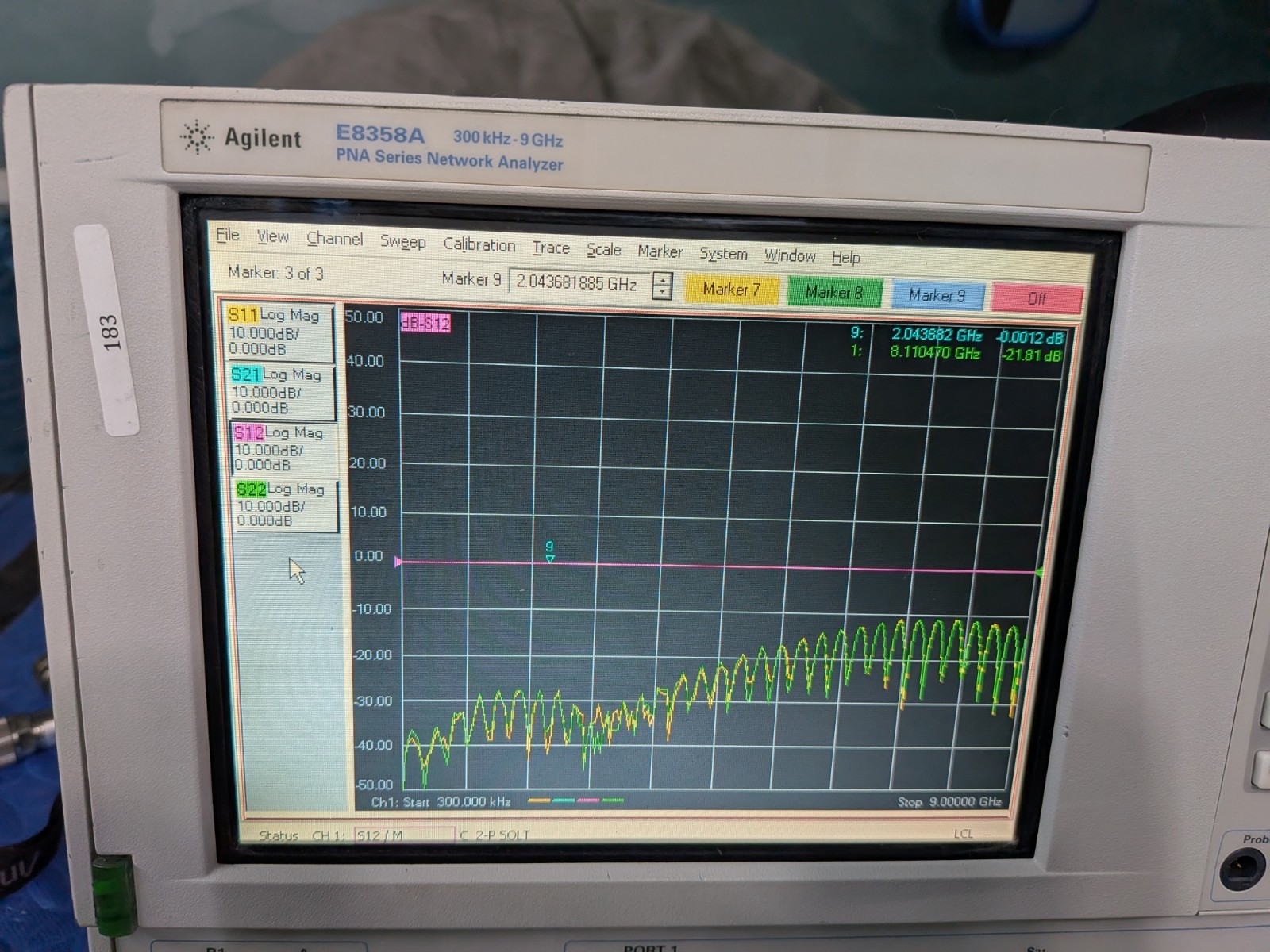

Testing	Passes all self tests and the operator's check
Calibration	Calibrated, 2-year cert and sticker

Shipping & warranty

Packed with additional protective packaging and fully insured. Ships from Diamond Bar, California.

Covered by a 30-day warranty. If anything isn't right, contact us and we'll make it right.

Get a quote or ask a question

About the Agilent E8358A PNA (EB-79809). A real person answers, usually within one business day.
