Agilent 86100A + 83485A + 83483A

Sampling scope mainframe · 83485A 20 GHz optical/electrical · 83483A 20/30 GHz

Used
Mainframe + 2 modules
Infiniium DCA
Modular plug-in design

$3,000

● In stock · ships from Diamond Bar, California

FrequencySee specs

CalibrationInspected & tested

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships

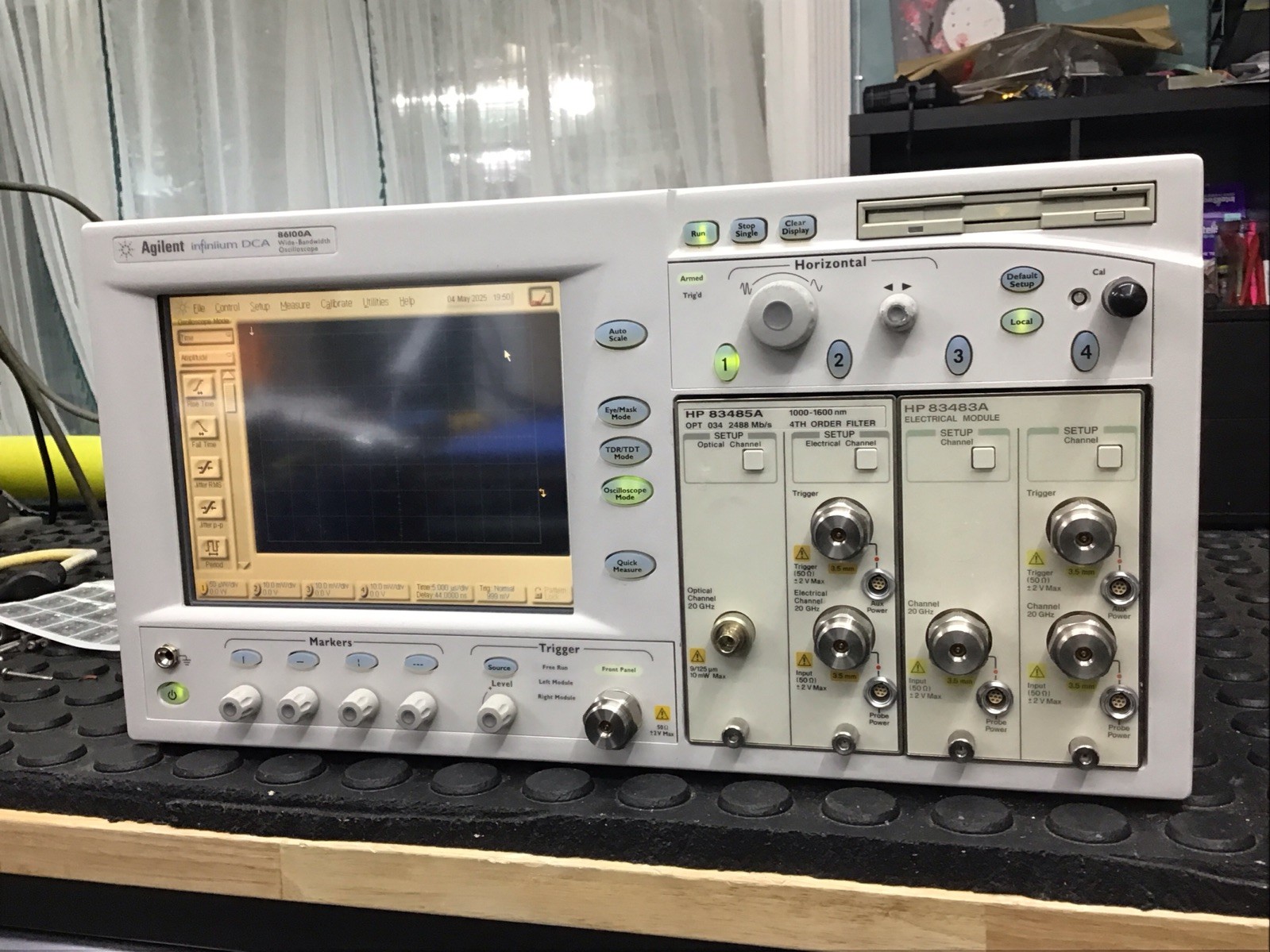

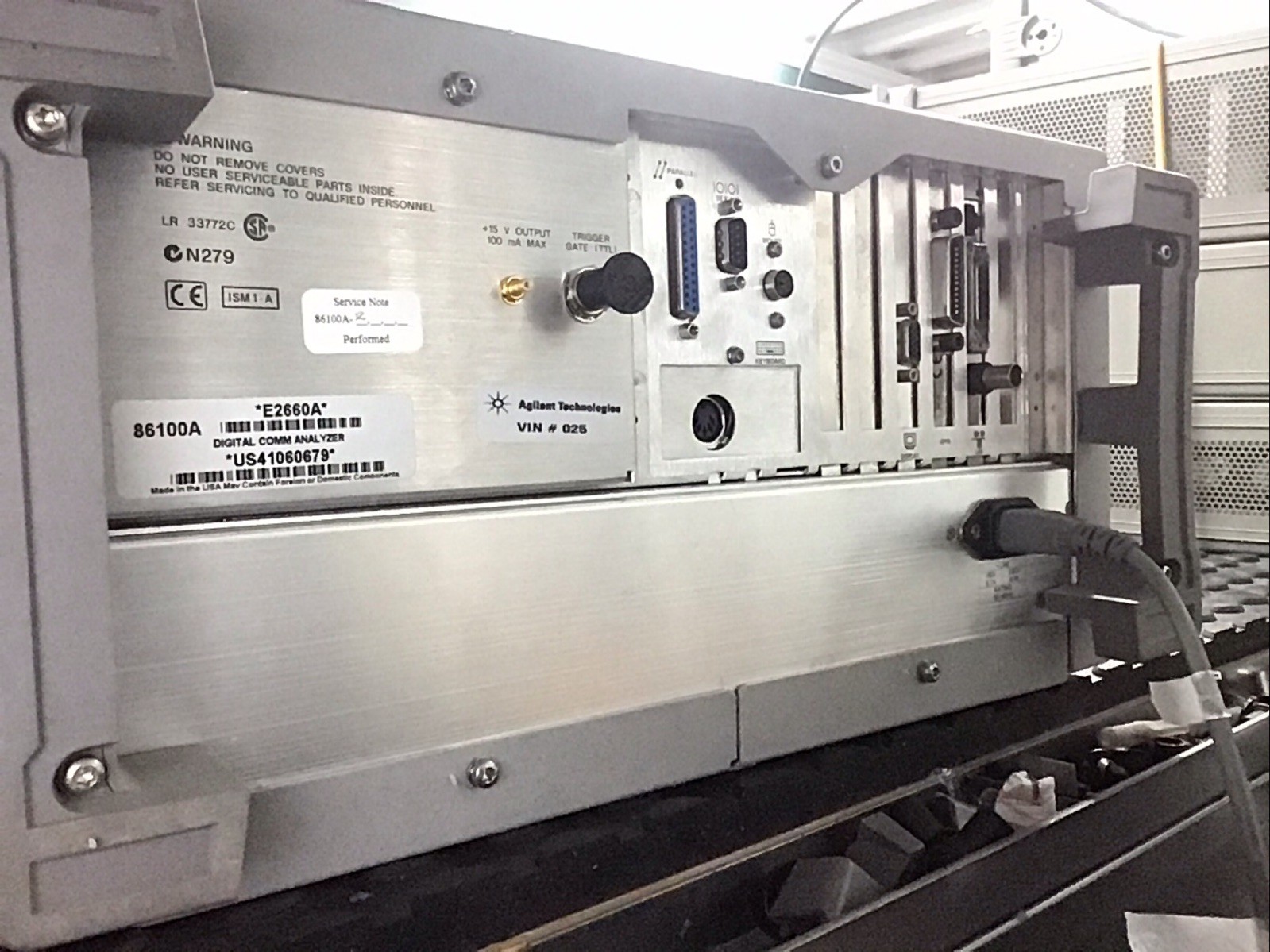

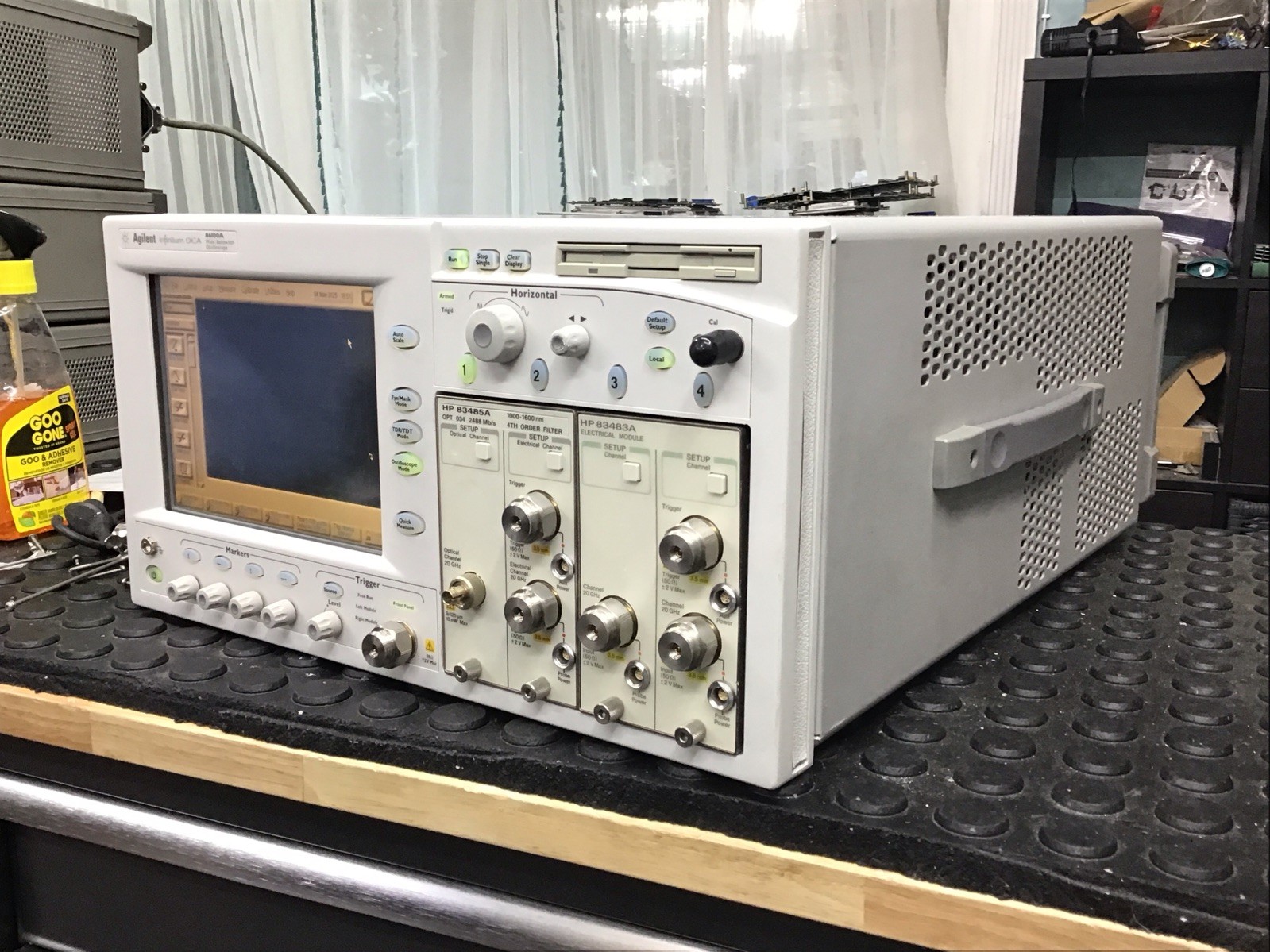

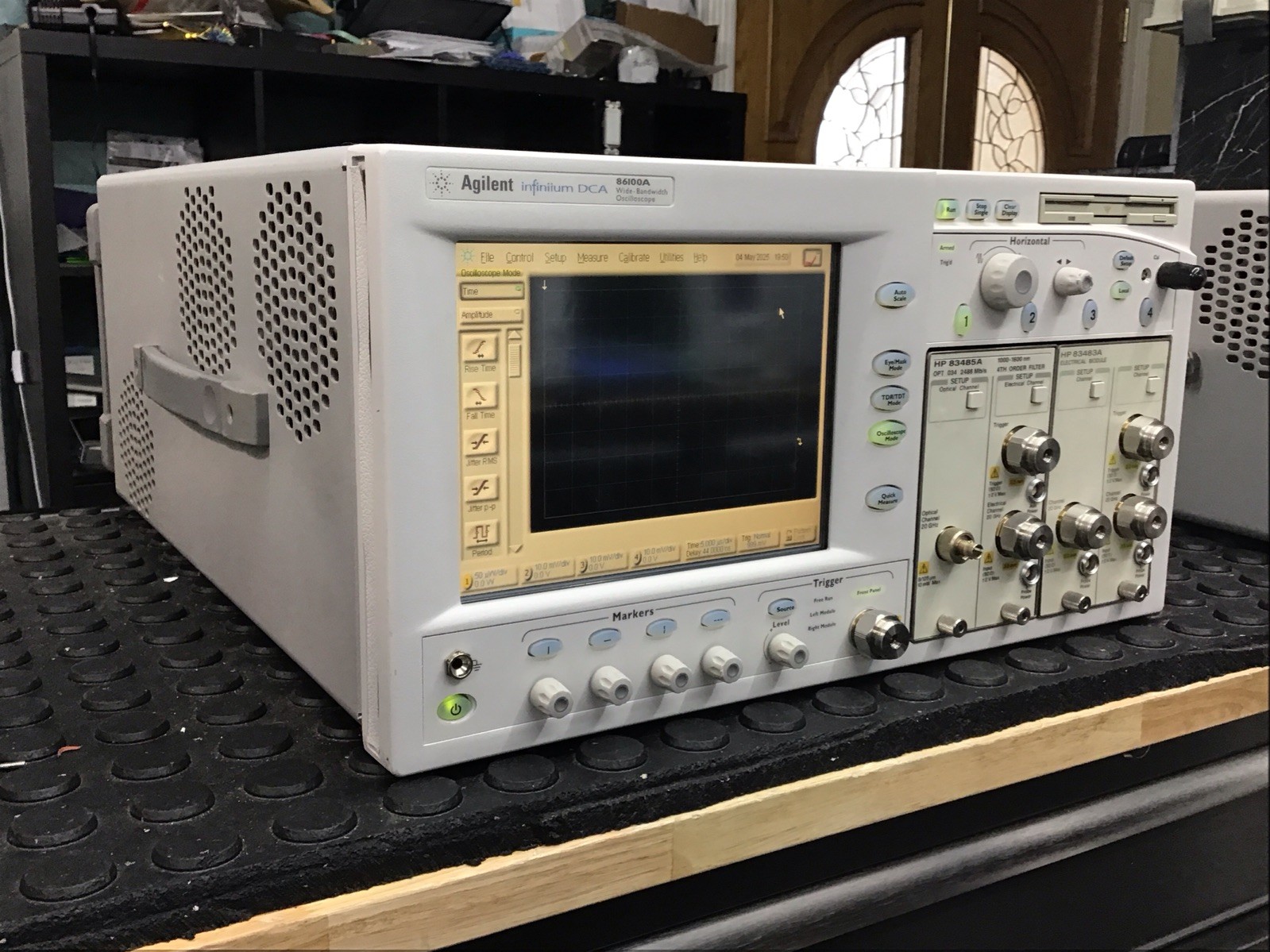

✓ Photos are of this exact unit
✓ Includes 86100a mainframe, 83485a module, 83483a module
✓ Packed with care, insured and tracked

Overview

Agilent 86100A Infiniium DCA wide-bandwidth sampling oscilloscope mainframe supplied with two plug-in modules, the 83485A and 83483A. Bandwidth and measurement type are set by the plug-ins, and the mainframe works as a sampling oscilloscope, digital communications analyzer and TDR.

Key specifications

Manufacturer	Agilent
Model	86100A + 83485A + 83483A
Type	Wide-bandwidth modular sampling oscilloscope / digital communications analyzer
Mainframe	Agilent 86100A Infiniium DCA
Module compatibility	Agilent 83480A-series and 54750-series plug-in modules
Waveform range	Modular platform for waveforms up to 40 Gb/s
Vertical resolution	12-bit A/D converter (up to 15 bits with averaging)
Display	8.4 inch color active matrix LCD, 640 x 480 pixels
Remote interface	GPIB; LAN interface also available
Power requirements	90-132 or 198-264 Vac, 48-66 Hz
Weight	12.7 kg (28 lb) without modules; 1.2 kg (2.6 lb) per module
Condition	Grade B · normal wear · Used
Stock number	EB-79007
