Huber+Suhner Sucoflex 100

DC – 18 GHz · 50 Ω · 4 m (13.1 ft) · N male to N male

Used, tested
DC – 18 GHz
4 m long
50 Ω

● In stock · ships from Fort Worth, Texas

FrequencyDC – 18 GHz

CalibrationInspected & tested

ConditionGrade B · normal wear

Warranty60-day warranty

✓ Inspected and function-tested before it ships
✓ Photos are of this exact unit
✓ Includes sucoflex 100 cable assembly, 4 m
✓ Packed with care, insured and tracked

Overview

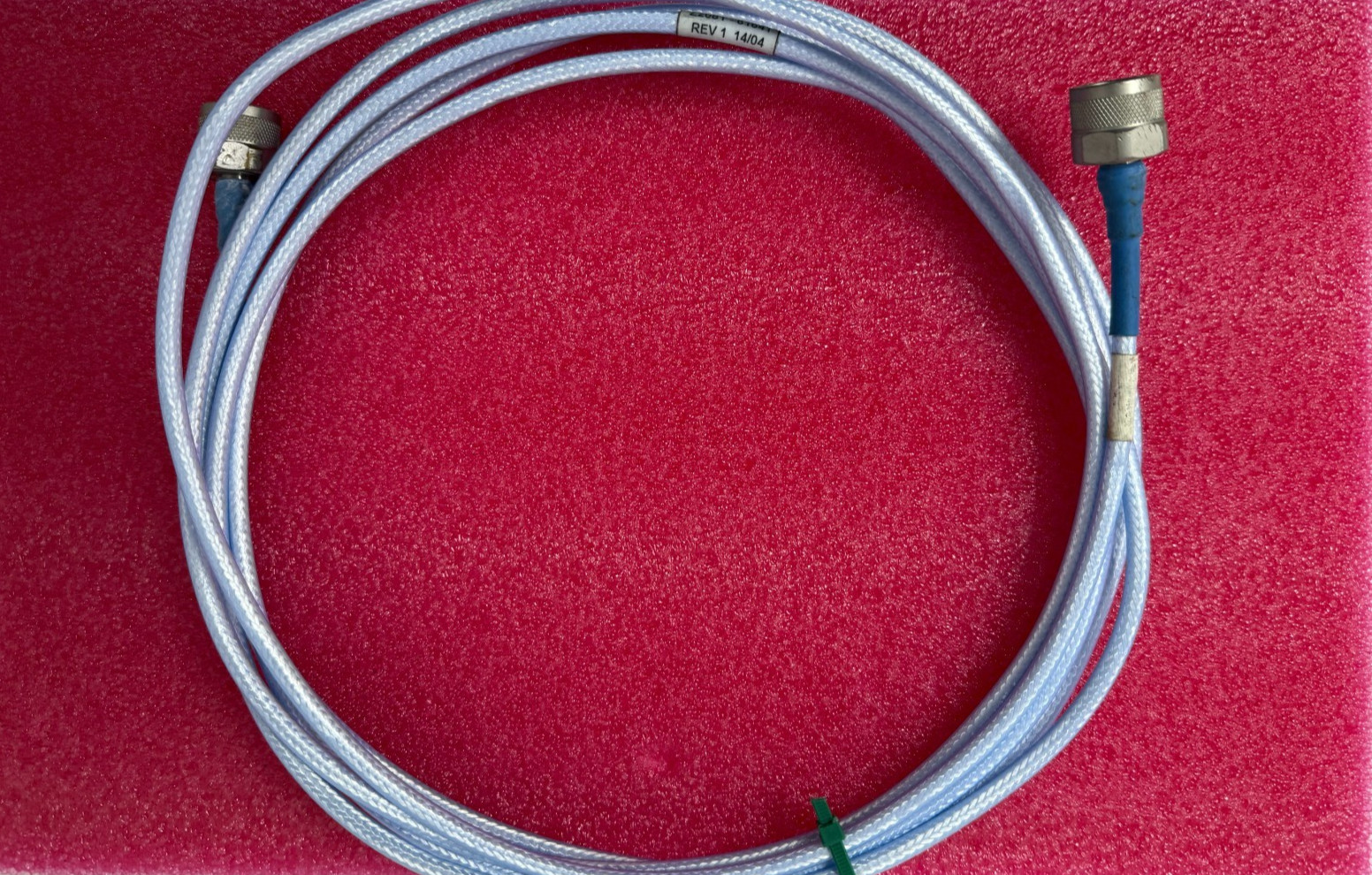

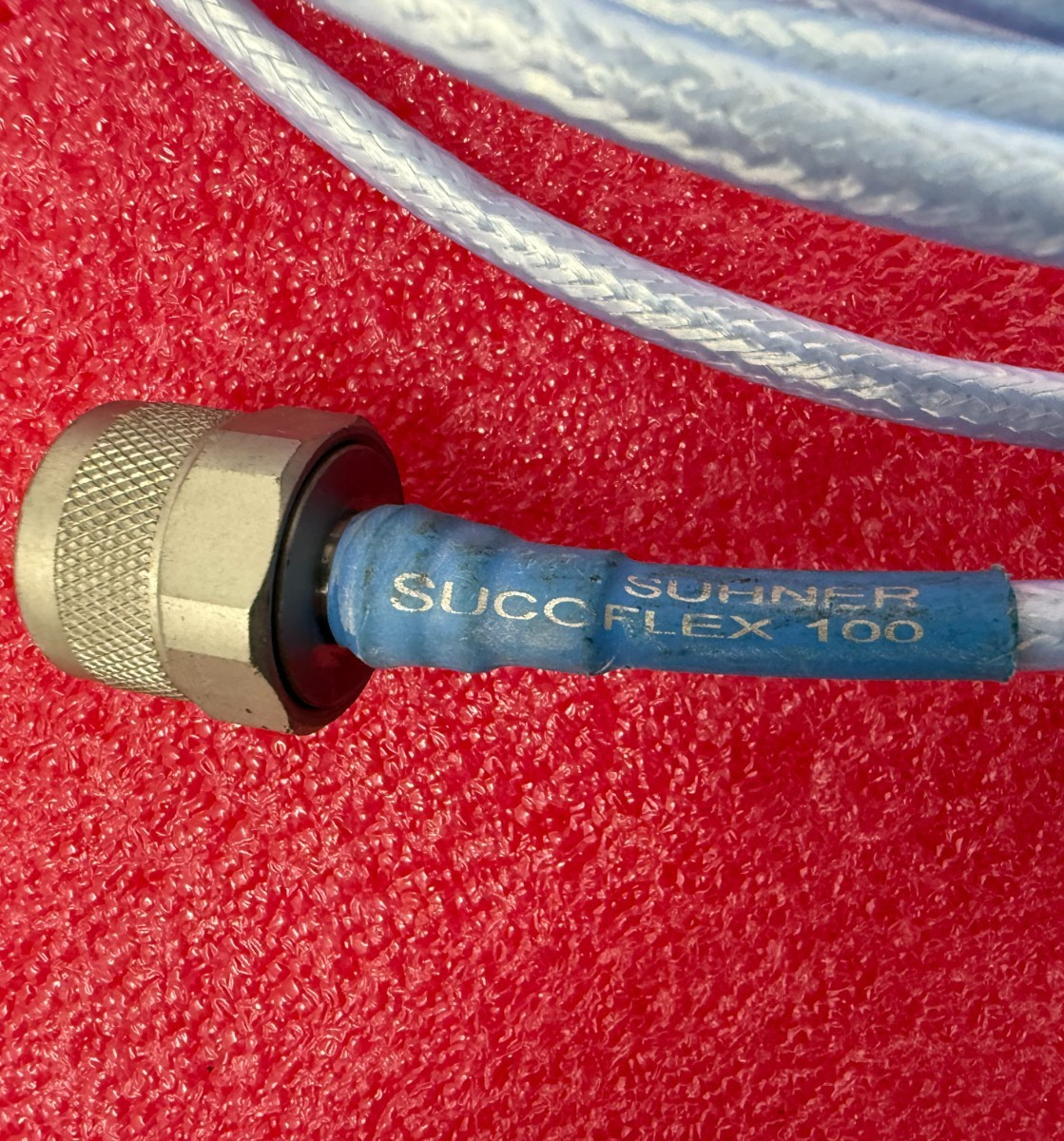

Huber+Suhner Sucoflex 100 flexible microwave test cable, 4 m (13.1 ft), with N male connectors at both ends. It gives extra reach between VNAs, generators, analyzers and the device under test, and this unit has been tested.

Key specifications

Manufacturer	Huber+Suhner
Model	Sucoflex 100
Frequency range	DC – 18 GHz
Impedance	50 Ω

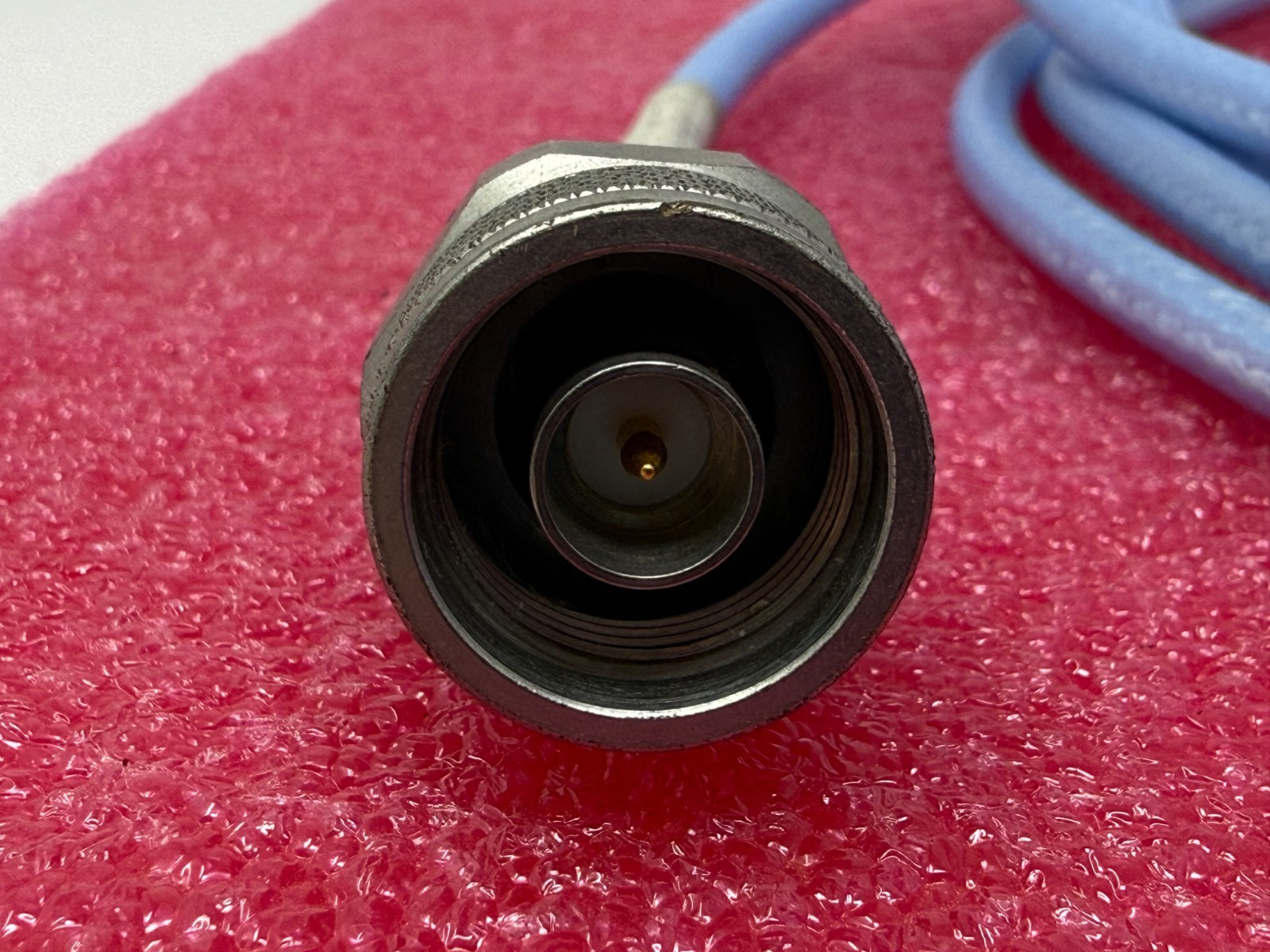

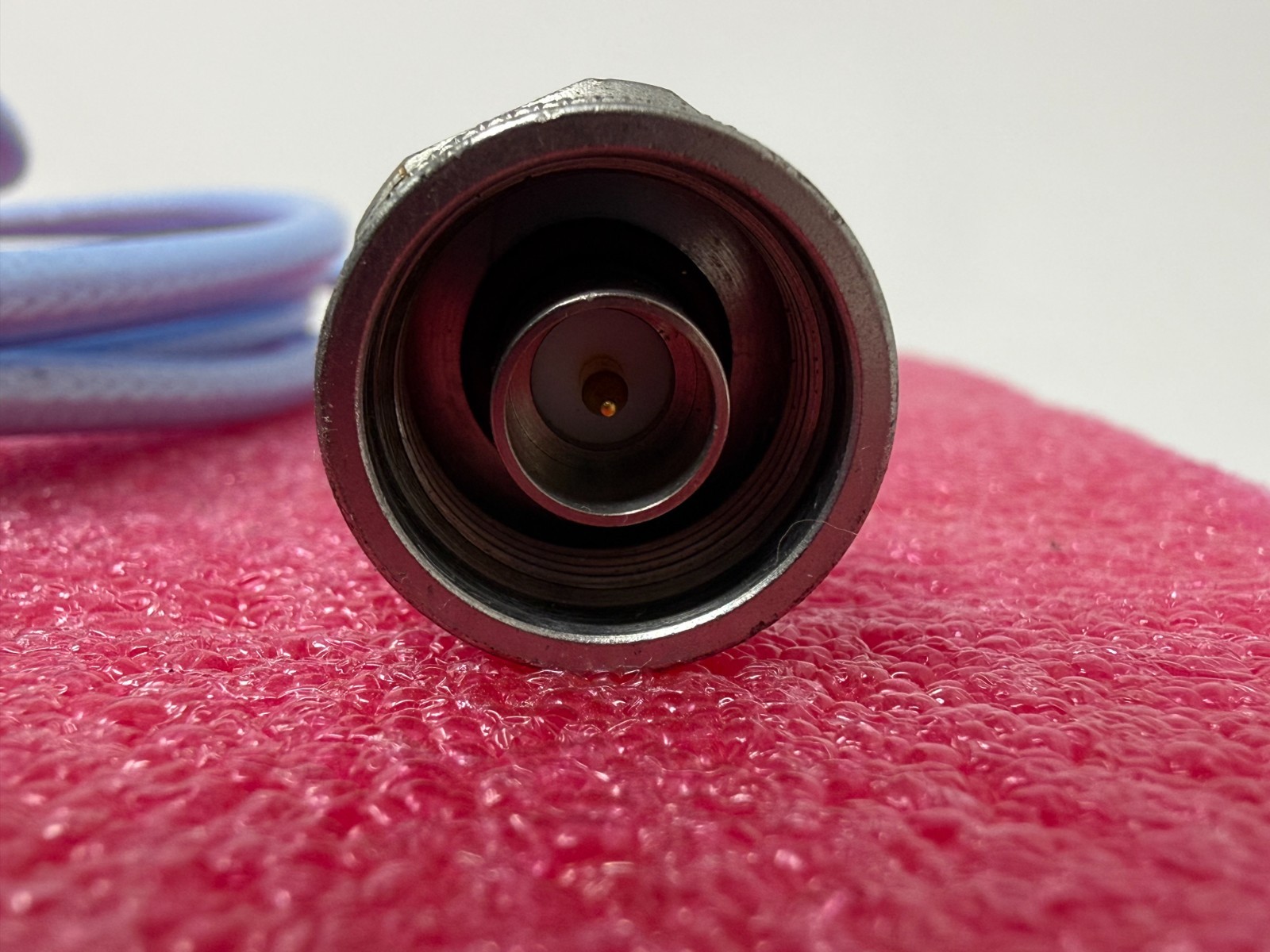

Connectors	N male to N male
Length	4 m (13.1 ft)
Time delay	4.3 ns/m (nominal)
Screening effectiveness	90 dB min, up to 18 GHz
Condition	Grade B · normal wear · Used, tested
Stock number	EB-04763

Specifications and option descriptions are manufacturer data, still being checked against the datasheet. Ask us to confirm anything important for your application.
