Rohde & Schwarz SMU200A

100 kHz – 3 GHz · Vector signal generator · Baseband / ARB · Calibrated

Used, calibrated
100 kHz – 3 GHz
Baseband + ARB
I/Q modulator

$3,495

● In stock · ships from Diamond Bar, California

Frequency100 kHz – 3 GHz

CalibrationCalibrated with NIST cert

ConditionGrade B · normal wear

Warranty30-day warranty

✓ Inspected and function-tested before it ships

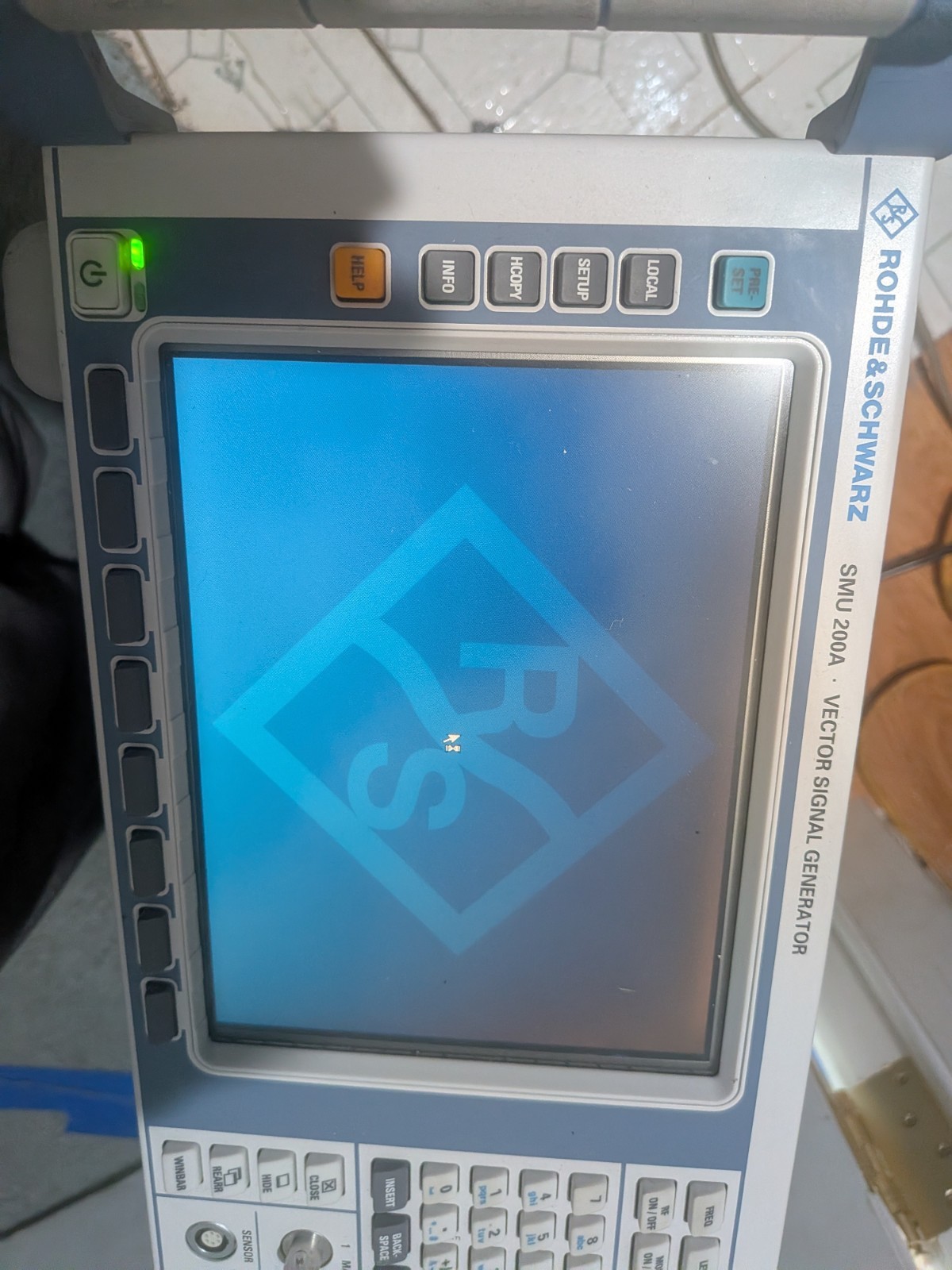

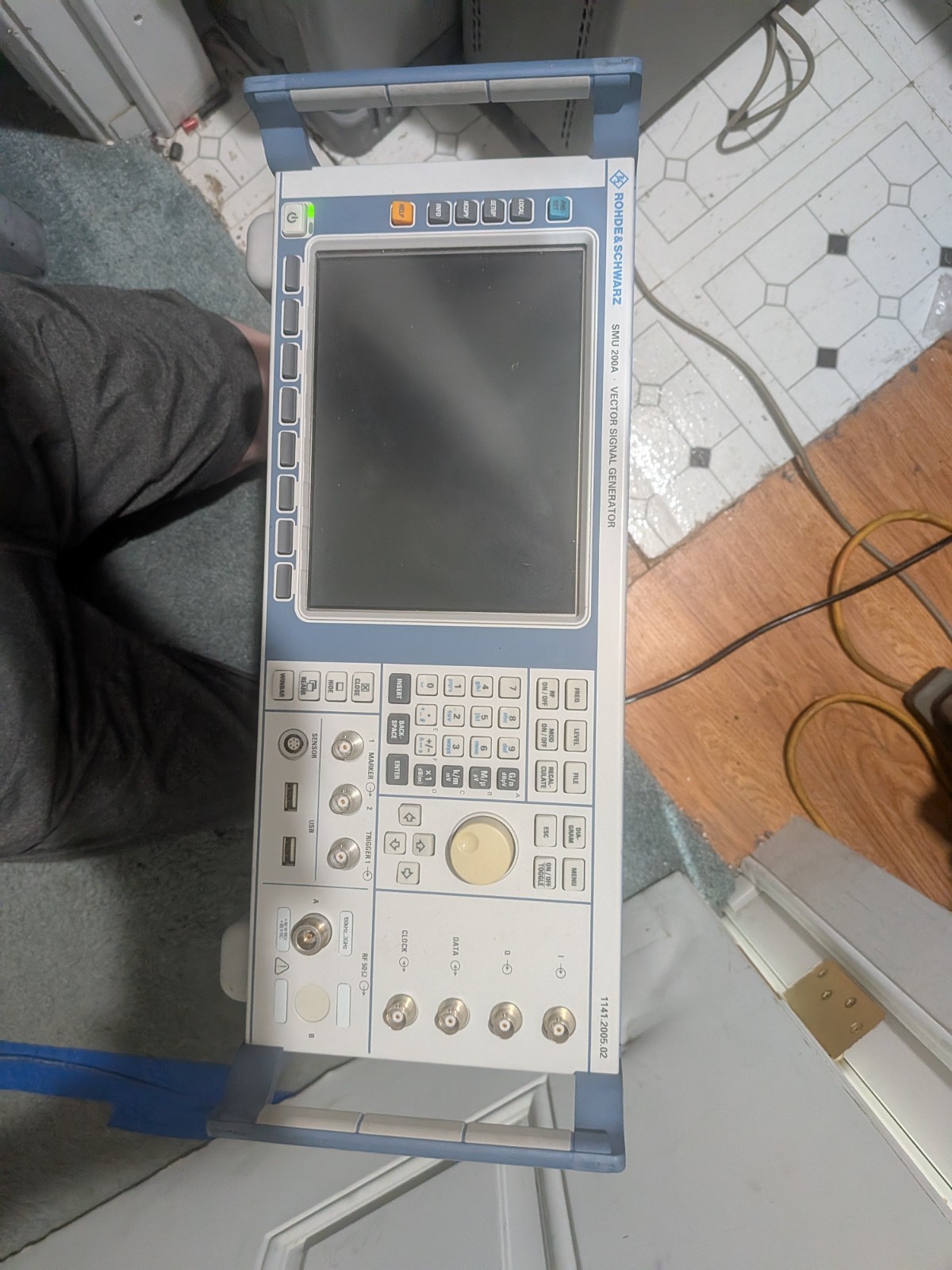

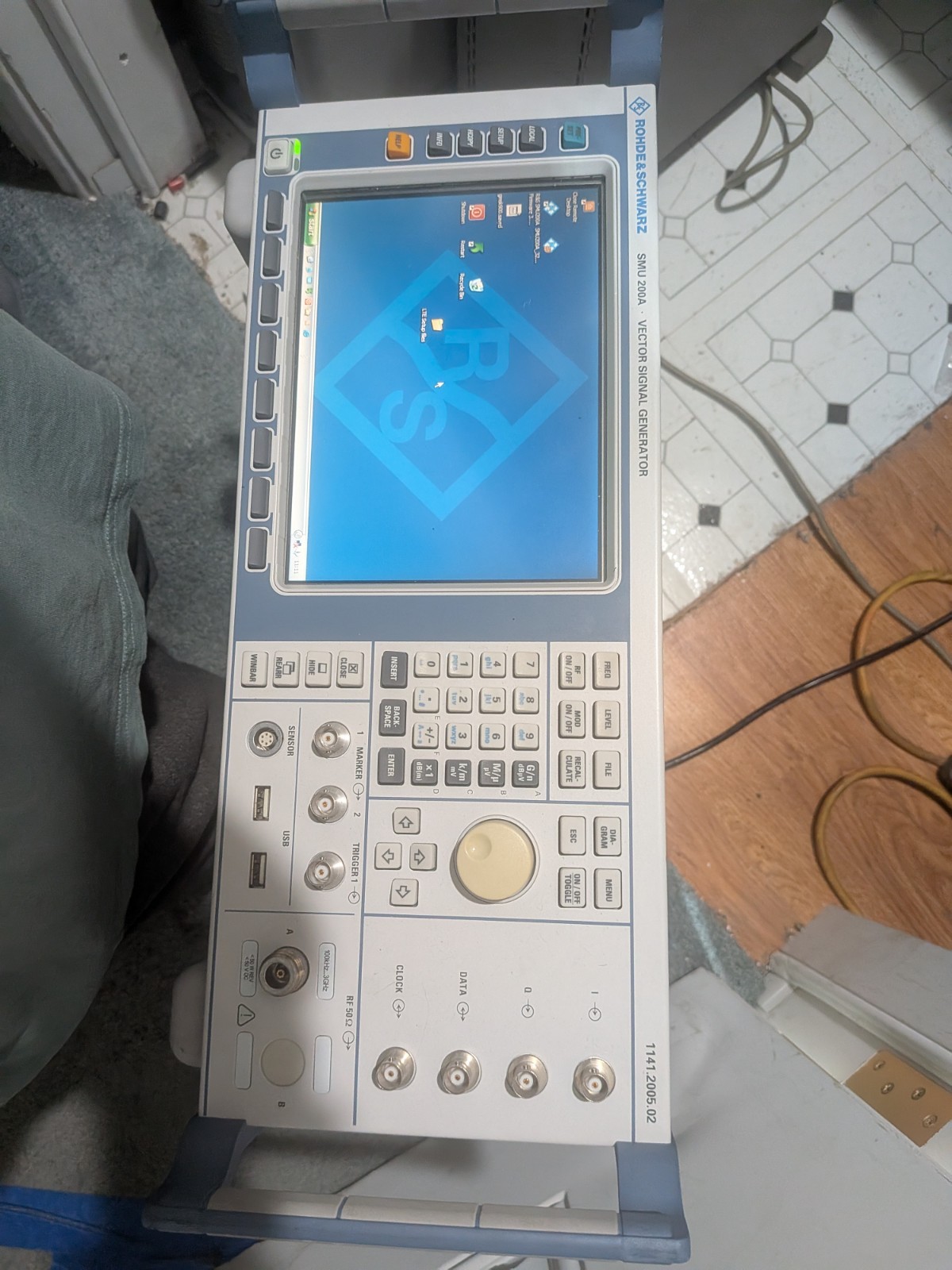

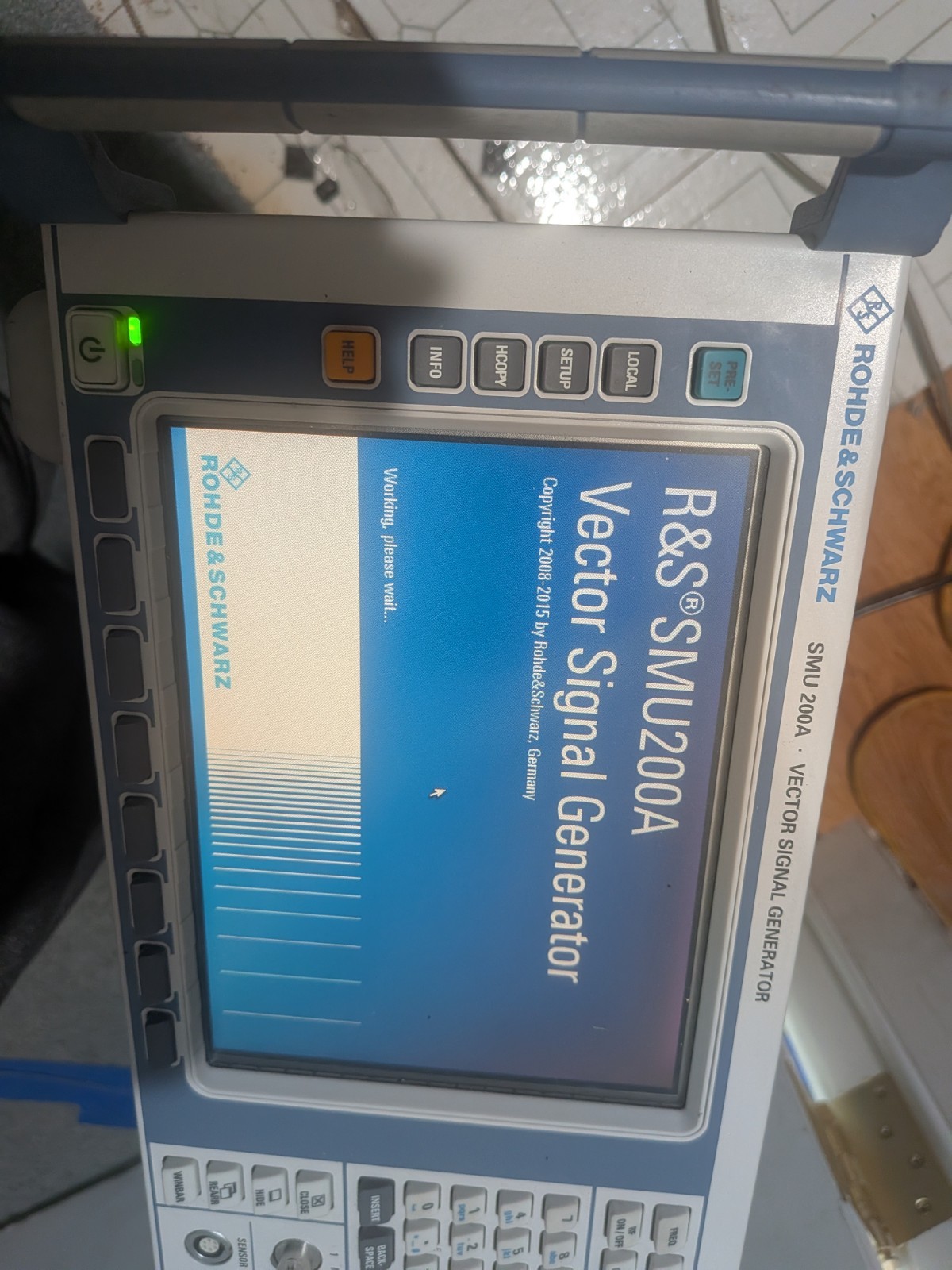

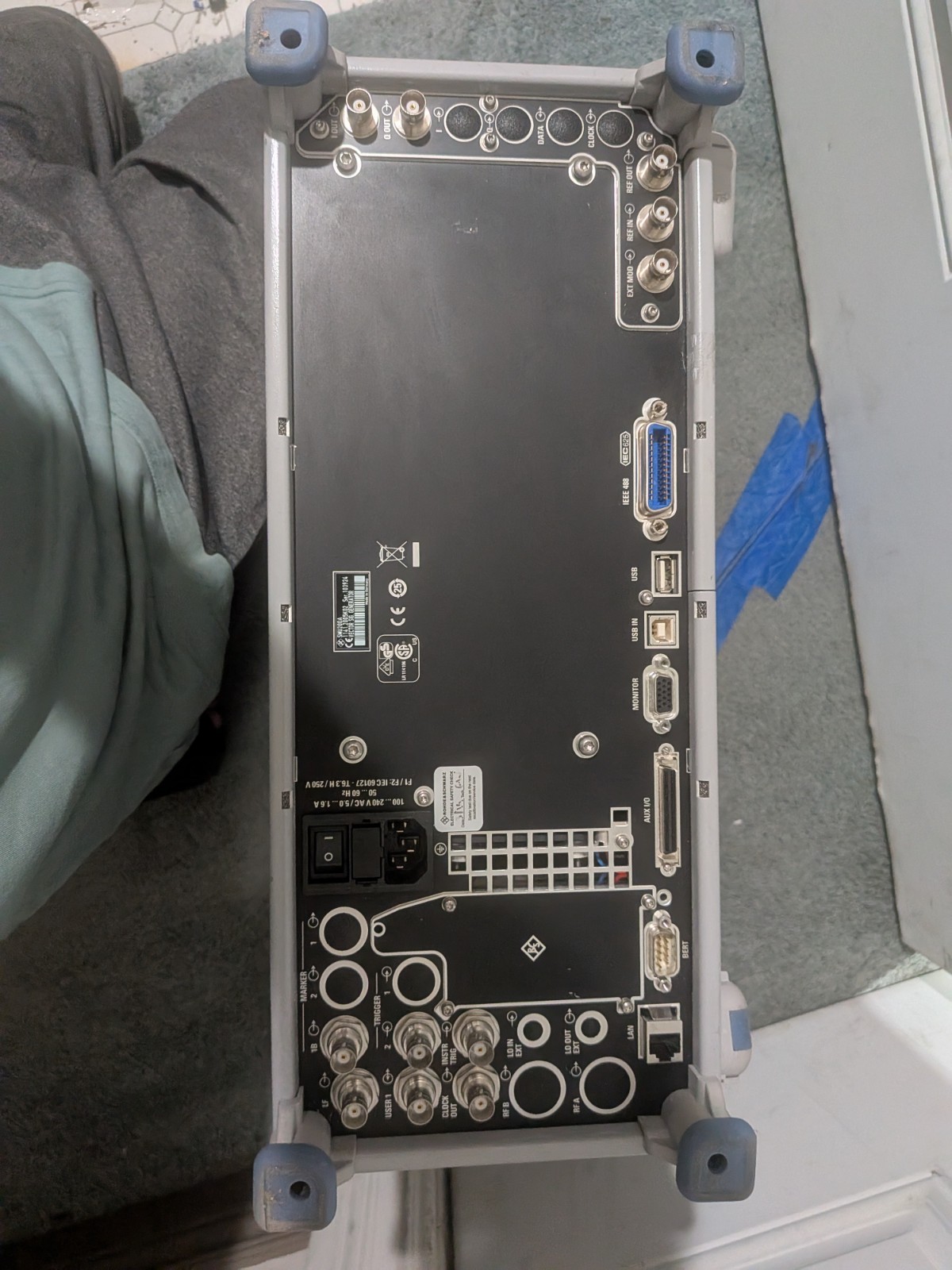

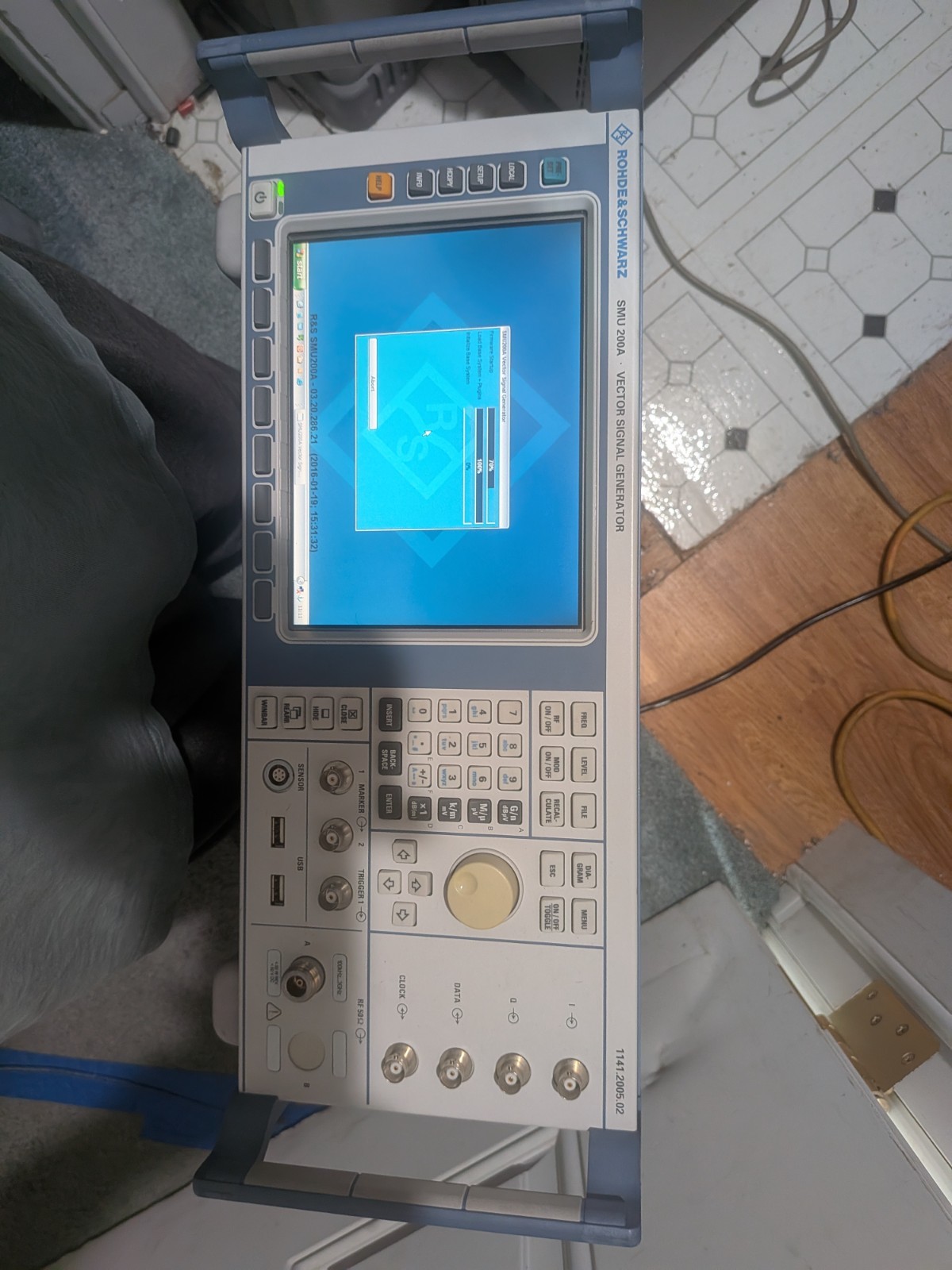

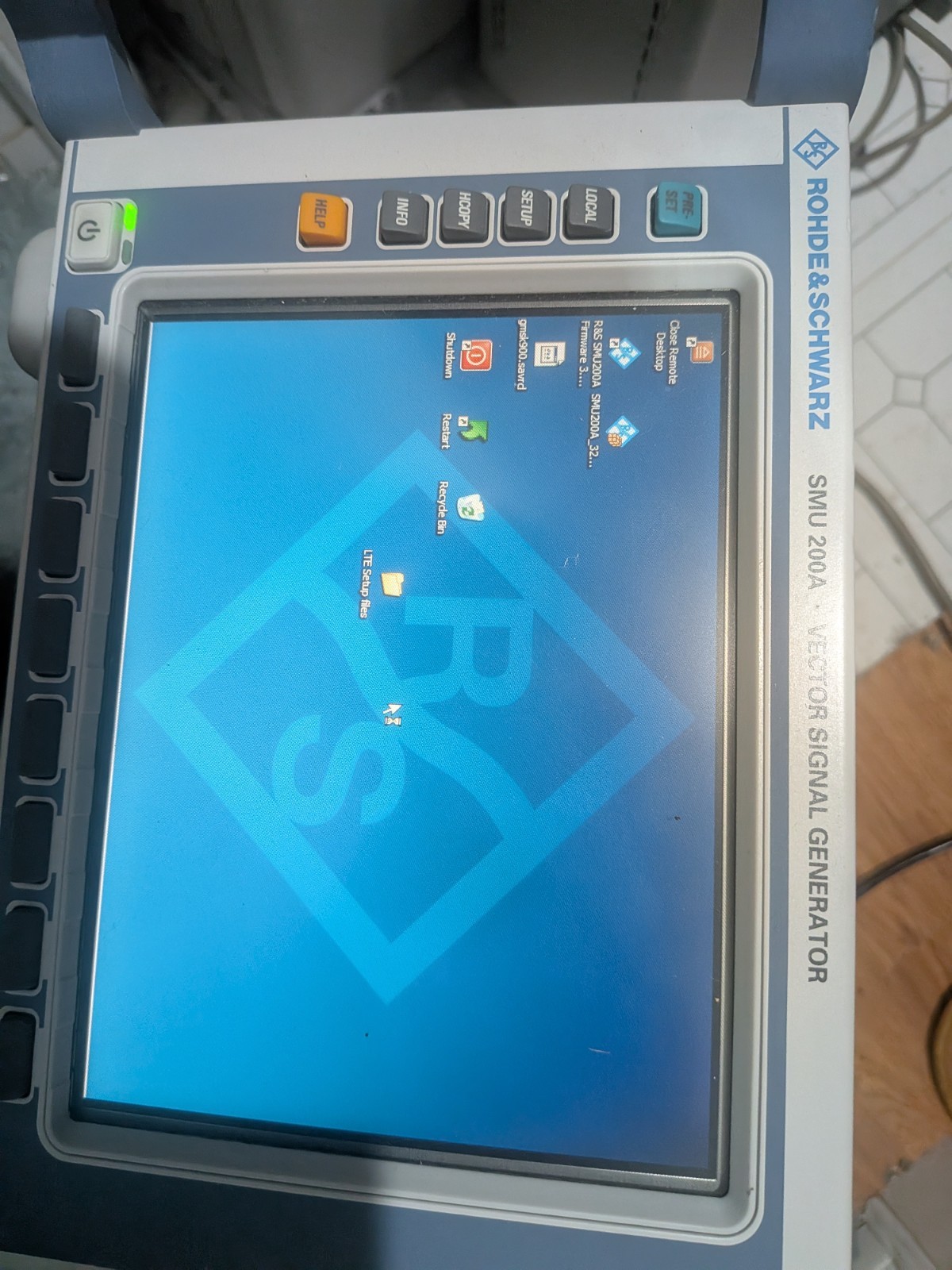

✓ Photos are of this exact unit
✓ Packed with care, insured and tracked

Overview

Rohde & Schwarz SMU200A vector signal generator covering 100 kHz to 3 GHz, with an internal baseband generator and ARB. This used, calibrated unit is priced at $3,495.

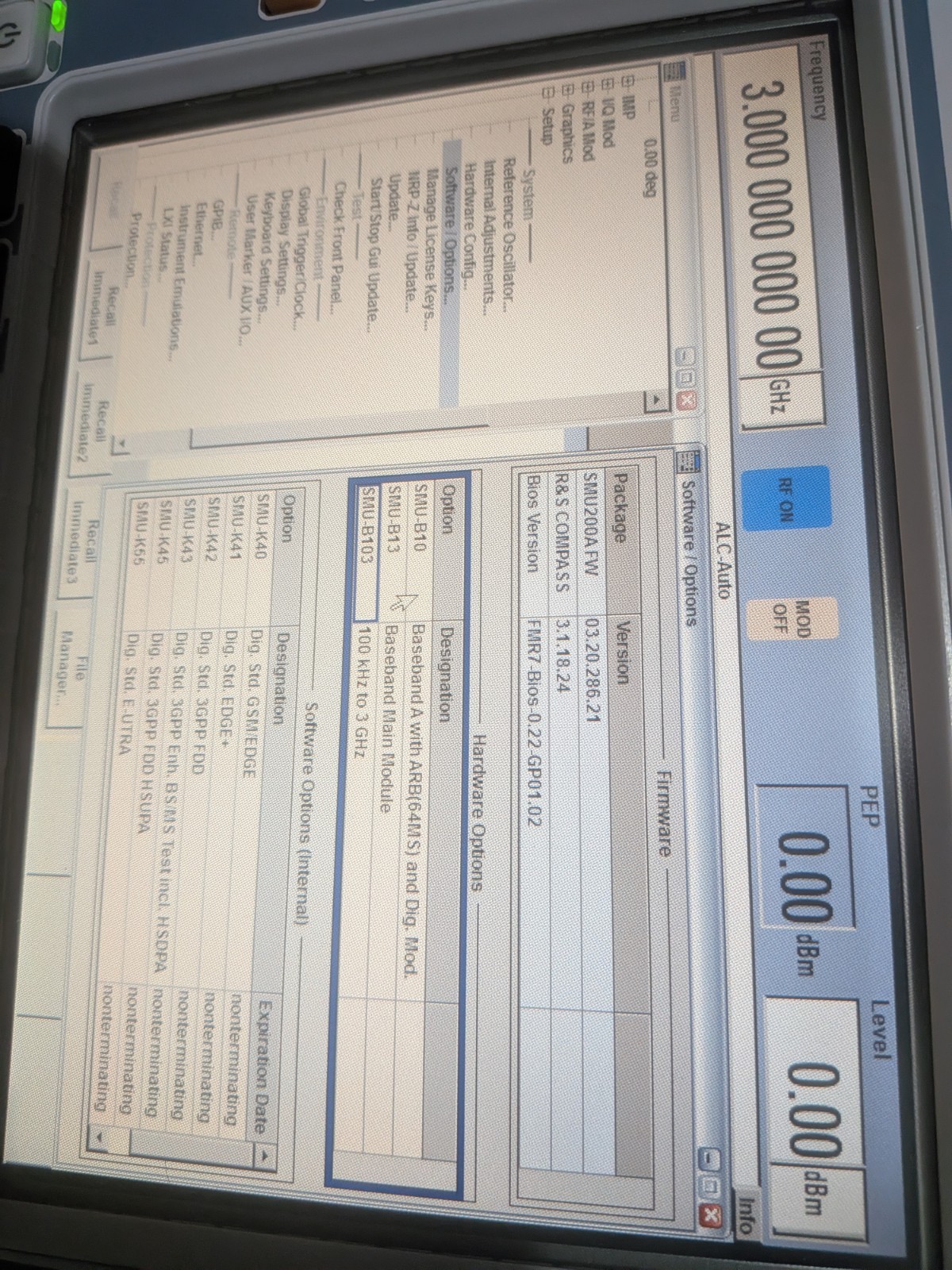

Installed options

B103 Frequency option 100 kHz to 3 GHz (RF path A): Sets the RF output range of path A to 100 kHz – 3 GHz.
B10 I/Q baseband generator (ARB): Generates digital baseband signals and arbitrary waveforms internally, so no external signal source is needed.
B11 I/Q baseband generator (ARB): Adds a second baseband generator and ARB option, which can be combined with B10 in the digital domain.
B13 Baseband main module: Hosts the baseband generator options and passes their signals to the I/Q modulator and RF path.

Key specifications

Manufacturer	Rohde & Schwarz
Model	SMU200A
Frequency range	100 kHz – 3 GHz (with B103)
Frequency resolution	0.01 Hz
Output level setting range	-145 dBm to +20 dBm (standard)
Level resolution	0.01 dB
Frequency and level setting time	< 2 ms (< 450 µs in list mode)
I/Q modulator RF bandwidth	200 MHz
SSB phase noise (1 GHz, 20 kHz offset)	< -131 dBc (typ. -135 dBc)
Display	Color, 800 × 600 pixel (SVGA)
Condition	Grade B · normal wear · Used, calibrated
Stock number	EB-02261
