Keysight N9913A FieldFox

30 kHz – 4 GHz · Cable & antenna analyzer · Spectrum analyzer · TDR · Spectrogram

New in box
30 kHz – 4 GHz

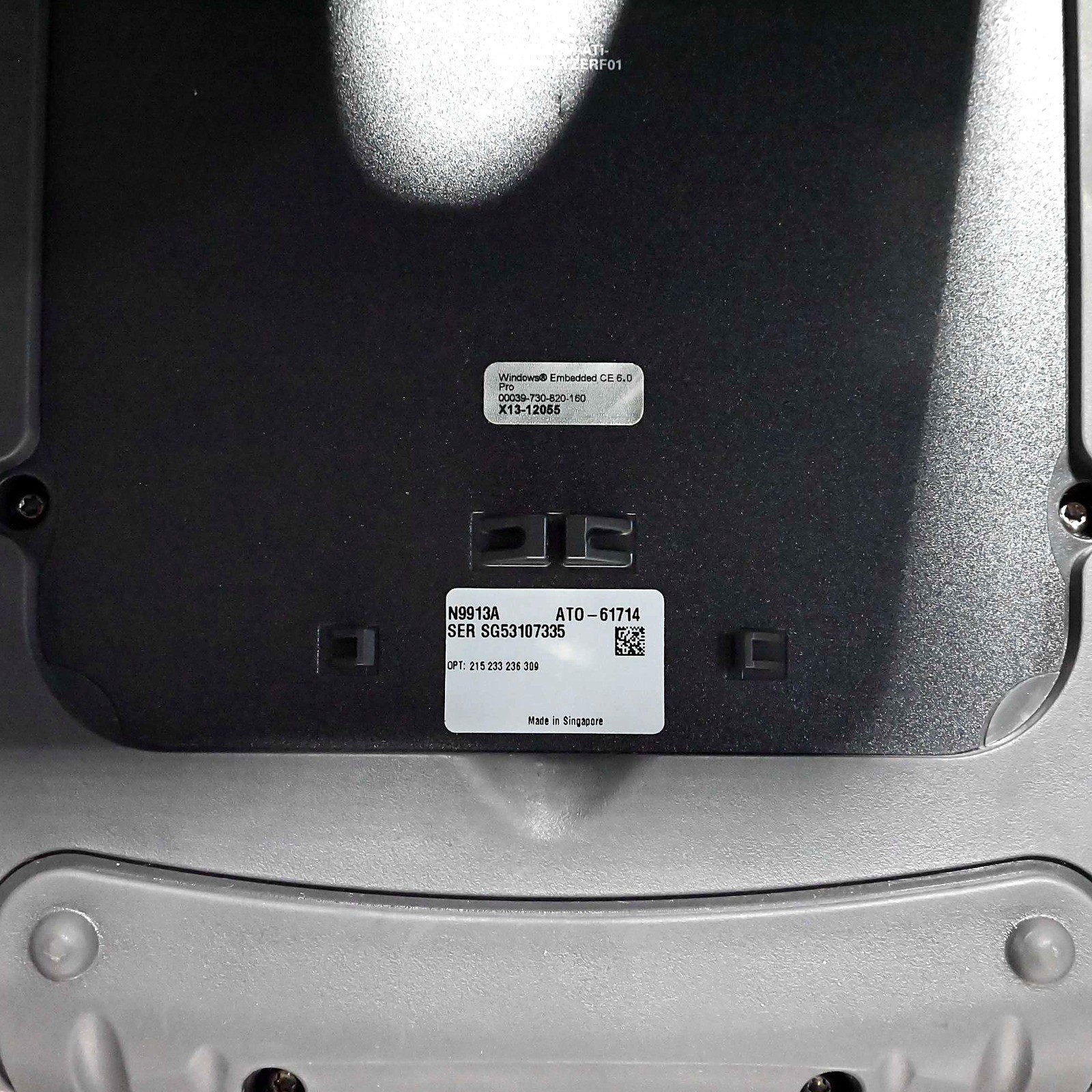

Opt 215 · 233 · 236 · 309
60-day warranty

$12,950

● In stock · ships from Fort Worth, Texas

Frequency30 kHz – 4 GHz

CalibrationInspected & tested

ConditionGrade A · like new

Warranty60-day warranty

✓ Inspected and function-tested before it ships

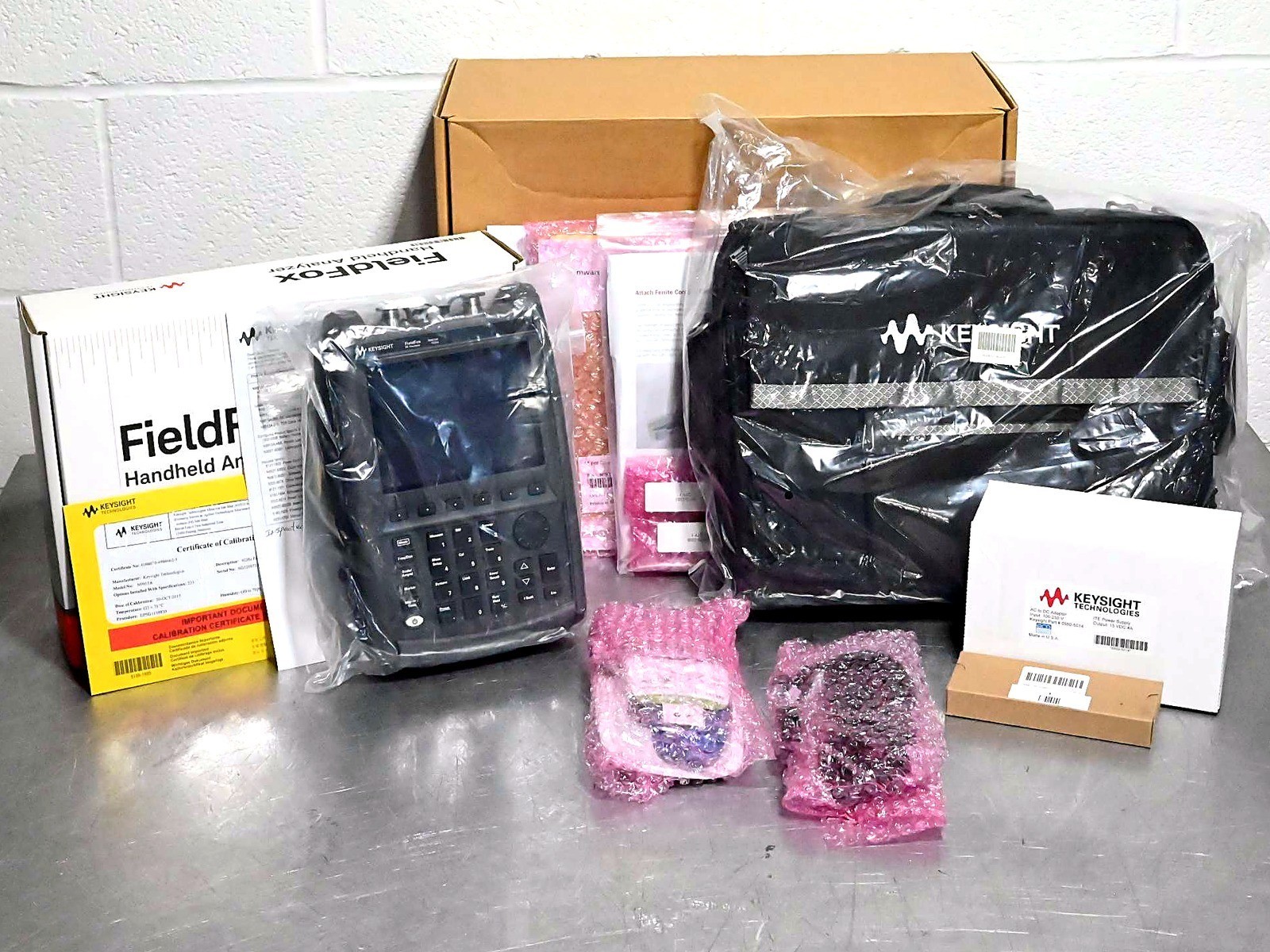

✓ Photos are of this exact unit

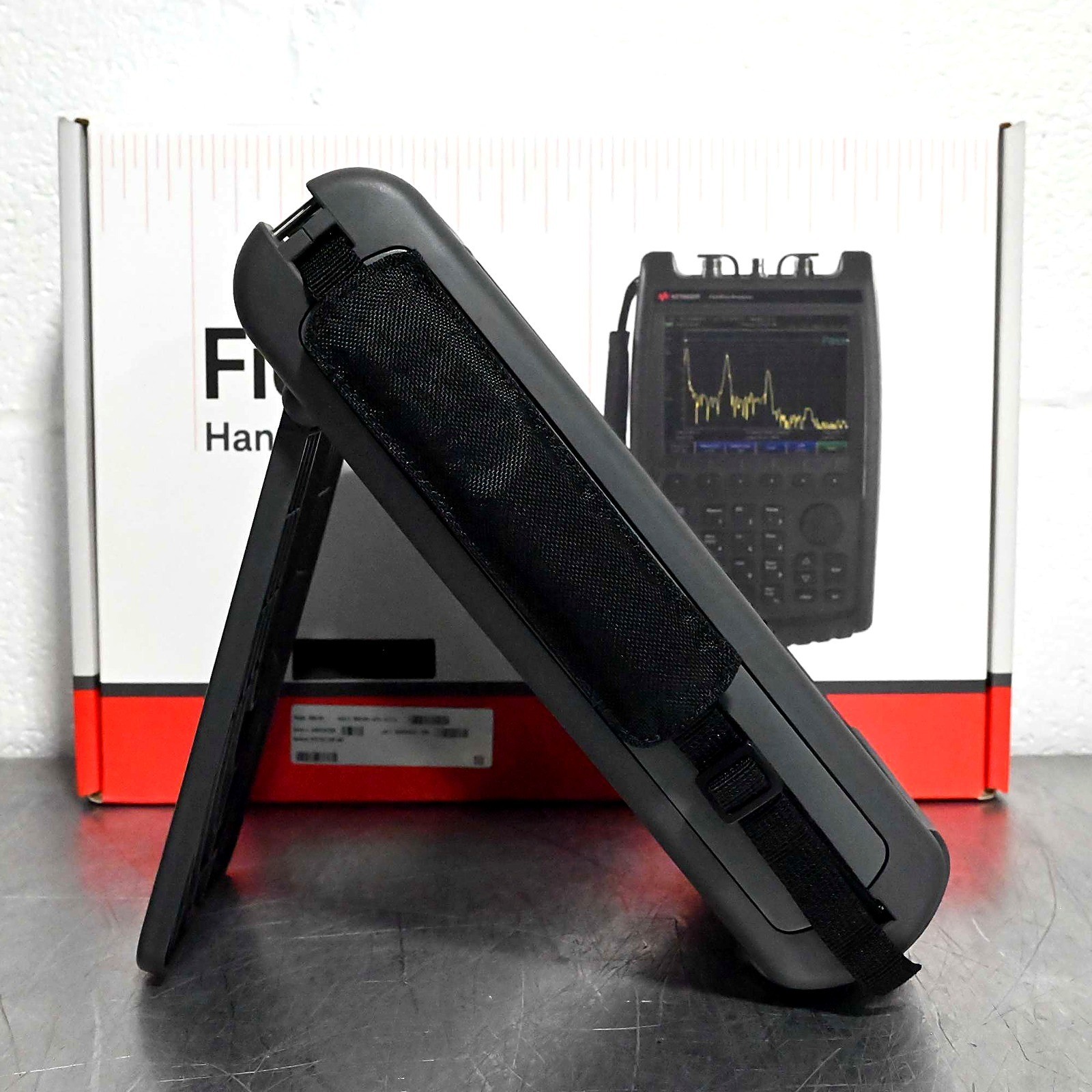

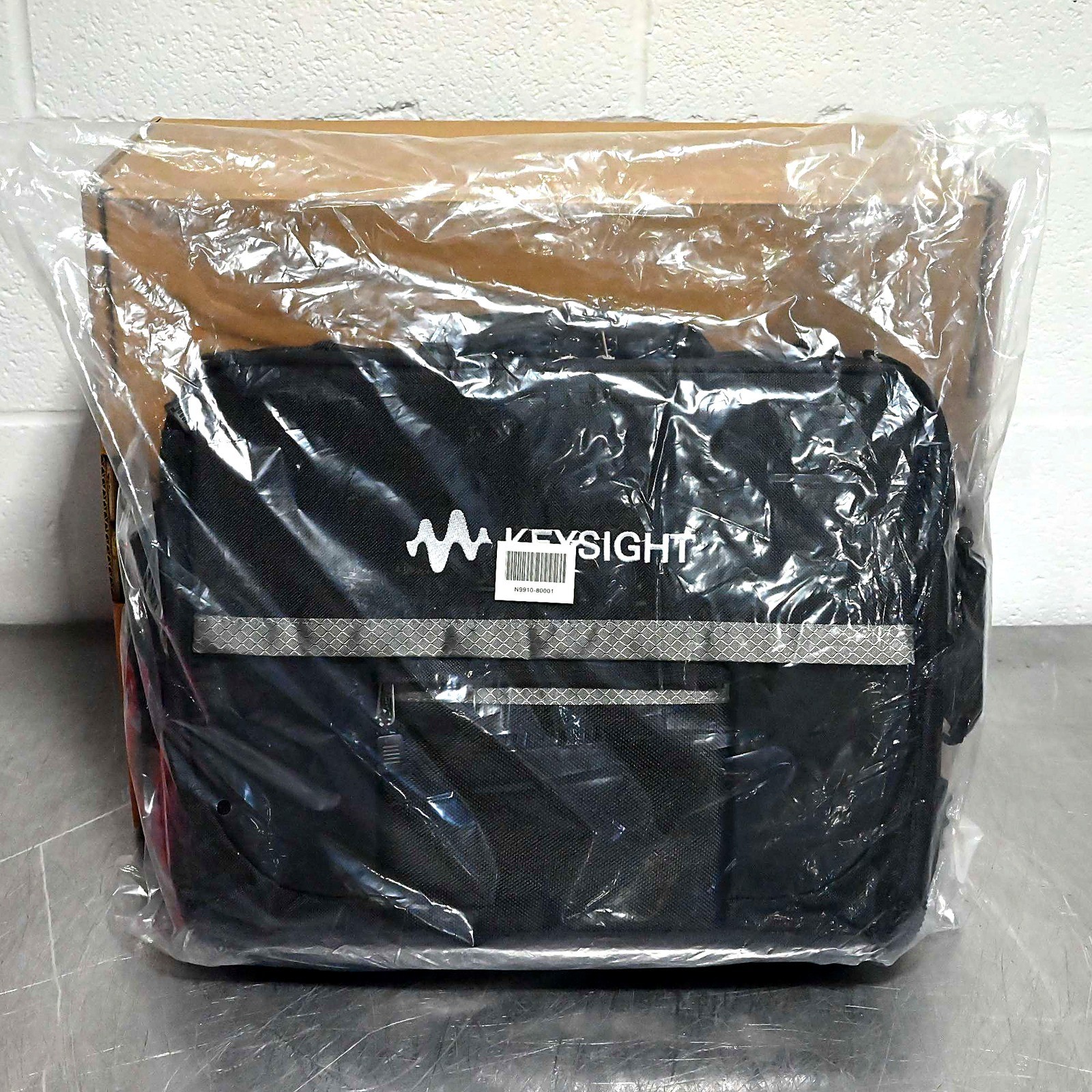

✓ Includes n9913a fieldfox with hand strap and tilt stand, keysight soft carrying case (n9910-80001), keysight ac/dc adapter 15 vdc (0950-5014) and more
✓ Packed with care, insured and tracked

Overview

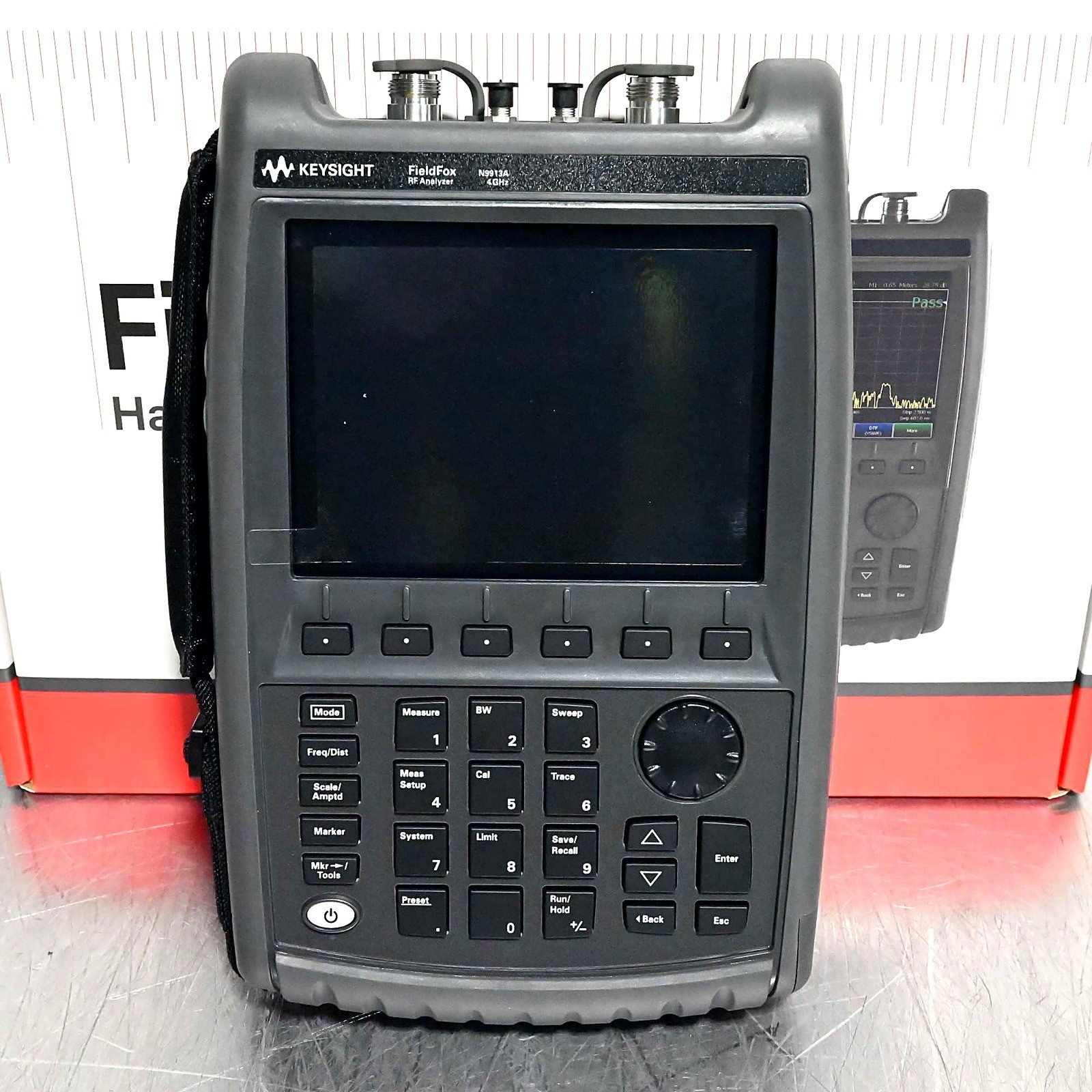

The Keysight N9913A FieldFox is a handheld combination analyzer covering 30 kHz to 4 GHz. This unit is new in box and is configured with TDR cable measurements, a spectrum analyzer, interference analysis with spectrogram, and a variable DC bias source.

Installed options

215 TDR cable measurements: Time-domain reflectometry in cable mode helps locate cable faults and shows their nature.
233 Spectrum analyzer: Adds a spectrum analyzer to the FieldFox for signal measurements up to 4 GHz.
236 Interference analyzer & spectrogram: Adds spectrogram and waterfall displays to help track down intermittent interference.
309 Variable DC voltage source: A built-in DC bias source powers tower-mounted amplifiers and active devices through the test port.

Key specifications

Manufacturer	Keysight
Model	N9913A FieldFox
Frequency range	30 kHz – 4 GHz
Cable & antenna analyzer range	30 kHz – 4 GHz
Cable & antenna measurements	Distance-to-fault, return loss, VSWR, cable loss (1-port), insertion loss (2-port)
Frequency resolution	1 Hz (≤ 5 GHz)
Frequency reference accuracy	± 0.7 ppm (spec) + aging; ± 0.010 ppm when locked to GPS
Data points	101 to 10,001 (arbitrary number settable)
IF bandwidth (VNA mode)	10 Hz to 100 kHz
System impedance	50 Ω nominal; 75 Ω with adapter and cal kit
Measurement speed	850 μs/point (return loss, distance-to-fault)

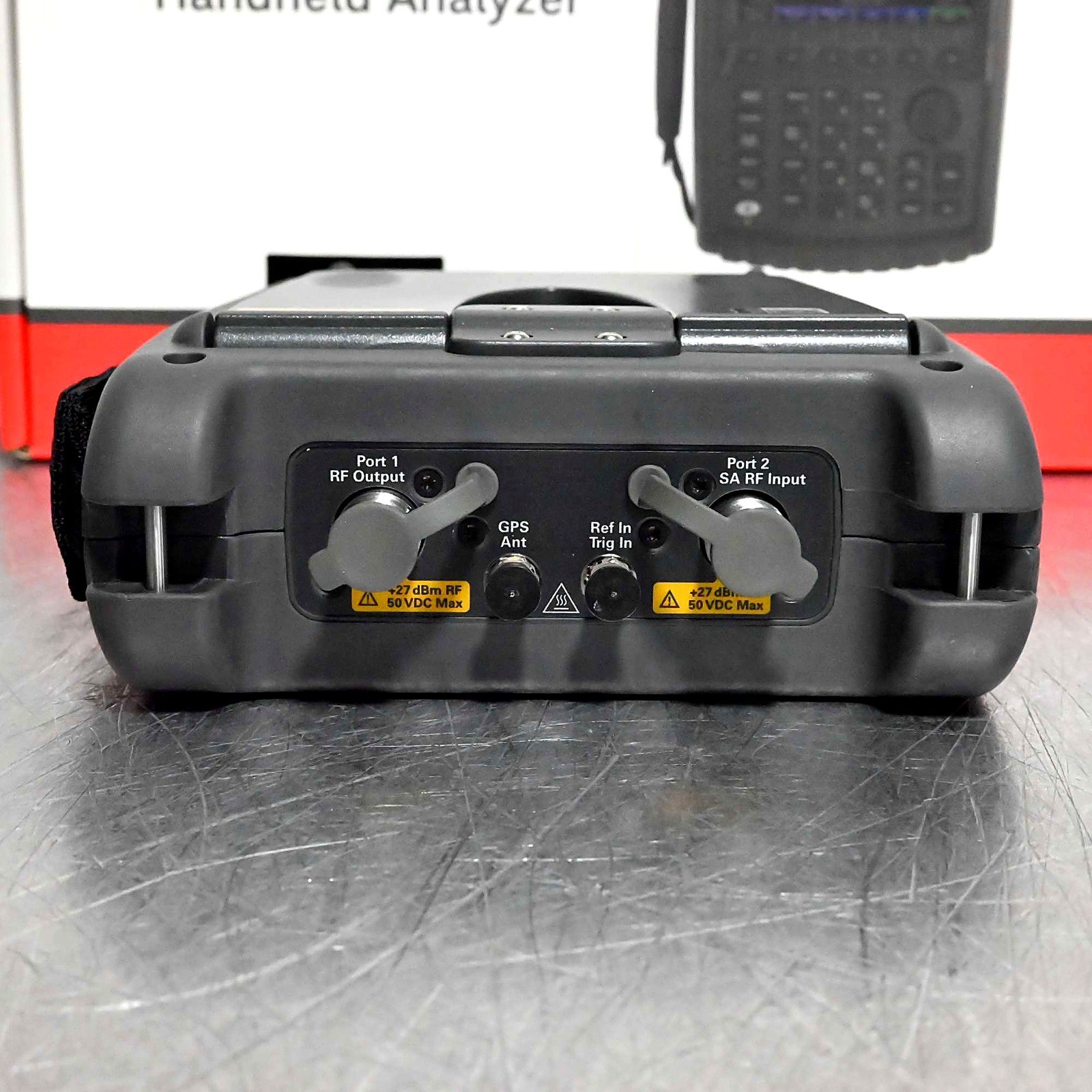

Maximum input level	+27 dBm average CW; ± 50 VDC
Condition	Grade A · like new · New in box
Stock number	EB-77060

Condition & service

Overall	New, open box; opened only for inspection and photos
Packaging	Original Keysight retail box and outer shipping carton

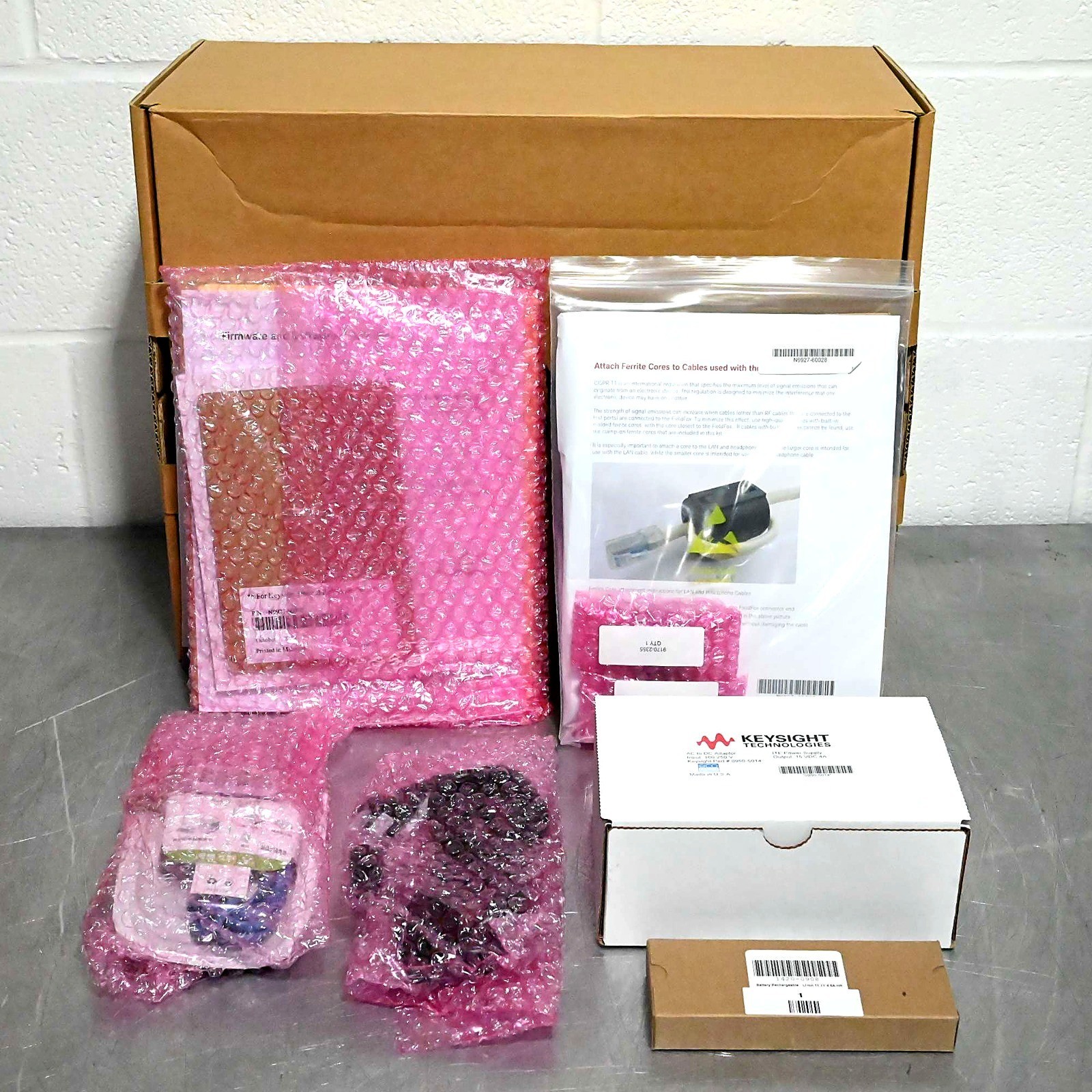

Accessories	Complete original kit, still in factory bags
