Home / Power Meters & Sensors / Keysight / Agilent N1914A EPM
Keysight / Agilent ·
EB-58041Keysight / Agilent N1914A EPM
2 channels · 9 kHz–110 GHz with sensors · −70 to +44 dBm · 400 readings/s · GPIB/LAN/USB
- Like new
- Opt 106 + 200
- 2-channel EPM
- 400 readings/s
$5,000
● In stock · ships from Fort Worth, Texas
Frequency9 kHz – 110 GHz
CalibrationAsk us for current status
ConditionGrade A · like new
Warranty60-day warranty

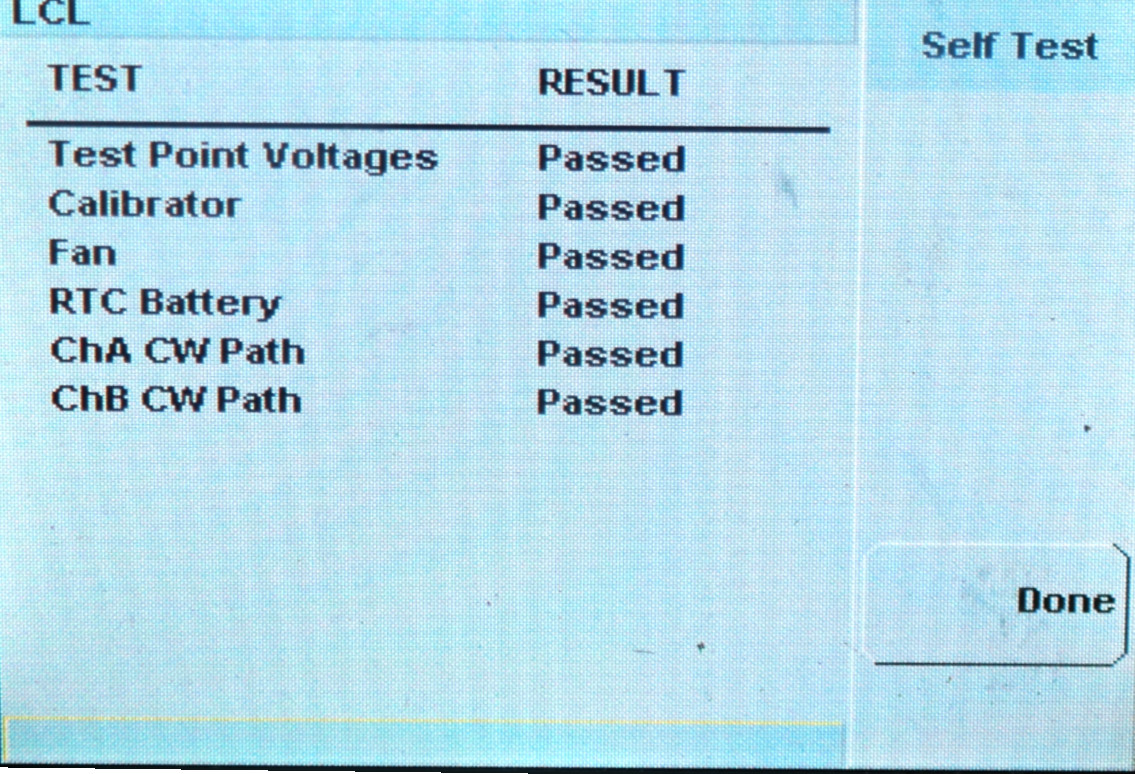

✓ Inspected and function-tested before it ships
✓ Photos are of this exact unit
✓ Includes n1914a power meter (opt 106 & 200), ac power cord, usb cable and more
✓ Packed with care, insured and tracked
✓ Photos are of this exact unit
✓ Includes n1914a power meter (opt 106 & 200), ac power cord, usb cable and more
✓ Packed with care, insured and tracked
Overview
The Keysight / Agilent N1914A is a dual-channel EPM average power meter that replaces the E4418B/E4419B. This like-new, open-box unit has option 106 for USB sensor ports and option 200 for 436A, 437B and 438A code compatibility.

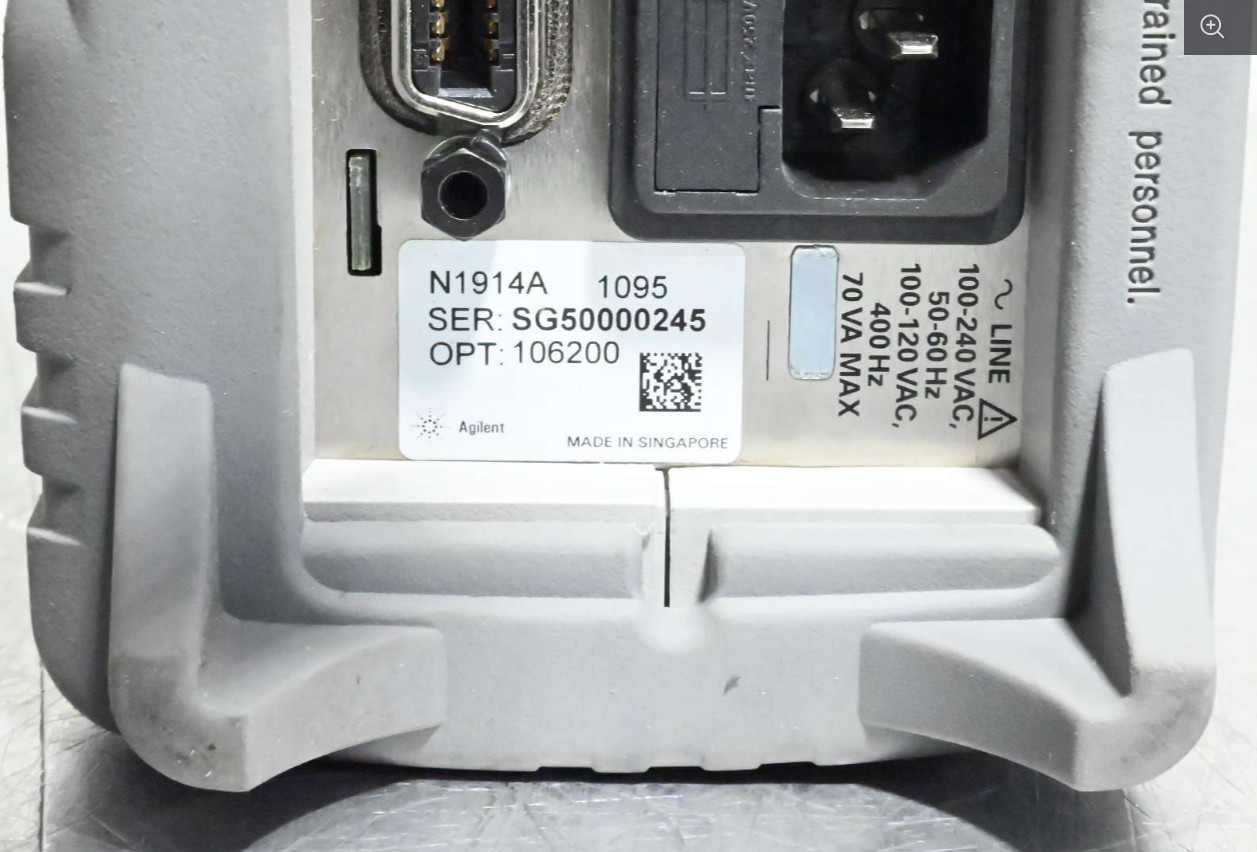

Installed options
106Single/dual-channel average power meter, one front and one rear USB port- Adds USB host ports so you can connect U2000-series USB power sensors.
200Legacy code compatibility (43x)- Lets the meter accept remote commands written for older 436A, 437B and 438A power meters, so existing ATE software can keep running.
Key specifications
| Manufacturer | Keysight / Agilent |
| Model | N1914A EPM |

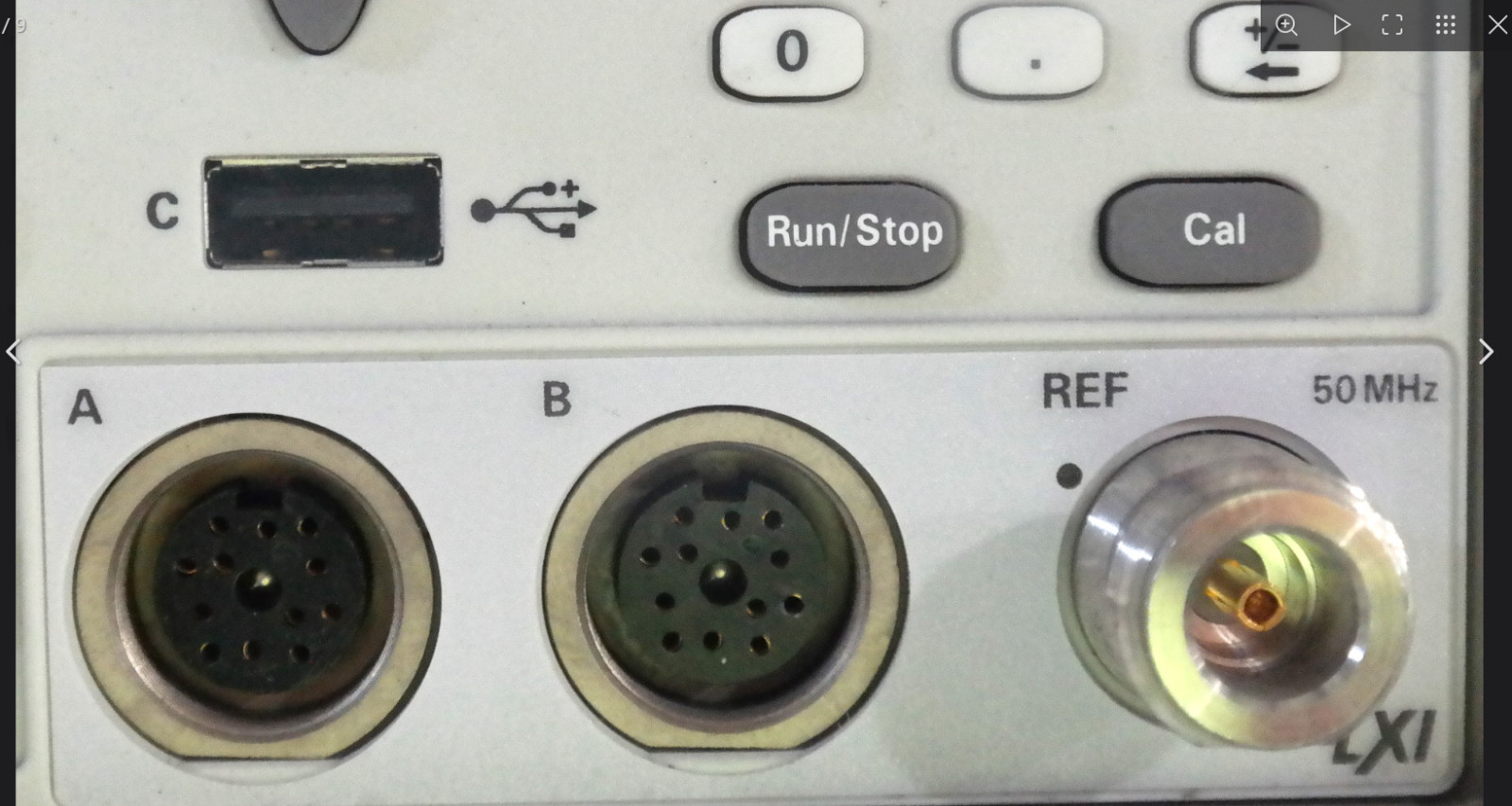

| Channels | 2 (A and B); USB ports with opt 106 add channels C and D |
| Frequency range | 9 kHz to 110 GHz, depends on sensor |
| Power range | −70 to +44 dBm (100 pW to 25 W), depends on sensor |
| Measurement speed | Up to 400 readings/s with E-Series sensors |
| Absolute accuracy | ±0.02 dB (log) or ±0.5% (linear), excluding sensor linearity |
| Display | Color LCD |

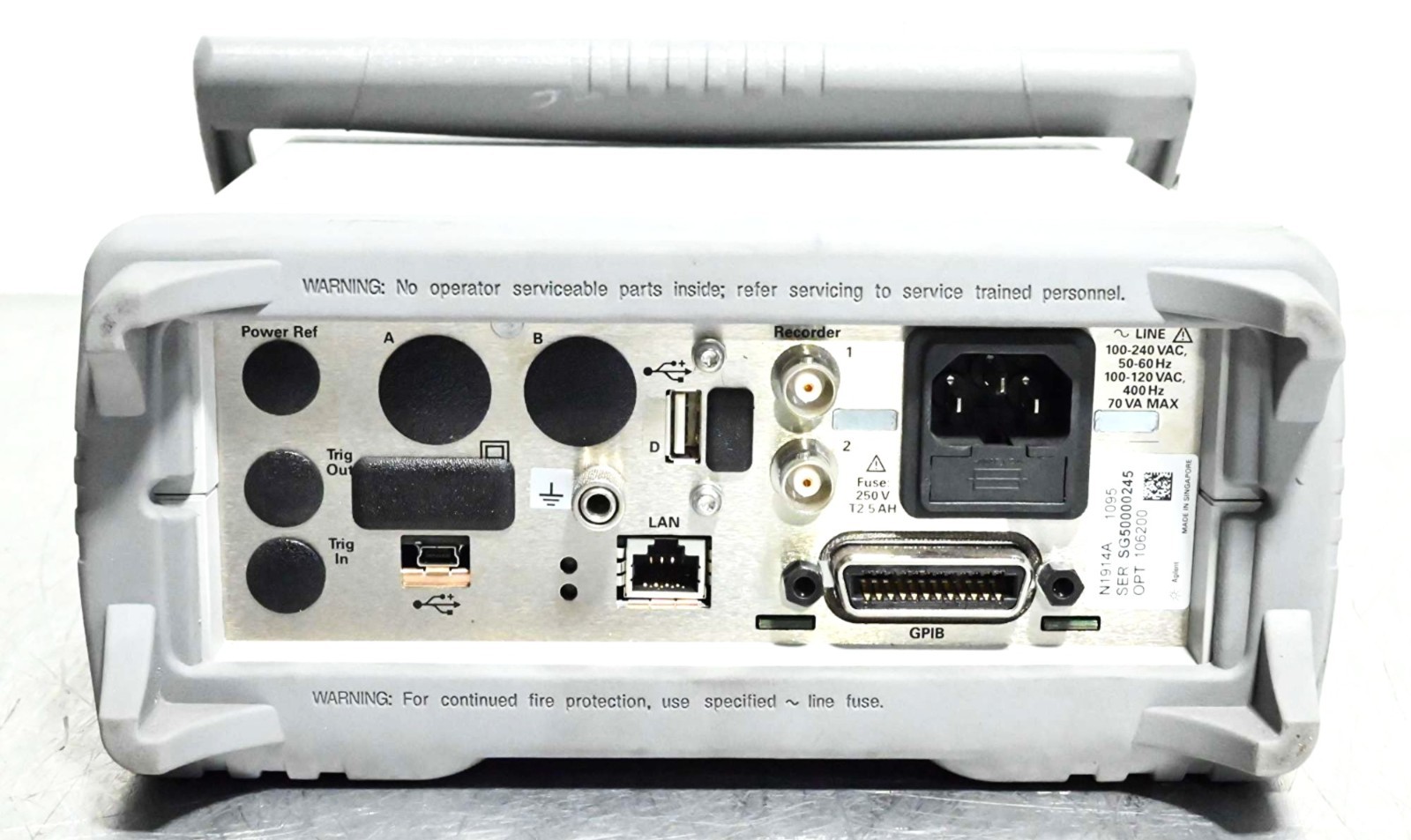

| Remote interfaces | GPIB, USB, LAN (LXI-C), SCPI commands |
| Line power | 90 to 264 VAC, automatic selection, 47 to 63 Hz |
| Condition | Grade A · like new · Like new / open box |
| Stock number | EB-58041 |
Condition & service
| Overall | Like new; minimal signs of use, no damage |
| Display & controls | Color LCD bright; all buttons work smoothly |
| Calibration | Ask us for current status; NIST-traceable calibration available |
What's included
- N1914A power meter (opt 106 & 200)
- AC power cord
- USB cable
- Certificate of conformance / test data
Good to know
- Power sensors are not included. Compatible sensors are available: ask us.
Shipping & warranty
Packed with additional protective packaging and fully insured. Ships from Fort Worth, Texas.
Covered by a 60-day warranty. If anything isn't right, contact us and we'll make it right.
Get a quote or ask a question
About the Keysight / Agilent N1914A EPM (EB-58041). A real person answers, usually within one business day.
